Apogee Digital Interconnects 110 Ohm Digital Cable

  • Write a Review
Product #501846

We're sorry—this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Similar Items:
  • Roland GKC 13-Pin Cable
    Roland GKC 13-Pin Cable $69.00 - $79.00
  • Rapco Horizon Ethercon/Ethercon CAT5E 4P Shielded
    Rapco Horizon Ethercon/Ethercon CAT5E 4P Shielded $49.99 - $399.99
  • Also Consider
    Also consider
        Apogee

        Breakout/interface cables for specific Apogee convertor products.

        A number of specialized breakout and interface cables are available from Apogee. These are typically designed for Apogee converter products in which multiway connectors are used to get a large number of inputs or outputs into a single connector. At the other end of the cable, usually 1m (3.28') in length, will be standard connectors, such as XLRs.

        AES-16-DIGI-IFC:
        For use with: Connecting the AD-16 and the DA-16 to the Digidesign 192 Digital
        Format: AES/EBU In/Out

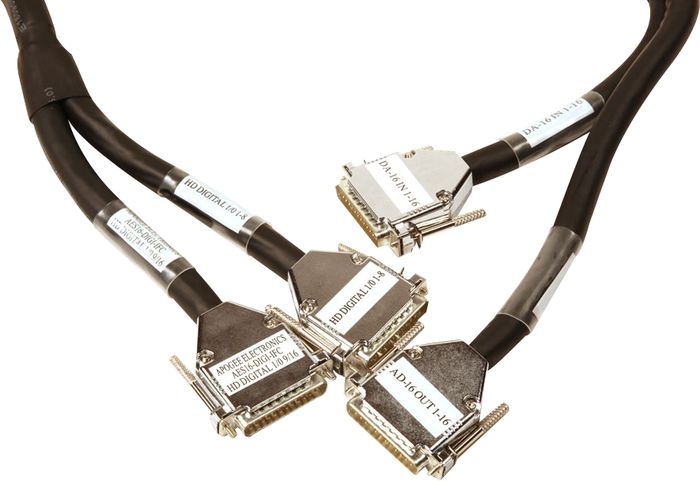

        A 16-channel AES digital Input/Output cable for Digi HD Systems. The AES-16-DIGI-IFC is needed to connect Apogee's AD-16 and DA-16 to the Digidesign 192 Digital. The AES-16-DIGI-IFC is a special cable designed specifically for this purpose. Each connector is labeled to indicate the unit to which it should be connected. There are a total of four DB-25 connectors on this cable. One goes to the AD-16 AES output, one goes to the DA-16 AES input, and two connectors are for the 192 Digital. You will need two the digital option cards for the DA-16 to use 16 channels of AES.

        AES-8-DIGI-IFC:
        For use with: Rosetta 800
        Format: AES In/Out, Yamaha Pin Out
        DB 25 Male To 4-XLRM/4XLRF
        An 8-channel AES digital Input/Output Cable for Digi HD Systems. Eight channel AES3 input/output connection with 4 Neutrik XLR male and 4 Neutrik XLR female connectors to a DB-25 multipin connector with a metal shell for improved grounding and RF rejection. This cable provides 8 channels of AES input and output as per the AES standard. Provides 4 AES/EBU XLR inputs and 4 AES/EBU XLR outputs to a DB-25 multipin connector for Rosetta 800 and any other device that supports the Yamaha 8 channel digital In/Out wiring format.

        AES8-IFC:
        For use with: Rosetta 800
        Format: AES/EBU In/Out
        Eight channels of AES/EBU input/output connection with 4 Neutrik XLR male and 4 Neutrik XLR female connectors to a DB-25 multipin connector with a metal shell for improved grounding and RF rejection. This cable provides 8 channels of AES input and output as per the AES standard. Thumbscrews are 2.6mm. Provides 4 AES/EBU XLR inputs and 4 AES/EBU XLR outputs to a DB-25 multipin connector for the Rosetta 800 and any other device that supports the Yamaha 8 channel digital In/Out wiring format.

        AD16-AES-IFC:
        For use with: AD-16X
        Format: AES/EBU In/Out
        Sixteen channel AES/EBU output connection with 8 Neutrik XLR male connectors to a DB-25 multipin connector with a metal shell for improved grounding and RF rejection. This cable provides 16 channels of AES output as per the AES standard. Thumbscrews are 2.6mm. Provides 8 AES/EBU XLR outputs to a DB-25 multipin connector for the AD-16X. Provides 16 channels of AES/EBU output.

        DA16-AES-IFC:
        For use with: DA-16X
        Format: AES/EBU In/Out
        Sixteen channel AES/EBU input connection with 8 Neutrik XLR female connectors to a DB-25 multipin connector with a metal shell for improved grounding and RF rejection. This cable provides 16 channels of AES input as per the AES standard. Thumbscrews are 2.6mm. Provides 8 AES/EBU XLR inputs to a DB-25 multipin connector for the DA-16X.


        Got to many cables coming in and out of your Apogee converter? Pick up one of these breakout/interface cables to organize that mess into one connector.
