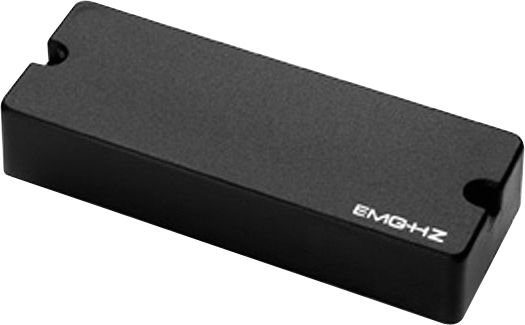

EMG 40HZ Passive 5 String Bass Pickup

  • Write a Review
Top Rated
  • MSRP:
  • Your Savings:
    - $20.99
  • Your Price:

In Stock & Ready To Ship

+ Add to Wish List
See All EMG 5+ String Bass Pickups

The 40HZ for 5-string bass features a dual-coil design for low noise and plenty of output. Using EMG's "CS" design (Ceramic and Steel), this pickup has the punch and fullness of older passive designs along with added brightness for a better defined tone. EMG-HZ bass models feature Solid "Bar" Poles that cover the entire width of the strings so any string layout can be used. Using an Extended Series housing, it is a direct replacement with EMG's entire "Active" pickup line. All HZ Pickups have EMG's exclusive 5-wire Quik-Connect output allowing any number of wiring combinations, and are fully shielded for a minimum of noise. String grounding is recommended to further decrease noise.
Package Includes: Mounting screws and springs.

Call or click today to order.


40HZ Passive 5 String Bass Pickup Specifications:

  • Logo Color: Silver
  • Inductance (Henries): 3.15
  • DC Resistance (KOhm): 9.6
  • Resonant Frequency Hz (1): 2600
  • Resonant Frequency Hz (2): 4400
  • Impedance @ Resonance (KOhm): 51.5
  • Recommended String Width: 3.125 inches
  • (5 string or narrow 6-string)
Customer Reviews

Review Snapshot®

by PowerReviews
EMG40HZ Passive 5 String Bass Pickup

(based on 3 reviews)

Ratings Distribution

  • 5 Stars



  • 4 Stars



  • 3 Stars



  • 2 Stars



  • 1 Stars



Reviewed by 3 customers

Sort by

Displaying reviews 1-3

Back to top


40HZ Passive 5 String Bass Pickup

By Old Jazz Player

from hillsdale,wy

About Me Professional Musician

Verified Buyer


  • Easy To Use
  • Functional
  • Good Quality
  • Improves Sound


    Best Uses

      Comments about EMG 40HZ Passive 5 String Bass Pickup:

      Put this pup in an twenty year old six string bass that I built .Makes it sing.
      Old Jazz Player

      Comment on this review


      These pickups are amazing!

      By Anonymous

      from Undisclosed

      Comments about EMG 40HZ Passive 5 String Bass Pickup:

      These are an amazing brand of pickups! The best sounding ones that I've ever used! They sound great and give a great tone! I highly recomend these pickups to any bassist looking for great pickups!

      Comment on this review

      (2 of 2 customers found this review helpful)


      EMG Changed My Life Forever

      Comments about EMG 40HZ Passive 5 String Bass Pickup:

      I recently replaced the factory pickups in my Gibson Thunderbird Studio 5-String with a pair of these with a two volume one tone set up. The difference has been like night and day. The pickups are sharp all the way down to the low b, dead silent when you're not playing, and the range of tones I get out of the pair is astounding. Having the one tone control let's me go all the way from a flat smooth jazzy sound up to so much pop and grit it almost sounds like it's being played with a distortion effect. I chose the passive configuration at first because my guitar didn't have room for me to put in a battery without some serious routing, but it eneded up being the right decision anyway because I can't tell any difference in the sound. I would have gladly paid twice as much as I did for these pickups, and I will never buy a bass without emg's allready in it or a pair of these ready to go in after purchase again.

      Comment on this review
