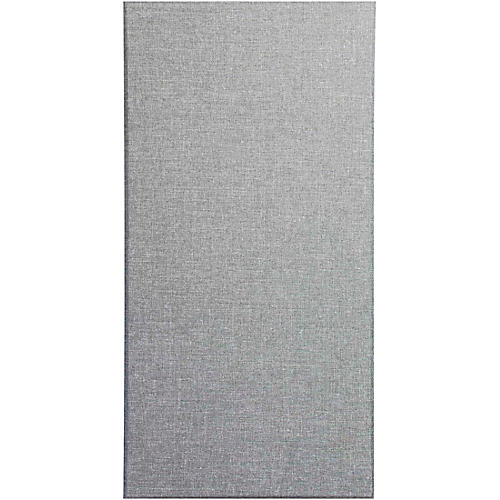

Primacoustic Broadway Broadband Panels with Beveled Edge 2X24X48
- Write a Review
Primacoustic Broadway Broadband Panels are attractive acoustic absorbers that are easy to install. Broadway Panels are a great solution for acoustic ...Read More
Great looking, high-performance acoustic panels control primary reflections, flutter echo, and standing waves.
Primacoustic Broadway Broadband Panels are attractive acoustic absorbers that are easy to install. Broadway Panels are a great solution for acoustic treatment where you want maximum control over primary reflections, need to eliminate flutter echo, and reduce standing waves.
Made from high density 6 pound per cubic foot high density fiberglass, these larger 24"x48" absorptive panels have an increased panel surface to maximize absorption. This makes Primacoustic Broadway Panels particularly effective in larger installations and in rooms where the reverberant field and echo is excessive. Broadband Absorbers can be butted-up for complete wall coverage and maximum absorption, or spread in an array for a sense of 'air' or natural ambiance.
The large panel design also lends itself to other installations: To control bass in studio and home theatre, thicker 2" and 3" Broadband Absorbers are combined with Corner or Offset Impalers to create an air cavity in behind the panel. For general office noise, thinner 1" panels are easily flush mounted on the wall surfaces using Surface impalers to attenuate the reverberant field. These same panels offer an effective 'upgrade' for drop ceilings as the 2 foot x 4 foot panel size ideally suits standard T-bare grid layouts. This can be particularly effective in commercial installations such as noisy offices, call centers and for boardrooms that need added sound control.
Primacoustic Broadway is a range of high performance acoustic panels designed for use in the most demanding commercial applications where performance and safety are of utmost concern.
Broadway panels are 4 to 5 times denser than typical acoustic foam resulting in greater sound absorption. Each panel is fully encapsulated with micromesh and features resin hardened edges. This retains the minute fiberglass strands while the 'sharp edges' accentuate the contrast in more demanding architectural installations. For greater flexibility, four standard panel sizes are available all of which may be ordered in varying thicknesses. The panels are then covered in an acoustically transparent fabric and offered in three 'neutral' colors: black, beige and grey. Panels may alternately be covered with a second fabric to suit those with greater artistic flare!
Installation is easy with a choice of impaling clips that screw to the wall onto which the panels are hung. Options include standard surface mount impalers; offset impalers that add an air space behind the panels to increase bass performance; and corner impalers that turn a typical Broadway panel into a serious corner bass trap.
Broadway panels are also employed in the construction of various Primacoustic room kits, bass traps, and cloud ceiling systems. Applications include recording studios, broadcast facilities, home theatre, cinema, classrooms, office and industrial noise control. Best of all, they are safe to use. Broadway panels have been tested to meet the most stringent Class-1 fire safety specifications for use in public areas. This is further supported with independent laboratory tests to ensure the acoustic performance meets the most demanding design specifications.
- 6 panels per box
- High density absorptive panels
- Effectively controls primary reflections
- Easy to install on practically any surface
- Attractive 'Roman Pillar' design in choice of colors
- Fabric covered acoustic panels with hardened resin edges
- Made from high density 6 lb per cubic foot fiberglass
- Broadband absorption with various sizes and depths
- Class-1 fire rated for safety and ASTM tested performance
Professional acoustic treatment is key for great mixes! Call or click today to order.
Reviewed by 1 customer
Displaying review 1
Comments about Primacoustic Broadway Broadband Panels with Beveled Edge 2X24X48:
Mike a no absorber room. Noise floor was -43 db. Also applied a source of pink noise and miked it. After the installation of 3 2/4 panels spaced 6 inches on one wall and exactly opposite. I did the same. Ran the tests again. From 10k up I got a taped down to -120db with a base line of -60 db. So I got an overall drop of 17 db. That ones a little hard to understand but I was very impressed with the test from 10k to 20k. Absoulutely kicked butt. I also ran the pink noise tests again and found the same results, give or take a small amount due to mike performance. I have several of the 2/2's ordered and just hope they do something with the mid's. Will let you know. Stx Independent Recording Corp.
