MF MD HG Memorial Day Coupon EXTENDED 05-31-16
Best Seller
Zoom Logo
SKU
H86818 000000000

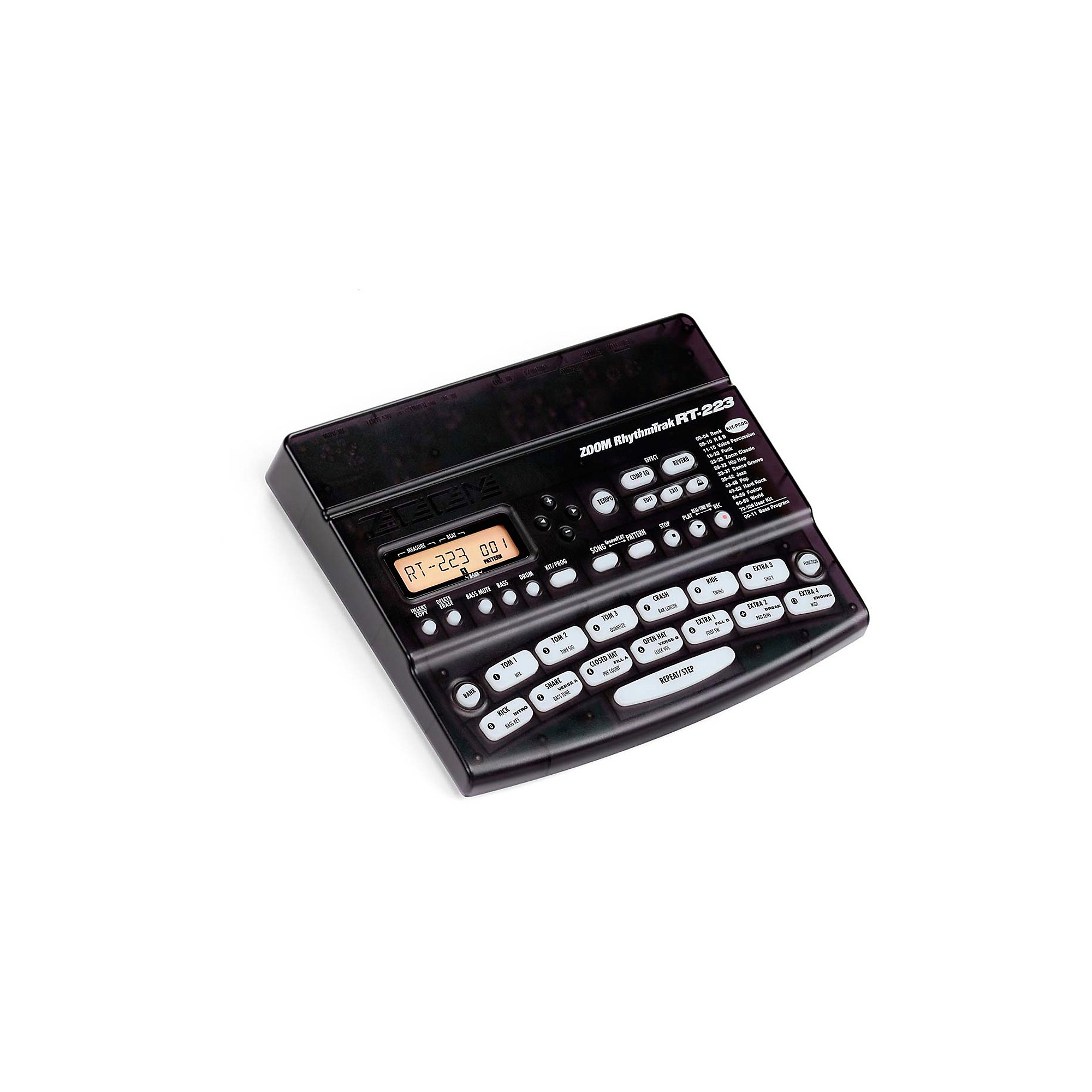

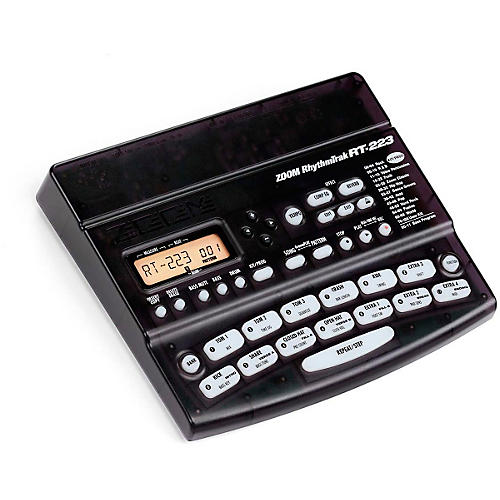

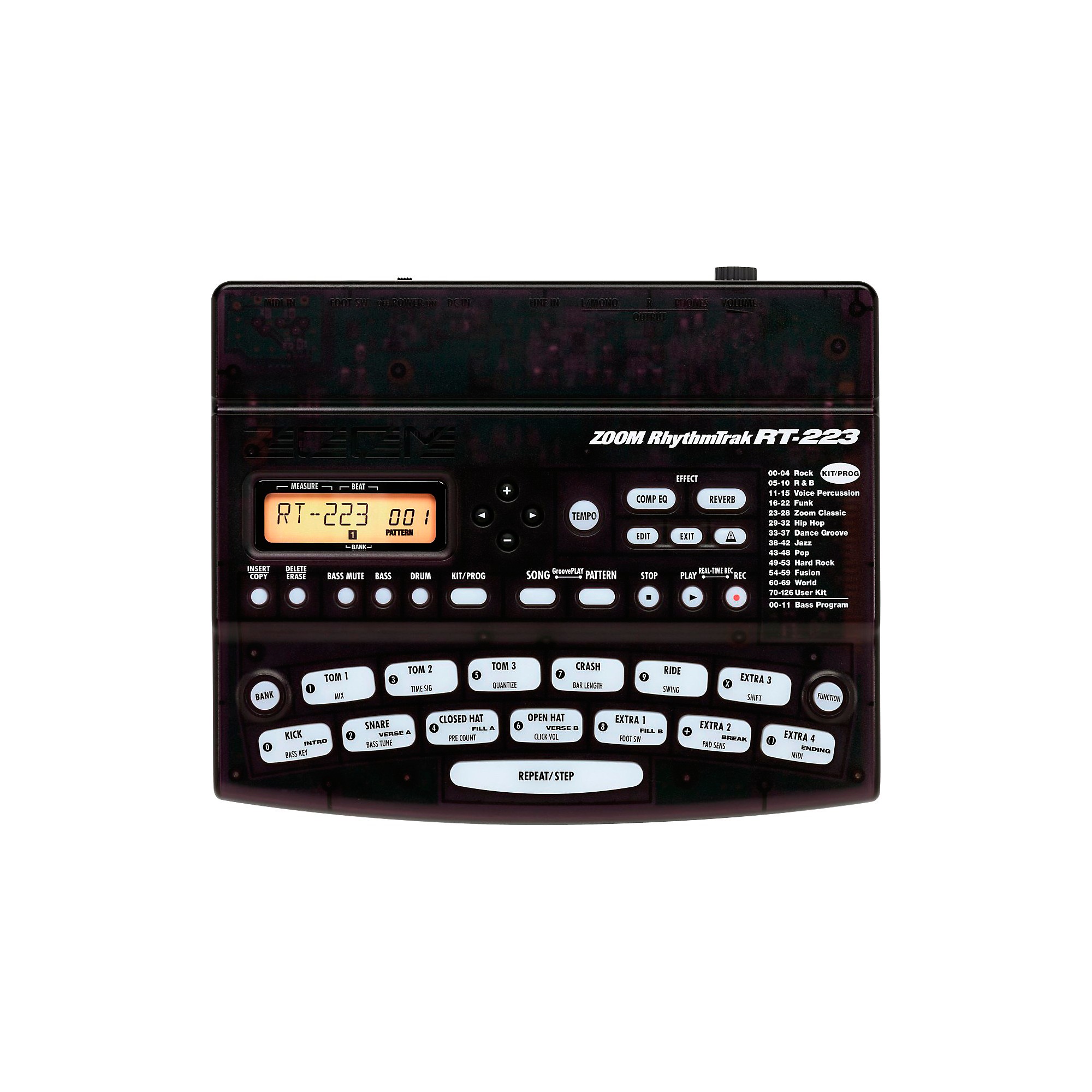

Zoom RhythmTrak RT- 223 Drum Machine

  • Write a Review

The RhythmTrak Drum Machine from Zoom is ready to groove right from the start. There are 70 different drum kits built-in featuring both acoustic and ...Read More

In Stock & Ready To Ship

Gold Coverage: (What’s This?)
  • List:
    $187.49
  • Shipping (48 Contiguous U.S. States)
    FREE
  • Your Price:
    $14999
  Add to Cart
Add to Wish List
See All Zoom Drum Machines
Musician's Friend Backstage Pass

Earn up to 1,200 in points.

OVERVIEW

Low-profile drum machine with 70 different kits from rock drums to voice percussion.

The RhythmTrak Drum Machine from Zoom is ready to groove right from the start. There are 70 different drum kits built-in featuring both acoustic and processed analog sounds, ideal for rock, R&B, funk, jazz, hip hop and electronic music styles. In addition to these genres you will find kits ranging from ethnic to voice "beat box" percussion, where you can create advanced rhythm tracks, and try techniques like replacing a kick, snare, or other instrument sound, and express them as a human voice.

INCLUDED DRUM KITS:

• 5 Rock Kits
• 5 Dance Groove Kits
• 6 R&B Kits
• 5 Jazz Kits
• 5 Voice Percussion Kits
• 6 Pop Kits
• 7 Funk Kits
• 5 Hard Rock Kits
• 6 Zoom Classic Kits
• 6 Fusion Kits
• 4 Hip Hop Kits
• 10 World Kits

Create your own drum kits
All drum kits consists of 3 banks, each with 13 pads for a total of 39 unique samples per kit. Sound sources can be freely selected and assigned to the pads with the ability to fine-tune parameters such as pitch, level, and panning to create your own amazing custom kits. The RT-223 has room to store up to 127 of your own personally programmed kits.

Twelve built-in bass sound sources
Choose from electric bass styles such as Pick, Finger, and Slap, or select Acoustic Bass, Synthesizer Bass, or one of the other bass sources, 12 in total. To create a bass line, you can play the pads with assigned chromatic pitches just like a keyboard. A dedicated switch quickly lets you mute the bass sound at any time.

Use onboard effects to control EQ and ambience
Use the COMP EQ effect to have complete control over a kit's tonal quality, or add depth and dimension to the overall sound simultaneously with the REVERB effect. These effects can also be applied to bass sounds, and up to 40 settings for each effect can be stored as patches, so you can easily recall them for future projects.

COMP EQ effect
The RT-223 incorporates a multi-band compressor with independent settings for each frequency band. By applying the effect to just the right frequency range, you can tighten up the kick drum, give snares and toms more body, or perform other mastering tricks to spruce up the sound of a drum kit. There's also a resonance filter and Low-Fi effect built-in that are essential tools for some styles of dance music.

REVERB effect
There are four different types of reverb including Hall, Room, Spring, and Plate that can help you set the right space for your drums. In addition to the reverb settings, there is also a Chorus, Flanger, and Delay effect that will further shape your sound. For example, you could apply Gate Reverb to the snare sound only, or place the entire drum kit in a hall. Flanger and Delay can be synchronized to the tempo in measure or beat units. Create Flanger with 4-measure modulation or a dotted eighth note Delay.

440 preset patterns cover all musical styles
From Rock, Jazz, and Funk to Club and House, the RT-223 comes with 440 playing patterns that can be used straight away. A large number of phrase variations including intro, fill-in, and ending patterns are also provided. By simply combining these, you can whip up a backing rhythm that delivers the goods.

Touch-sensitive pads let you build original patterns
Programming your own patterns is a snap, thanks to the touch-sensitive drum pads. The RhythmTrak records not only your timing, but also the dynamics of your finger work. You can create and store up to 511 patterns. The process is made even easier through visual cues provided by the self-lit pads.

Quickly create original songs with FAST method
You can combine any number of drum patterns in any order to create a song. In addition to step input where you select patterns one by one, the RT-223 also offers the innovative FAST (Formula Assisted Song Translator) method. With FAST, you use symbols such as +, ‚àí, and brackets "()" to specify the pattern lineup. This is especially useful for songs with repeated patterns. To play pattern number 12 eight times and then pattern 25 sixteen times, you simply enter "12 x 8 + 25 x 16". By enclosing this in brackets and adding a multiplication factor such as "( ) x 4", the entire sequence can be repeated. The RT-223 lets you store as many as 100 songs for automated backing.

Groove play mode lets you play patterns like a DJ
Assigning patterns to pads allows you to trigger patterns simply by tapping the pads. This is great for live performances and for DJ use.

User-friendly design for simple operation
The RhythmTrak is a dedicated rhythm machine designed to make rhythm programming truly easy. You can take the shortest possible route from idea to finished song. No need to boot up a computer and start DAW software, or laboriously read sound source data into a sampler. Most controls on the top panel of the RT-223 have only a single function, and there are no complicated multi-level menus. The backlit LCD shows all-important information at a glance.

Metronome function for simple repeat practice
The built-in metronome with its dedicated key is handy for simple repeat practice. In addition to the standard 2 - 8 beat, you can also use 6/8 beat, 7/8 beat, 2+3 beat, 3+4 beat and other mixed beat settings.

MIDI IN connector and external line input
The MIDI IN connector allows synchronized play with an external device. By receiving note messages, the RhythmTrak can serve as drum sound source module in a MIDI-based system. The line input accepts the signal from a CD player or other line-level source, or from a guitar or bass via an effect. Seamlessly integrate the RT-223 into any session.

2-way power from size AA batteries or AC adaptor
The unit will operate continuously for eight hours on a set of four IEC R6 (size AA) batteries. Whether on stage or during rehearsals in the studio, the RhythmTrak is always ready. For extended studio work, an AC adaptor can also be used.

FEATURES
  • 70 Built-in drum kits featuring both acoustic and processed analog sounds
  • Create your own custom drum kits
  • 12 different built-in bass sound sources
  • Onboard effects like reverb, chorus, flanger, EQ and delay help shape your sound
  • 440 preset drum patterns included covering all types of musical styles
  • Touch-sensitive pads record timing and dynamics of your finger work
  • Unique FAST method helps quick arrangements using mathematical symbols
  • Assign patterns to pads for live performance and DJ uses
  • User-friendly stand-alone design, no need to boot up a PC or start DAW software
  • Metronome function for simple repeat practice
  • MIDI IN connector and external line input
  • 2-way power from size AA batteries or AC adaptor

Order now, and bang on your drums all day.

SPECIFICATIONS

RhythmTrak RT- 223 Drum Machine

  • Drum Kits: 127(Factory: 70, Blank: 57)
    Drum Sounds: 213
    Bass Programs: 12
    Rhythm Patterns: 511(Factory: 440, Blank: 71)
    Songs: 100
    Maximum Notes: 32,000
    Polyphony: 18
    Resolution: 96PPQN
    Tempo: 40ˆ’250BPM
    Sampling Frequency: 44.1kHz
    D/A Conversion: 24bit 8times over-sampling
    Drum Pads: 13(touch sensitive, self lighted)
    MIDI: IN
    Control Input: Foot Switch
    Display: 128-segment custom LCD (with backlight)
    Line Input: 1/4" stereo phone jack (Input impedance: 10kÎ, Rated input level: ˆ’10dBm)
    Line Output (L/MONO, R): 2 x 1/4" phone jack (Output Impedance: 1kÎ or less, Rated output level: ˆ’10dBm)
    Headphone Output: 1/8" stereo phone jack, 50mW into 32Î load
    Power Requirements: AA size (LR6) battery x 4 or AC adaptor DC9V/300mA / Center minus type (AD-0006 recommended)
    Battery Life: Approx. 8 hours (with alkaline batteries)
    Dimensions: 217.9 (W) x 182.6 (D) x 35.5 (H) mm
    Weight: 680g (without batteries)
Reviews
Loading....

Review Snapshot

by PowerReviews
ZoomRhythmTrak RT- 223 Drum Machine

3.4

(based on 13 reviews)

Ratings Distribution

  • 5 Stars



    (5)

  • 4 Stars



    (3)

  • 3 Stars



    (0)

  • 2 Stars



    (2)

  • 1 Stars



    (3)

67%

of respondents would recommend this to a friend.

Pros

  • Good quality (7)
  • Easy to use (6)
  • Functional (6)
  • Improves sound (3)

Cons

No Cons

Best Uses

  • Practicing (7)
  • Back-up (5)
    • Reviewer Profile:
    • Experienced (6), Professional musician (6)

Most Liked Positive Review



ZOOM RT-223, It's a KEEPER!

Do you get the feeling that I love this machine? After I got this machine I dumped my DR. It doesn't come with a Waltz time but, go to page 22 step 7...Read complete review

Do you get the feeling that I love this machine? After I got this machine I dumped my DR. It doesn't come with a Waltz time but, go to page 22 step 7 and punch the function tab then the TIME SIG button (TOM 2) and change from 4 beats to 3 beats! The Metronome sounds, then tap in you waltz time using the drum keys.. The foot switch is sold separately I had to search online to find one. You won't find an easier Drum Machine to operate for that money! Be sure to read the manual cover to cover as it will put you ahead on the learning curve. The manual is well written and the type is large enough to read comfortably I had just about given up on a simple to run Drum Machine and I'm sure glad I found this ZOOM RT-223 at musicians friend.. WOW! A little plug there. *Smile*

VS

Most Liked Negative Review



Buy the Alesis

I have an Alesis SR16 and an even older Yamaha RX17 which I'm still using. Thought I'd try the Zoom unit because of the bass line and some newer sounds. This unit is not...Read complete review

I have an Alesis SR16 and an even older Yamaha RX17 which I'm still using. Thought I'd try the Zoom unit because of the bass line and some newer sounds. This unit is not intuitive and very difficult to program the bass line. Some patterns are usable, some not, the latin and jazz patterns are junk. By the time I figure this thing out I'll be too old to play. I won't be recommending this to a friend, I'll be giving it to him.

Reviewed by 13 customers

Displaying reviews 1-10

Back to top

Previous | Next »


1.0

RT-223 additional comments

By ejm

from California USA

About Me Experienced

Comments about Zoom RhythmTrak RT- 223 Drum Machine:

Good stuff:
User patterns = over 400. YAY!!!!!!!!
I really like this. Note that you can erase the pre-programmed patterns and replace them with your own if you want.
Song Position Pointer:
I think this is what it's called. This makes it a little easier to work with in my application. (If you are syncing this machine live, you are still out of luck.) You can start your Master device at any point in the song, and the RT-223 somehow knows where to go and starts at the right location.
Unless I missed it, this feature is not highlighted or pointed out anywhere in the documentation.

Bad stuff:
Deleting multiple patterns/measures/steps in the song:
You can't delete a group of patterns/measures/steps. You can only delete them one at a time. This is a minor inconvenience.

Back up of patterns/songs to an external device:
There isn't a way. You're on your own to figure out your own methods for doing it.
To be fair, most drum machines I've seen also don't have this, and it is a great mystery why.

Pads light up when playing in pattern mode, but NOT in song mode:
It would be nice if the pads always were lit up as the sounds are produced. My old Zoom RT-123 doesn't have this issue (the pads light up no matter which mode you're in). This makes it easier to edit things later.

When in song mode, if you hit one of the pads it doesn't sound. Instead, it goes to some other mode of operation. Another, at least for me, bizarre design decision. On my old RT-123, if I have a song playing, and there is a section where I want to add handclaps (for example), I can just hit the pad while the song is playing. I don't need to create another pattern like the one being used, and add handclaps to it. Not so with the RT-223.

In short, IMO, Zoom must have had the "B" team working on the design of the RT-223.
Or they must have not been aiming this at people who want to replace a real drummer with a realistic simulation.

Comment on this reviewHelp Icon


1.0

Does not keep time using the MIDI Sync clock feature

By ejm

from USA

About Me Experienced

Pros

  • 400 user programmable slots!!!!!!!
  • Easy to program patterns/songs
  • Sounds good

Cons

  • MIDI Sync clock interface not consistent
  • Not Functional

Best Uses

  • Practicing

Comments about Zoom RhythmTrak RT- 223 Drum Machine:

This has been a very frustrating experience, using it the way that I do, and I cannot rate this piece low enough. I'll try to sum it up for you.

If you are using this machine to jam along with and practice, and are not using the MIDI SYNC Clock, it will be fine. I like the sounds, features, programmability, and the fact that it has roughly 400 user pattern slots.
HOWEVER, if you are using this machine with the MIDI Sync Clock, BE FOREWARNED. It most likely will not work correctly. It will drift out of time with other instruments that are also sync'ed.

I used to do recordings where, listening back, the timing between the drums and other instruments would seem out of sync on some days but not others. I used to think it was me. Then one day, out of the blue, I heard the drum machine drift out of sync, almost like it missed a clock or something. AHA!!!!!

By that time my machine was out of warranty. I contacted Zoom customer service, and the guy that I dealt with was super helpful and very fair. He exchanged my machine with another one (basically for free). Alas, it had the same problem.

I ultimately did WAY more testing/troubleshooting on this problem than I should have. (Zoom should pay me for looking into this.) I tried different drum machines, different clock sources, etc etc etc. It always points back to one item: the Zoom RT-223. To me, this points to a potential design issue.

I then wrote to Zoom Engineering about this problem over a year ago. I have heard back from...........No One. I don't know if they ever looked into it, or if they did and didn't verify the problem, or if they did and actually verified the problem, or whatever. If there is not a problem, I would assume that they would have notified me.

This MIDI sync circuitry/function has been in existence for over 30 years. Their old ancient RT-123 machines worked fine. How this newer "improved" RT-223 got this basic circuit messed up is a mystery. If there was a fix I'd jump on it.

Comment on this reviewHelp Icon


5.0

Great quality & variety of sounds!

By Sharae

from South Dakota

About Me Novice

Verified Buyer

Pros

  • Functional
  • Good Quality
  • Improves Sound

Cons

    Best Uses

    • Backup
    • Practicing

    Comments about Zoom RhythmTrak RT- 223 Drum Machine:

    Nice sound quality and love the variety of drum, percussion and bass guitar sounds available...like the option to create my own patterns and songs in my chosen time signatures in addition to a huge variety of pattern presets & drumkits already programmed into this compact little box! Wish there was external memory port (SD card) and auxiliary outlet for mp3. Wish there were some 3/4 & 6/8 time signature presets available though, as I do alot of country shuffle, waltz, &ballads in this timing. Otherwise, a really great hardware drum machine for the price point!

    Comment on this reviewHelp Icon


    2.0

    Limited Functionality but can make it work.

    By Retired in NJ

    from Howell, NJ

    About Me Experienced

    Verified Reviewer

    Pros

    • Easy To Use
    • Good Quality

    Cons

    • 439 presets - can not change time signature

    Best Uses

      Comments about Zoom RhythmTrak RT- 223 Drum Machine:

      As a player of 60's -70's classic rock, blues, folk, country and pop I found very few simple basic rhythms (like a Stones basic shuffle) in the presets. Most of the presets are complex patterns, lots of hip hop, beat, dance, techno, etc. Also all the presets seem to be in 4/4 time and the time sig cannot be changed on any preset or a copy of any preset you store as a user pattern. That basically leaves real time tapping in of your pattern from the 13 pads, which is quick and easy to do.

      The metronome cannot be muted. All but the first metronome pattern (a basic 4/4) are complicated and distracting as you try to tap in your rhythm. I got around this by setting the metronome to the basic 4/4 and setting the tempo to 40bpm. Then I used each beat as the first beat (or the 1) of whatever pattern I tapped in (eg. creating a 120 tempo for 3/4 time).

      If you create a pattern with a drum kit, you can't overlay more beats from a different kit, because when you change to a different kit then all the previously recorded beats change to the new kit's instruments.

      The list of the 439 patterns in the manual doesn't list the pattern time signatures. From what I could tell, nearly all (if not all) are 4/4.There is no documentation of what 13 instruments are in each of the 69 kits.

      I basically tap in my own rythms for a few measures and record them on my zoom 16 track recorder for 10 or 12 minutes. Then I can edit the tempo higher or lower with my PC audio editor. This is better than creating the whole drum track from samples on the PC, but not as functional as I hoped this machine would be.

      Comment on this reviewHelp Icon


      5.0

      We three different drum machines and this one is awesome

      By Praise Band

      from Hibbing,Mn

      About Me Experienced

      Verified Buyer

      Pros

        Cons

          Best Uses

          • church service
          • Recording

          Comments about Zoom RhythmTrak RT- 223 Drum Machine:

          Our church band tried three different drum machines and the first two were terrible! This one is very easy to use and sounds great! It actually sounds like there is a person on stage with us drumming on a real drum!

          Comment on this reviewHelp Icon

          (1 of 1 customers found this review helpful)


          5.0

          Yes! I just orderd my second RT-223..

          By Countr Blues Boy

          from Norfolk Ne.

          About Me Professional Musician

          Ask me a question

          Pros

          • Live on stage

          Cons

            Best Uses

            • use live o n stage

            Comments about Zoom RhythmTrak RT- 223 Drum Machine:

            This is my second Zoom RT 223.. The monitor display window has gone dim! So, I ordered a second zoom machine. After all this time , (Three years) I find that your favorite patterns can be applied to the key pads meaning , Punch and play. No dialing up patterns! After learning that, I realized that ,had I stored my favorite patterns on the key pads, I probably wouldn't need the display window anyway! OH well , live and learn! I should have read the manual closer! I was storing my patterns in a group on empty storing slots, worked fine but, storing on the pads for instant recall sounds even better.. Yes you can program in waltz patterns that you create, using the keypads. This time I bought the insurance, 2 years for cheap This is a great little machine! See my other post! (Country Blues Boy!)

            Comment on this reviewHelp Icon

            (1 of 2 customers found this review helpful)


            5.0

            As a church we have had one for years.

            By pastor Chris

            from Espanola NM

            About Me Experienced

            Verified Buyer

            Pros

            • Easy To Use
            • Functional
            • Good Quality

            Cons

              Best Uses

              • Backup

              Comments about Zoom RhythmTrak RT- 223 Drum Machine:

              When e found ourselves in need of another drum machine. We went looking for the Zoom 223

              Comment on this reviewHelp Icon

              (9 of 10 customers found this review helpful)


              2.0

              Buy the Alesis

              By SecretAgentMan

              from Orange, CA

              About Me Professional Musician

              Pros

                Cons

                • Difficult To Use

                Best Uses

                • Practicing

                Comments about Zoom RhythmTrak RT- 223 Drum Machine:

                I have an Alesis SR16 and an even older Yamaha RX17 which I'm still using. Thought I'd try the Zoom unit because of the bass line and some newer sounds. This unit is not intuitive and very difficult to program the bass line. Some patterns are usable, some not, the latin and jazz patterns are junk. By the time I figure this thing out I'll be too old to play. I won't be recommending this to a friend, I'll be giving it to him.

                Comment on this reviewHelp Icon

                (4 of 8 customers found this review helpful)


                1.0

                Rhythmtrak Dumb Machine

                By RM

                from WY

                About Me Professional Musician

                Verified Buyer

                Pros

                  Cons

                  • Difficult To Use

                  Best Uses

                    Comments about Zoom RhythmTrak RT- 223 Drum Machine:

                    Couldn't begin to figure this thing out. User's manual was no help.

                    Comment on this reviewHelp Icon

                    (2 of 2 customers found this review helpful)


                    4.0

                    NO POWER SUPPLY INCLUDED!!!!!

                    By BoomBoom

                    from Vermont

                    About Me Professional Musician

                    Pros

                    • Easy To Use
                    • Functional
                    • Good Quality

                    Cons

                    • No Ac Power Supply

                    Best Uses

                    • Practicing

                    Comments about Zoom RhythmTrak RT- 223 Drum Machine:

                    I am a bit disappointed that Musician's Friend did not make it clear that this unit doesn't come with an AC power supply. Seldom would I ever use this gear with batteries. C'mon guys-- update your site with a note that the power supply is NOT included. Moreover, where can I find a power supply for this unit? All power supplies are not created equal!

                    Comment on this reviewHelp Icon

                    Displaying reviews 1-10

                    Back to top

                    Previous | Next »
