Audio-Technica ATW-701/H92-TH Wireless System

SKU
#273006000000000
  • MSRP:
    $579.95
  • Your Savings:
    - $240.00
  • Free Shipping on Orders over $49
  • Your Price:
    $33995
  • 3 Used From $169.98

In Stock & Ready To Ship

Gold Coverage: (What’s This?)

(Most Popular)
+ Add to Wishlist
Audio-Technica

An inexpensive, fully professional setup for singers and speakers.

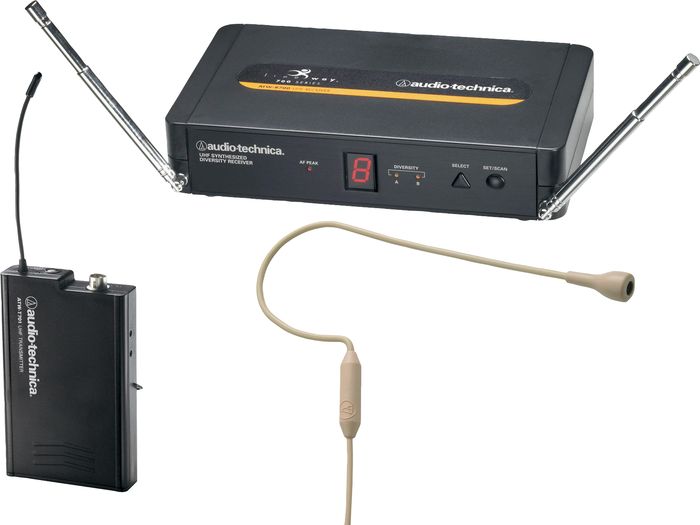

The ATW-701/H92 includes:
The ATW-R700 Receiver
The ATW-T701 UniPak Transmitter
The PRO 92cW Headworn Microphone (beige)

Audio-Technica's ATW-701/H92 Wireless Body Pack System incorporates the 700 Series Freeway wireless system, which delivers professional features and sound quality unheard of in its class. These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning, Tone Lock squelch, and more.

Consumer Alert:

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.

Features

  • 8 selectable frequency-coordinated UHF channels
  • Use up to 8 simultaneous systems—all channels compatible
  • Automatic frequency scanning
  • Diversity operation for increased range/reliability
  • LED Channel display plus Antenna, AF Peak indicators
  • Balanced XLR and unbalanced 1⁄4" output connectors
  • Tone Lock squelch system eliminates interference when transmitter is off
  • UniPak transmitter features: separate guitar/mic trim control, switchable high/low RF power, internal channel selector, multicolor battery/power indicator, AA operation
  • Hand-held transmitter features: variable trim control, internal channel selector, multicolor battery/power indicator, AA operation
  • Freeway body-pack systems are compatible with all Audio-Technica WirelessEssentials microphones and cables

This great wireless system is a click or call away. Don't miss it.

ATW-701/H92-TH Wireless System Specifications:

  • Overall System Specs:
  • Operating Frequencies: UHF band, 542.125MHz to 561.250MHz
  • Number of Channels: 8
  • Frequency Stability: +/-0.005%, Phase Lock Loop frequency control
  • Modulation Mode: FM
  • Maximum Deviation: +/-25kHz
  • Operating Range: 200' typical
  • Frequency Response: 100Hz to 12kHz
  • The ATW-R700 Receiver Specs:
  • Receiving System: Antenna-switching diversity
  • Image Rejection: 55dB minimum
  • Signal-To-Noise Ratio: >80dB at 10kHz deviation (IEC-weighted), maximum deviation 25kHz
  • Total Harmonic Distortion:
  • Sensitivity: 25dBuV (S/N 60dB at 10kHz deviation, IEC-weighted)
  • Audio Output: Unbalanced: 211mV (-13.5dBV) (1kHz modulation, 10kHz deviation); Balanced: 150mV (-16.5dBV) (1kHz modulation, 10kHz deviation)
  • Output Connectors: Unbalanced: 1/4" TS ("mono") phone jack; Balanced: XLRM-type
  • Power Supply: 100-240V AC (50/60Hz) to 12DC 1A (center positive) switched mode, external power supply
  • Dimensions (W x H x D): 7.48" x 1.65" x 5.12"
  • Weight: 12.9 oz.
  • Accessory Included: Power supply
  • The ATW-T701 UniPak Transmitter Specs:
  • RF Power Output: High: 10mW; Low: 5mW
  • Spurious Emissions: Under federal regulations
  • Dynamic Range: >100dB, A-weighted
  • Input Connections: High impedance, low impedance, bias
  • Batteries: 2 - 1.5V AA alkaline (not included)
  • Current Consumption: High: 140mA; Low: 130mA, typical
  • Battery Life: Approx. 8 hours (High); 10 hours (Low); depending on battery type and use pattern
  • Dimensions (W x H x D): 2.56" x 4.13" x 0.73"
  • Net Weight: 2.8 oz
Write a Review Overall Rating Customer Reviews 4 See all 4 customer reviews...

Not great, but not bad for the price

| Review By: Kendall Rezabek | 5 months, 2 weeks ago

3 people out of 3 found this review helpful

Features:
Quality:
Value:
Overall:

Using it two days a week in a church sanctuary, transmitter 80 ft (more or less) from the receiver. As the pastor moves, there's an occasional faint hiss in certain palces. Bothers me more than anyone else, but I'm on the 4th channel, trying to find a clear one. Could probably benefit from a squelch control, as distance isn't a problem for us.



The headset is very comfortable for the pastor. The mic is OK - an omni condenser, so there is a chance of feedback if gain is too high and he moves too far in front of the speakers. Also, lows, low mids, and (mid) mids are prominent, so some frequencies are cut as much as -12db, but part of that is due to the room size. Good steady signal with the mic always at the corner of the mouth.



On/off can be tricky and a tiny plastic screwdriver (stored inside the battery compartment) is required to select the bodypack transmitter's channel and adjust its gain - kind of clumsy.

Do you own the product?:
Yes
Have you used the product?:
Yes
Musical Experience:
30+ yrs bassist/soundman - hobby to semi-pro
Style of music you play:
Contemporary Christian
Where you live:
Tennessee

Did you find this review helpful? yes no1100525

Not hyper cardioid

| Review By: SnG | 2 years, 2 months ago

1 people out of 1 found this review helpful

Features:
Quality:
Value:
Overall:
Sorry guys. It's not hypercardioid. For a headset mic, this picks up a lot of room noise, which causes feedback. It's a little boomy sounding compared to wired mics like EV, Shure, Audix, or other wireless mics like VocalPro. I sent it back.
Do you own the product?:
No
Have you used the product?:
Yes
Musical Experience:
Broadcast engineer, active musician
Style of music you play:
Rock, Blues, Country
Where you live:
Boston, MA

Did you find this review helpful? yes no837616

Fantatsic Value

| Review By: Matt-a5Hf8 | 3 years, 2 months ago

2 people out of 2 found this review helpful

Features:
Quality:
Value:
Overall:
I direct a musical each year at the high school where I teach, and we have been growing our collection of wireless mics over the past few years. I am amazed that such quality mics and receiver are so affordable now. We are up to 11 mics - 3 of them are these models. These Audio-Technica's blow our other Sennheiser and Audio-Technica models out of the water. The receivers feel high quality, the mics are clear, and the ability to use 8 channels means it is very easy to expand our system. Great features (like trimming output on the trasmitter pack as well as the receiver) make these a must buy.
Do you own the product?:
Yes
Have you used the product?:
No
Musical Experience:
unspecified
Style of music you play:
unspecified
Where you live:
Nova Scotia

Did you find this review helpful? yes no1041170

Bought it for Voice, used it for Singing

| Review By: FCCALVIN | 4 years, 1 month ago

1 people out of 1 found this review helpful

Features:
Quality:
Value:
Overall:
We bought this unit for use by our pastor for speaking, however the first thing the pastor did was to sing through it, and it got the job done.  I was very surprised at the quality.  There are a lot of settings and options for channeling, but it worked fine right out of the box.  We will see how it holds up over the next few years.  Can't bear it for the price.
Do you own the product?:
Yes
Have you used the product?:
No
Musical Experience:
Sound Technician
Style of music you play:
Praise and Worship
Where you live:
Alvin, TX

Did you find this review helpful? yes no974102

See all 4 customer reviews...
