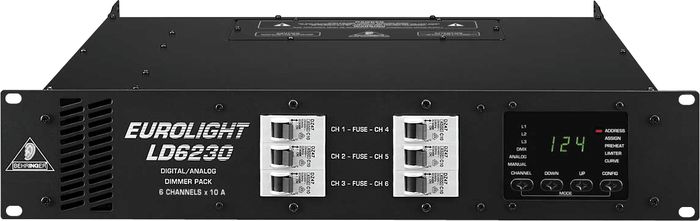

Behringer LD6230 Eurolight 6-Channel Lighting Dimmer Pack

The Behringer LD6230 EUROLIGHT dimmer pack is a high-end 6-channel DMX/analog controller with functions ideal for TV studios and other fixed installations. You can control it either digitally using its DMX512 interface or with analog control by using the additional 8-pole DIN connector. The Behringer LD6230 dimmer features an adjustable preheat and limiter function for prolonging light bulb life. Various transmission characteristics of the control signals from the lighting console are made possible with its precise curve function. The Behringer LD6230 dimmer pack features a switch option that allows a simple on/off control of each channel. An automatic digital input check detects DMX signal errors. When in manual mode, dimming the lights can be done even without an external lighting console. The Behringer Eurolight dimmer's autostore function saves all settings after leaving configuration mode. The Behringer EUROLIGHT lighting dimmer pack features a 3-digit display and dedicated control LEDs as well as HARTING and CEE connection options (connectors not included).

NOTE: connectors are not included. Behringer recommends that connections be made by experienced lighting techs or electricians.

The dimmer's DMX out is a 5-pin (European-style) type and requires a 5-pin to 3-pin adapter (not included).
