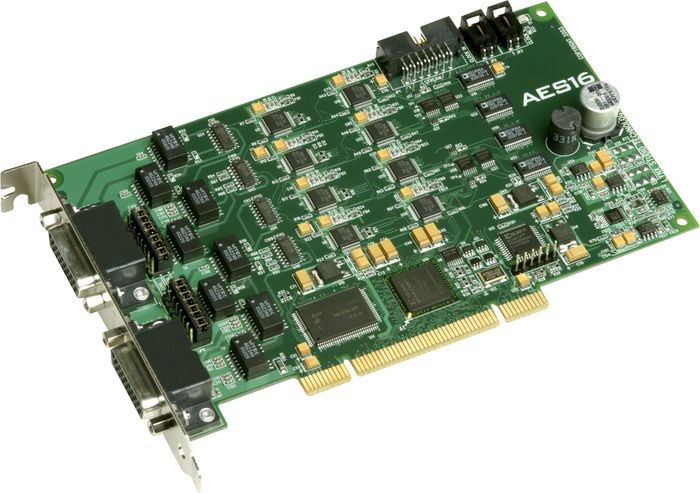

Lynx AES16 PCI Card

  • Write a Review
Product #501853

We're sorry—this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at +1-801-501-8110.

Similar Items:
  • MOTU UltraLite-mk3 Hybrid Audio Interface
    MOTU UltraLite-mk3 Hybrid Audio Interface EUR 454.00
  • MOTU 16A Thunderbolt Audio Interface
    MOTU 16A Thunderbolt Audio Interface EUR 1,236.29
  • MOTU 828x Thunderbolt Audio Interface
    MOTU 828x Thunderbolt Audio Interface EUR 702.08
  • See All Lynx Audio Interfaces
    Also Consider
    Also consider
        Lynx

        Integrates digital consoles, multichannel A/D-D/A converters, and hard disk recorders with DAWs.

        The Lynx AES16 PCI Card offers excellent AES/EBU channel capacity and routing flexibility in a single add-on PCI card. With support for up to 16 channels of input and output at sample rates up to 192kHz, the AES16 card turns your computer into a powerful digital router or patchbay with extensive flexibility and minimal cabling. Most importantly, the Lynx AES16 supports the emerging single-wire 192kHz standard and is compatible with existing dual-wire AES/EBU devices. Install up to 4 Lynx AES16 PCI Cards in a single computer.

        Features
        • 16-channel AES/EBU digital I/O
        • 192kHz / 24-bit single-wire and dual-wire modes
        • SynchroLock jitter attenuation
        • Word clock and multi-card synchronization
        • Powerful mixing and routing engine
        • Low-latency drivers for Windows and Macintosh

        Make your computer more flexible with this PCI Card. Order one or more today!



        AES16 PCI Card Specifications:

        • General
        • PCI Bus: Version 2.2 compliant
        • Data Transfers: Up to 132 MBps using custom 16-channel zero-wait state, scatter-gather DMA engine Bus mastering supported
        • Size: 5.0"H X 7.4"W X 0.75"D (half-size PCI card)
        • Digital I/O
        • Number/Type: 8 stereo inputs and 8 stereo outputs, 24-bit AES/EBU format, transformer coupled
        • Channels: 16 in/out in single-wire mode
        • Sample rates: All standard rates and variable rates up to 192kHz in both single-wire and dual-wire modes
        • Architecture
        • Core: FPGA-based core contains custom PCI interface, data routing and formatting, device control, digital mixing, clock routing and control, and a DMA engine; 256KB of onboard RAM for data buffering; support for field upgrades of firmware
        • Audio devices: Card is visible to host applications as 8 record devices and 8 play devices (Each device has two channels and can be used independently for multi-client functionality)
        • Clocking
        • Sources: Digital inputs 1-4, external word clock (with XLR cables only) on BNC, internal word clock on header, onboard low-jitter crystal oscillator
        • SynchroLock: Multi-stage, VCXO-based clock generation system with high jitter attenuation (Wide mode tracks off-frequency clocks, narrow mode generates ultra-low jitter output for standard frequencies)
        • Onboard digital mixer
        • Type: hardware-based, low latency
        • Routing: Ability to route any input to any or multiple outputs
        • Mixing: up to four input or playback signals mixed to any output, 40-bit precision
        • Status: peak levels to -114dB on all inputs and outputs
        • LStream expansion ports
        • Compatibility: Supports Lynx LStream expansion cards including the LS-ADAT 16-channel ADAT I/O card
        • Type: High-speed serial, up to 16 channels @ 24-bits on 14-pin internal connector
        • Connections
        • I/O ports: Two bracket-mounted 26-pin high-density female D-sub connectors (Can be configured to support eight channel or four channel AES connections)
        • External clock: 75-Ohm BNC word clock input and output provided on XLR cable set
        • Internal clock: Two 75-ohm board-mounted 2-pin headers for word clock input and output
        • Software
        • Windows Drivers: for Windows 2000 / XP platforms: MME, ASIO 2.0, WDM, DirectSound, Direct Kernel Streaming, and GSIF
        • Macintosh Drivers: CoreAudio for OSX
        • Mixer Application: multi-window GUI provides complete control of digital mixer and all hardware settings
