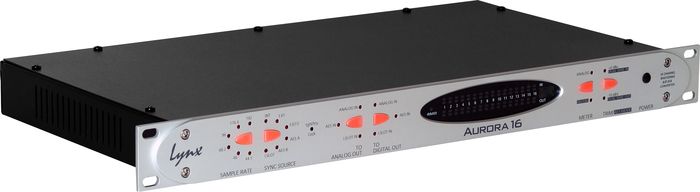

Lynx Aurora 16 AD/DA Converter 1U

  • Write a Review
SKU
#501849000000000

Overview

  • Simultaneous 16-channel analog I/O and 16-channel AES/EBU I/O
  • 24-bit/192kHz mastering quality A/D and D/A conversion
  • 192kHz AES/EBU I/O supporting single and dual wire modes
Description & Specs
  • MSRP:
    $3,295.00
  • Your Savings:
    - $300.00
  • Your Price:
    $2,99500

In Stock & Ready To Ship

Gold Coverage: (What’s This?)

+ Add to Wish List
Lynx

16-channel, 192kHz AD/DA converter with front-panel control of all routing and sample rate options.

The single rack unit Lynx Aurora 16 AD/DA converter provides world-class analog to digital and digital to analog audio conversion. With sample rates up to 192 kHz, the Aurora 16 offers wide, open, uncompressed and unequalized audio for studios, mastering facilities, remote recording, broadcast, and production. Lynx's exclusive SynchroLock word clock offers extreme jitter reduction, providing clean digital audio signals for Aurora and other digital devices in your studio.

The Lynx Aurora 16 also avoids some of the limitations that other pro-level audio converters have. It does not have a noisy fan or lose channel count at higher sample rates. Also, the Aurora 16 doesn't require costly analog and digital modules to achieve the converter's full channel count.

The Aurora 16 can be used with any audio content. Equalization and limiting functions, which can color or alter the sound, have not been added. Lynx's design provides accurate conversion, clear clean audio, wide imaging—the sound you put into the Aurora 16 audio converter is the sound that you get out of it.

The Lynx Aurora 16 was nominated for a TEC award in 2005.

Features

  • Simultaneous 16-channel analog I/O and 16-channel AES/EBU I/O
  • 24-bit/192kHz mastering quality A/D and D/A conversion
  • 192kHz AES/EBU I/O supporting single and dual wire modes
  • Single rack space configuration
  • Extensive remote control capability via Lynx AES16, IrDA and MIDI
  • Onboard 32-channel digital mixer provides flexible I/O routing
  • Word clock I/O with Lynx SynchroLock sample clock technology
  • Digital I/O DB-25 connectors follow Yamaha pinout protocol
  • Analog I/O DB-25 connectors follow Tascam pinout protocol
  • RoHS compliant


Aurora 16 AD/DA Converter 1U Specifications:

  • General:
  • AC Power: 115VAC, 70W
  • Size 1.75"H x 19"W x 9"D
  • Certifications: CE and FCC Class B EMI, CE product safety
  • Analog I/O:
  • 16 inputs and 16 outputs
  • Type: Electronically balanced or unbalanced
  • Level: +4 dBu nominal/+20 dBu max. or -10 dBV nominal/+6 dBV max.
  • Input impedance Balanced mode: 24 Ohms
  • Unbalanced mode: 12 Ohms
  • Output Impedance Balanced mode: 100 Ohms
  • Unbalanced mode: 50 Ohms
  • Output drive: 600 Ohm impedance, 0.2µF capacitance
  • A/D and D/A Type: 24-bit multilevel, delta-sigma
  • Analog In Performance:
  • Frequency Response: 20Hz - 20kHz, +0/-0.1dB
  • Dynamic range: 117dB, A-weighted
  • Channel crosstalk: -120 dB maximum, 1kHz signal, -1 dBFS
  • THD + N: -108dB (0.0004%) @ -1 DBFS, -104dB (0.0006%) @ -6 DBFS, 1kHz signal, 22 Hz - 22 kHz BW
  • Analog Out Performance:
  • Frequency response: 20Hz - 20kHz, +0/-0.1dB
  • Dynamic range 117 dB, A-weighted
  • Channel crosstalk -120 dB max., 1kHz signal, -1 dBFS
  • THD + N: -107dB (0.00045%) @ -1 DBFS, -106dB (0.00050%) @ -6 DBFS, 1kHz signal, 22Hz - 22kHz BW
  • Digital I/O:
  • Number/Type: 16 inputs and 16 outputs, 24-bit AES/EBU format, transformer coupled
  • Channels: 16 in/out in single-wire mode, 8 in/out in dual-wire mode
  • Sample rates: all standard rates and variable rates up to 192kHz in both single-wire and dual-wire modes
  • Onboard digital mixer (via AES16):
  • Type: Hardware-based, low latency
  • Routing: Ability to route any input to any or multiple
  • outputs
  • Mixing: Up to four input or playback signals mixed to any output, 40-bit precision
  • Status" Peak levels to -114dB on all inputs and outputs
  • Connections:
  • Digital I/O Ports: 25-pin female D-sub connectors
  • Port A: channels 1-8 I/O
  • Port B: channels 9-16 I/O (Aurora 16 only)
  • Yamaha pinout standard
  • Analog I/O Ports: 25-pin female D-sub connectors.
  • Analog In 1-8
  • Analog In 9-16
  • Analog Out 1-8
  • Analog Out 9-16
  • Tascam pinout standard
  • External Clock: 75-Ohm BNC word clock input and output
  • MIDI: One input and one output, standard opto-isolated, 5-pin female DIN connectors
  • Remote Control Options:
  • Function: Controls all I/O, levels, monitoring, routing, and setting recall
  • Method: AES16—with PC or Macintosh
  • IrDA—For compatible pocket PCs and laptops
  • MIDI—Selected MIDI devices
  • LSlot Expansion Port:
  • Compatibility: supports Lynx LSlot expansion cards
  • Channels: Up to 16 input and 16 output simultaneously at up to 192kHz sample rate
