Product 601139

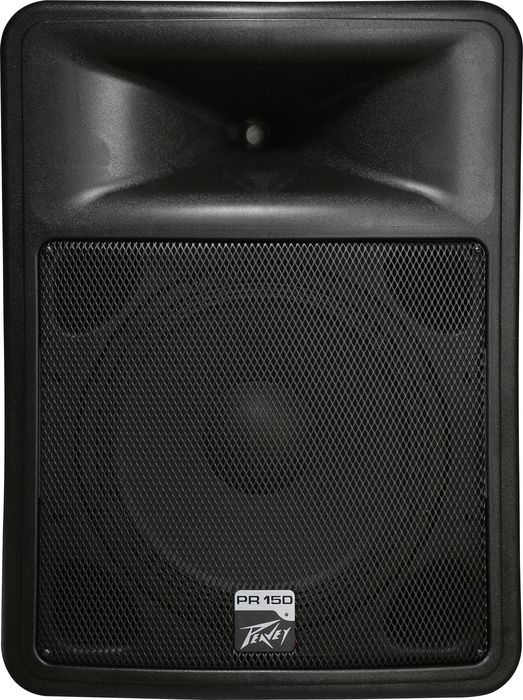

Peavey PR 15D 15" Active Speaker

  • Write a Review

The PR 15D packs power and full-range sound quality into one compact loudspeaker. This 2-way powered system contains 270W of bi-amped power. A separa...Read More

We're sorry—this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Similar Items:
OVERVIEW

An efficient combination of power and value.

The PR 15D packs power and full-range sound quality into one compact loudspeaker. This 2-way powered system contains 270W of bi-amped power. A separate amplifier for each speaker provides crystal clear sound even at very high levels. 200W powers the heavy-duty 15" woofer and 70W are dedicated to the RX 14 compression driver. Both amplifiers feature DDT compression, which virtually eliminates audible power amplifier clipping.

The enclosure utilizes tough polypropylene in an injection-molded plastic trapezoidal form, with a coated steel grille to offer an eye-pleasing yet durable powered speaker system. The PR 15D has a built-in three-channel mixer with individual level controls for XLR or 1/4 inch connections. Molded-in handles provide ease of transport while multiple mounting points for pole stand and Peavey Versamount brackets make it perfect for installs.

The Peavey PR 15D has a variety of applications such as sound reinforcement, public address, side fill system, karaoke, or musical playback. It also makes an excellent stage monitor and can be easily added to an existing sound system.

FEATURES
  • Bi-amplified powered system with 270 watts maximum output
  • Both power amps have DDT compression
  • 15" woofer with 2.375" VC with lightweight neodymium magnet
  • RX14 1.4" titanium compression driver
  • Peak SPL up to 120 dB with music
  • Combo jack with 1/4" TRS and Female XLR mic or line-level balanced input
  • Two 1/4" phone jack inputs with concentric level controls
  • Input mixing built-in
  • Molded-in horn has exceptionally smooth response and pattern control
  • Top and sides handgrips
  • Pole mount molded-in
  • Top and bottom flying point insert

Order today and class up your sound.

SPECIFICATIONS

PR 15D 15" Active Speaker

  • Frequency Response, 1 meter on-axis, swept-sine in anechoic environment: 47Hz to 20kHz (±3 dB)
  • Usable Low Frequency Limit (-3dB point): 47Hz
  • Internal Power Amplifiers (@120 VAC line):
  • Woofer — 200 Watts peak dynamic power
  • 140 watts @ less than 0.1% distortion
  • Tweeter — 70 Watts peak dynamic power
  • 50 Watts @ less than 0.1% distortion
  • Nominal Sensitivity (1W @ 1M, swept sine input in anechoic environment): 97dB
  • Maximum Sound Pressure Level: 120dB music peak
  • Nominal Radiation Angles: 90 degrees horizontal by 40 degrees vertical
  • Transducer Complement
  • 12" heavy duty woofer, and RX14 1.4" titanium diaphragm compression driver
  • Box Tuning Frequency (Fbox): 55Hz
  • Electroacoustic Crossover Frequency: 2000 Hz
  • Crossover type: Internal Electronic 2-way crossover with CD horn EQ, level matching, bass boost and subsonic filtering.
  • Crossover slopes: 18dB/octave (third order) low pass, 18dB/octave (third order) high pass, both with staggered poles and driver EQ. Unit has horn spatially aligned with woofer, so there is no need for phase alignment or time delay of the signals.
  • Electronic Input Impedance (Nominal): 10k Ohms unbalanced, 20 K Ohms balanced line level, 2.4 k Ohms balanced mic level.
  • Input Connections
  • One combo female XLR/1/4" phone jack providing balanced operation, with switch selectable mic or line level sensitivity. Also has two 1/4" phone jack line level unbalanced inputs with concentric pair of level controls.
  • Enclosure Materials & Finish: Injection-molded polypropylene of a nominal thickness of 1/4" with internal ribbing and bracing, and with textured finish. Molded material is dark gray.
  • Mounting: Subwoofer pole-mounting via molded-in mount, flying via Versamount 70 and four rubber feet for floor use.
  • Optional: Impulse 200 Floor Monitor Kit (FG# 00370480)
  • Dimensions 28-1/2" (72.5 cm) tall by 21-5/16" (54.1 cm) wide {11-1/2"/29.2 cm in rear} by 17" (43.2 cm) deep
  • Net Weight: 52 lb. (21.8 kg)
  • Electronics and Amplifier Specifications
  • Electronic Input Impedance (Nominal): Primary balanced input: 20k ohm line level sensitivity selected, 2.4k ohm mic level sensitivity selected, 10k ohm unbalanced 1/4".
  • Mic Switch Sensitivity Increase: 30dB
  • Infrasonic filter protection: 36dB/octave roll-off
  • Nominal Amplifier Frequency Response: +0, -1dB from 10Hz to 30kHz
  • Hum and Noise: Greater than 90dB below rater power
  • DDT Dynamic Range: Greater than 14dB
  • THD and IM: Typically less than 0.1%
  • Damping Factor: Greater than 100 @ 1000 Hz, 8 ohm
  • Power requirements of Peavey PR 12PD System (domestic): Nominal 100 Watts, 120 VAC, 60Hz
