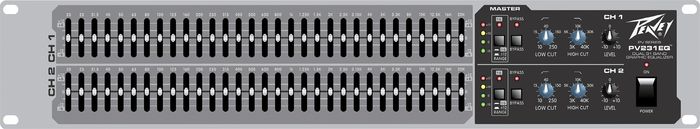

Peavey PV 231EQ Graphic Equalizer
- Write a Review
- SKU
- #183382000000000
-
- MSRP:
- $239.99
-
- Your Savings:
- - $60.00
-
Free Shipping on Orders over $25
-
- Your Price:
- $17999
- Free Shipping
- Top Seller
- Price Match
- Satisfaction Guarantee
-
res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
-
res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
-
res1305181318024582889873Musician's Gear 1/4" - 1/4" Speaker Cable 12 Gauge 12 Gauge ... $10.99 - $29.99
res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
-
res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
- res1305181318024582889873
Ruggedly constructed dual-channel EQ for a price that won't sink your wallet.
The PV 231EQ dual 31-band 2/3-octave graphic EQ features Peavey's legendary low-noise, low-distortion design. The PV 231EQ has center-detented fader controls and offers selectable ±6 dB or ±12 dB gain over frequencies ranging from 20 Hz to 20 kHz and an LED display indicating level. Other features include variable-state low-cut and high-cut filters, XLR balanced inputs and outputs and bypass switches. PV 231EQ filters are set at ISO center frequencies within 3% accuracy.
Features
- 2 RU dual 31-band
- Switchable 12-band or 6 dB boost/cut range
- Variable 24 dB low cut filter
- Variable 24 dB high cut filter
- XLR balanced I/O
- Output level LEDs
- Bypass switch with status LED
- 45 mm center-detent control sliders
Whether on stage, in the studio or simply tweaking your home hi-fi system, the PV 231EQ is the EQ for you. Order today!
PV 231EQ Graphic Equalizer Specifications:
- Channels: 2 (stereo)
- Bands: 31 per channel
- Connectors: XLR balanced inputs and outputs
- Frequency Centers: 20 Hz, 25 Hz, 31.5 Hz, 40 Hz, 50 Hz, 63 Hz, 80 Hz, 100 Hz, 125 Hz, 160 Hz, 200 Hz, 250 Hz, 315 Hz, 400 Hz, 500 Hz, 630 Hz, 800 Hz, 1 kHz, 1.25 kHz, 1.5 kHz, 2 kHz, 2.5 kHz, 3.15 kHz, 4 kHz, 5 kHz, 6.3 kHz, 8 kHz, 10 kHz, 12.5 kHz, 16 kHz, 20 kHz
- Control Range: Selectable +/-12 dB or +/-6 dB
- Input Impedance: 50k ohms
- Output Impedance: 600 ohms
- Maximum Output Level: +21 dB
- Level Control: +/- 10 dB
- Signal to Noise: >93 dB unweighted
- Distortion: 0.005%
- Roll-Off Filters: 18 dB/octave, butterworth
- Low-Cut: Variable state (10 Hz to 250 Hz)
- High-Cut: Variable state (3 kHz to 40 kHz)
- Power Consumption: 15 w
- Dimensions 19" W x 3.5" H x 7.625" D (Unpacked)
- 20.5" W x 5.875" H x 9.625" D (Packed)
- Weight 8.5 lbs. (Packed)
- 7 lbs. (Unpacked)
Review Snapshot®
by PowerReviews(based on 4 reviews)
Ratings Distribution
Reviews
Reviewed by 4 customers
Sort by
Displaying reviews 1-4
Comments about Peavey PV 231EQ Graphic Equalizer:
I just bought the Peavey PV 231EQ on 02/04/2011 and put it in my rack. I'm in the process of rewiring the whole set-up with some custom cables. Tonight I finished and tested all of them and when i powered it all up there was a very bad humm being produced so so I started the process of elimination and found it was caused by the EQ. lifting the ground didn't work and either. Its now a week later and today is the first time powered it up. I only had 3 days to return it so gotta find a nees for a noisy EQ
Comments about Peavey PV 231EQ Graphic Equalizer:
It says "...features Peavey's legendary low-noise..." , but adds a little bit noise when used in +/- 12 dB mode, the noise is gone when used in 6 dB mode. Its an average product, and is cheap. I have used the Behringer 3102, maybe i would have gone for that product instead with its feedback detection system. Anyway, its an okay product, but i may not buy it again.
Comments about Peavey PV 231EQ Graphic Equalizer:
Bought this to replace an older very scratchy peavey eq on my FOH run. Don't know if I got a bad one or what but right out of the box this thing adds so much white noise to the signal I might as well be using a noise generator. When all sliders are set to middle (flat), the hiss is terrible. And get this, when I cut the lows from 100hz and lower down, the hiss actually gets louder. Huh? Both channels do the same thing.Sorry Peavey but this thing's a dud and I returned it. I have 3 Behringer 3102's I use on my monitor runs and those things are dead silent. Looks like I'm getting another 3102 for the mains.
Comments about Peavey PV 231EQ Graphic Equalizer:
Just bought this graphic eq... its quite cheap but performs great, clean sounding. The controls are a little bit hard to adjust, not very smooth. Would have been nice if they were LED illuminated or maybe a feedback detecting circuit could have been included. The high pass and low pass filters are quite useful. For this price, you wont find a better eq.
Displaying reviews 1-4
