Shure QLX-D Digital Wireless System with WL184 Supercardioid Lavalier
- Write a Review
The Shure QLXD digital wireless systems are available in a variety of configurations that accommodate the needs of live presentation professionals fr...Click To Read More About This Product
6-Month* financing available.
Lavalier wireless with tight pickup pattern.

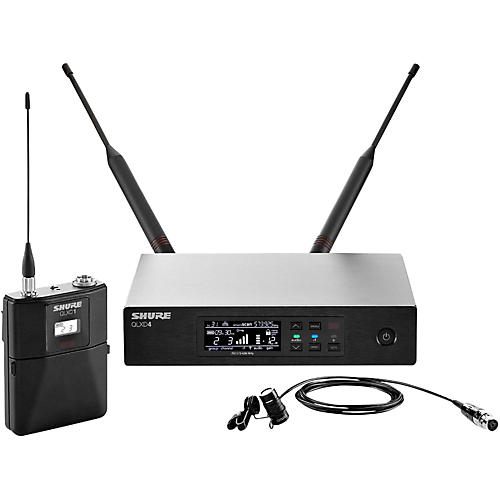

The Shure QLXD digital wireless systems are available in a variety of configurations that accommodate the needs of live presentation professionals from musicians to business leaders to auctioneers and beyond. This is the QLXD14/84 system, which includes the QLXD1 body pack transmitter, the QLXD4 digital wireless receiver, the WL184 headset microphone, power supply, 2 AA batteries, two 1/2 wave antennas, 2 BNC cables, zipper bag, 2 BNC bulkhead adapters, rackmount kit, and user guide.
The half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and sends them to transmitters via the one-touch sync function. The QLXD4 works with all QLX-D Digital Wireless Systems, and features Ethernet networking and mobile monitoring and control capabilities.
With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation. Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters.
Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.
QLXD1 Wireless Bodypack Transmitter is a small, lightweight body-worn device that instantly syncs with a wireless receiver over IR at the push of a button and maintains an uninterrupted signal over its entire range. It provides up to 9 hours of continuous use with 2 AA alkaline batteries or up to 10 hours of continuous use with Shure lithium-ion rechargeable batteries.
Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD1 Wireless Bodypack Transmitter is ideal for wireless vocals and instruments in mid-size presentation spaces, music venues, and houses of worship.
The Shure WL184 Wireless Lavalier Microphone is an electret condenser mic designed for use with a wireless bodypack transmitter. With a supercardioid pickup pattern the WL184 is recommended for sound reinforcement applications requiring high rejection of ambient noise and narrow pickup angle.
The WL184 has a 4 ft. (1.2 meter) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility. Use of windscreen highly recommended. Pickup angle is 115 degrees. Narrow supercardioid pickup pattern for maximum noise rejection. Four foot (1.2 meter) cable terminates in a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility
Consumer Alert:Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.
- Frequency response (TX): 50Hz - 17kHz
- Maximum SPL: 120 dB
- Format: Digital
- Line of sight: 300'
- Obstructions: 100'
- Capsule: Electret condenser
- Pattern: Supercardioid
- Type: Lavalier
- Type: AA x 2
- Life: 10 hours
- Available frequencies: 22
- Bandwidth: 24MHz
- Transmitter: Metal
- Receiver: Metal
- Receiver: 7-3/4 x 6 x 1-5/8"
- Transmitter: 4-1/4 x 2-1/2 x 7/8"
- Receiver: 1.7lbs.
- Transmitter: 4.5oz.(w/o batteries)
Order today for clear, feedback-resistant wireless.
