Shure ULXS14/50 Wireless Standard Lavalier System

  • Write a Review
Product #270784

We're sorry—this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Similar Items:
  • SLX14/93 Lav Wireless System CH G4
    SLX14/93 Lav Wireless System CH G4 $599.00
  • SLX14/84 Lav Wireless System CH G4
    SLX14/84 Lav Wireless System CH G4 $659.00
  • SLX24/BETA87C Wireless Microphone System CH G5
    SLX24/BETA87C Wireless Microphone System CH G5 $729.00
  • See All Shure Lavalier Microphone Wireless Systems
    Also consider
    Shure

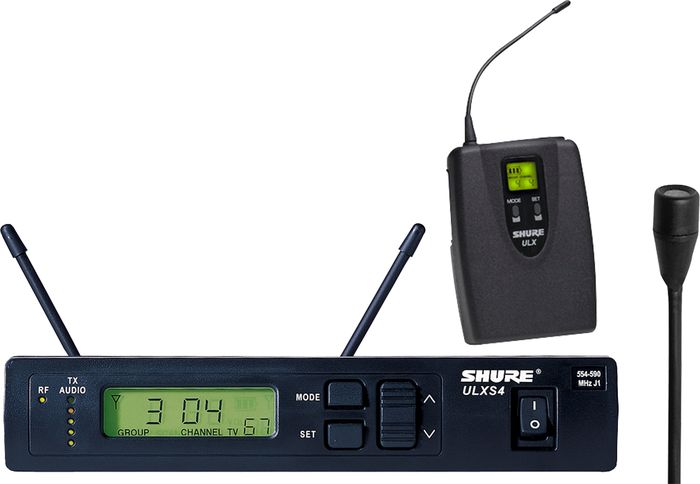

    The Shure ULXS14/50 Wireless Standard Lavalier System, includes WL50 Subminiataure Omnidirectional Lavalier Microphone, ULX1 Bodypack Transmitter and ULXS4 Diversity Receiver. ULX Standard UHF systems represent a breakthrough in performance and price for both working musicians and professional sound installers. Multiple system configurations provide limitless options, each with a choice of legendary Shure microphone transmitters. Over 1400 selectable, pre—programmed frequencies are available, and Automatic Frequency Selection provides a straight shot to a clear channel.

    WL50 Lavalier Microphone
    Shure's WL50 Lavalier microphone sets a new standard for miniature microphones. Visually unobtrusive, the WL50 is ideal for theater, television broadcast, video/film, and event production. Designed for applications that require minimal visibility without compromising sound quality.

    ULX1 Wireless Bodypack Transmitter
    The low-profile, highly durable body-pack ULX1 has all the characteristics to meet the demands of high performance. For use with headworn, Lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility.

    Shure ULXS4 Standard Receiver
    The Shure ULXS4 Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile ULXS4 receiver offers a direct path to full, clear audio signals, unencumbered and unattached.

    Consumer Alert:

    Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.

    Features

    WL50 Lavalier Microphone

    • Subminiature size
    • Electret Condenser Cartridge
    • Omnidirectional Pattern
    • Termination: 4-Pin Mini Connector
    • Sensitivity: -40 Dbv/Pa (For Speech Applications)
    • Equalization Cap: Silver Mesh Cap Provides A 4 Db Boost In The 8-18 Khz Range
    • Frequency Response: 20-20,000 Hz

    ULX1 Wireless Bodypack Transmitter

    • Three-segment battery fuel gauge
    • Frequency and power lockout
    • Flexible 1/4 wave antenna
    • TA4F mini four-pin input connector
    • Backlit LCD display shows group and channel setting
    • Adustable audio gain control
    • Input attenuation switch (selects 0 dB or -20 dB attenuation)
    • PEAK icon appears when audio input overloads the transmitter
    • Power on/off switch
    • 8 hour battery life (9V battery)
    • 300 foot (100m) operating range

    ULXS4 Diversity Receiver

    • Automatic Frequency Selection with group scan function
    • Over 1400 selectable frequencies
    • 5-segment transmitted audio signal strength meter
    • RF indicator
    • 3-segment transmitter battery fuel gauge
    • Advanced multi-function LCD displays group and channel
    • Mic/Line switch
    • Remotable 1/2-wave antenna
    • XLR and 1/4-inch output
    • Rugged plastic chassis
    • 1/2 rack design

    ULXS14/50 Wireless Standard Lavalier System Specifications:

    • RF Carrier Frequency Range: 554.000 to 865.000 MHz (Available frequencies depend on the applicable regulations in the country where the system is
    • used). Refer to the frequency supplement supplied with the system.
    • Effective Range: 100 m (300 ft.) under optimal conditions (NOTE: Actual working range depends on RF signal absorption, reflection, and interference)
    • Audio Frequency Response: 25 to 15,000 Hz, (± 2 dB
    • NOTE: Overall system frequency response depends on the microphone element.
    • ULX1 Transmitter Input
    • Connector: TA4F
    • Input Configuration: Unbalanced, active
    • Actual Impedance: 18 kohms with lavalier microphone; 1 Mohms with instrument cable
    • Maximum Input Level: 10 Vp—p (12 dBV) for 1% THD at minimum gain setting
    • using 1 kHz signal.
    • TA4F Connector Pin Assignments: Pin 1: Tied to Ground; Pin 2: Tied to +5 V; Pin 3: Tied to Audio; Pin 4: Tied thru 20kohms Resistor to Ground. (On instrument adapter cable, Pin 4 floats)
    • Voltage for Remote Power: +5 V supplied to microphone cartridge
    • ULX1 Transmitter Output
    • Actual Impedance: 50 Ohms
    • Nominal Output Level: 20 mW
    • Maximum Output Level: 30 mW
    • ULXS4 Receiver Input
    • Connector Type: Antenna - BNC; Power Input — IEC 320
    • Actual Impedance: Antenna 50 Ohms
    • Nominal Input Level: Antenna - —95 to —30 dBm; Power Input — 15 Vdc
    • Maximum Input Level: Antenna - +6 dBm (—20 dBm recommended); Power Input - 18 Vdc
    • Pin Assignments: Antenna Shell = Ground Center = Signal; Power Input - IEC Standard
    • Voltage for Remote Power: Antenna 12 Vdc, 150 mA maximum
    • ULXS4 Receiver Output
    • Connector: High Z Audio; Low Z Audio*
    • Output Configuration: High Z Audio - Unbalanced (1/4 in.); Low Z Audio - Balanced (XLR)
    • Actual Impedance: High Z Audio - 3 kohms; Low Z Audio - 22 ohms
    • Pin Assignments: High Z Audio Tip = Hot Ring/ Sleeve = Gnd Low Z Audio 1 = Ground, 2 = Hot, 3 = Cold
    • Voltage/Current/PhantomPower Protection?: High Z Audio — Yes; Low Z Audio — Yes
    • Output Level: Microphone Level = Line Level — 20 dB
    • Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive
    • voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output
    • Transmitter Gain Adjustment Range: 25 dB
    • Receiver Audio Output Level (± 38 kHz deviation, 1 kHz tone): XLR connector (into 600 ohm load): +3.9 dBV (line), —17 dBV (mic); 1/4 inch connector (into 3000 ohm load): —2 dBV
    • Modulation: ±38 kHz deviation compressor-expander system with pre- and de-emphasis.
    • RF Power Output: 30 mW maximum (ULX1)
    • Dynamic Range: >100 dB, A-weighted
    • RF Sensitivity: 1.26 uV for 12 dB SINAD (typical)
    • Image Rejection: 80 dB typical
    • Spurious Rejection: 75 dB typically
    • Ultimate Quieting (reference ±38 kHz deviation): >105 dB, A-weighted
    • System Distortion (reference ±38 kHz deviation, 1 kHz modulation): 0.3% total harmonic distortion, typical
    • Power Requirements: ULX1- 9V alkaline battery (8.4 V Nicad optional);
    • ULXS: 14 - 18 Vdc (negative ground), 550 mA
    • Battery Life: 8 to 9 hours (with 9V alkaline battery)
    • Operating Temperature Range: - 20 degrees to 49 degrees C (- 4 degrees to 120 degrees F) NOTE: Battery characteristics may limit this range.
    • ULX1 Dimensions (H x W x D): 3.86 x 2.68 x 1.10 in. (96.5 x 67 x 26.7 mm)
    • ULX1 Net Weight: 79 g (2.8 oz.) without battery
    • ULXS4 Dimensions (H x W x D): 1.72 x 8.56 x 6.52 in. (43 x 214 x 163 mm)
    • ULXS4 Net Weight: 2 lbs, 5 oz. (1,049 g)
    • WL50 Lavalier Microphone
    • Type: Condenser (electret bias)
    • Polar pattern: omni-directional
    • Frequency Response: 20 to 20,000 Hz
    • Output Impedance: N/A
    • Recommended Min. Input Impedence: 20Kohms
    • Output level: 45.0 dBV/Pa (1 Pa=94 dB SPL)
    • Maximum SPL: 133 dB at 1% THD/20 kilohm load
    • Sensitivity (1 Pa = 94 dB SPL): -45.5 dBV/Pa
    • Maximum Sound Pressure Level: 130.5 dB SPL
    • Output Noise (Equivalent SPL, A-weighted): 30.0 dB typically, 33 dB Maximum
    • Signal-to-noise ratio: 64 dB at 94 dB SPL
    • Dynamic Range: 103 dB
    • Power Requirements: +5 Vdc on pin 2, return on pin 1 (ground).
    • Polarity, Positive pressure on diaphragm produces positive voltage at: pin 3 relative to pin 1 at the output connector of the microphone.
    • Current Drain: 60 130uA
    • Cable and Connector: 5 ft. (1.5 m), small-diameter, shielded, with miniature female; 4-pin connector (TA4F type).
    • Dimensions (diameter x height): 0.22" x 0.43"(5.8 x 11 mm)
    • Net Weight: 0.7 oz. (21 g) with cable and connector.
