Shure ULXS14/83 Lavalier Wireless System
- Write a Review
The Shure ULXS14/83 Standard Wireless Microphone System includes WL183 Omnidirectional Lavalier Microphone, ULX1 Bodypack Transmitter, and ULXS4 Dive...Click To Read More About This Product
We're sorry-this item is unavailable.
Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.Customers Also Viewed:

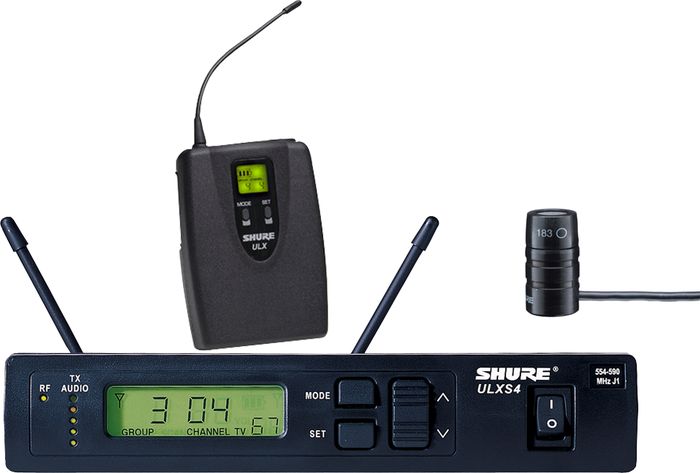

The Shure ULXS14/83 Standard Wireless Microphone System includes WL183 Omnidirectional Lavalier Microphone, ULX1 Bodypack Transmitter, and ULXS4 Diversity Receiver.
WL183 Lavalier Microphone
The WL183 lavalier electret condenser mic was designed for use with a wireless body-pack transmitter. It has a 4 ft. (1.2 meter ) cable terminated with a miniature 4-pin mini connector. Included tie clip can be rotated in 90 degree intervals for placement flexibility.
ULX1 Wireless Bodypack Transmitter
The low-profile, highly durable body-pack ULX1 has all the characteristics to meet the demands of high performance. For use with headworn, Lavalier and instrument microphones, as well as guitars and basses. Attaches to belt, waistband or guitar strap with clip for hands-free mobility.
Shure ULXS4 Standard Receiver
The Shure ULXS4 Standard receiver offers an exceptional value in both performance and price, for both working musicians and sound installers. The feature set of the versatile ULXS4 receiver offers a direct path to full, clear audio signals, unencumbered and unattached.
Consumer Alert:Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.
- WL183 Lavalier Microphone
- Recommended for general purpose sound reinforcement, recording, or remote monitoring applications.
- Low handling noise
- 360 degrees sound pickup
- ULX1 Wireless Bodypack Transmitter
- Three-segment battery fuel gauge
- Frequency and power lockout
- Flexible 1/4 wave antenna
- TA4F mini four-pin input connector
- Backlit LCD display shows group and channel setting
- Adustable audio gain control
- Input attenuation switch (selects 0 dB or -20 dB attenuation)
- PEAK icon appears when audio input overloads the transmitter
- Power on/off switch
- 8 hour battery life (9V battery)
- 300 foot (100m) operating range
- ULXS4 Diversity Receiver
- Automatic Frequency Selection with group scan function
- Over 1400 selectable frequencies
- 5-segment transmitted audio signal strength meter
- RF indicator
- 3-segment transmitter battery fuel gauge
- Advanced multi-function LCD displays group and channel
- Mic/Line switch
- Remotable 1/2-wave antenna
- XLR and 1/4-inch output
- Rugged plastic chassis
- 1/2 rack design
ULXS14/83 Lavalier Wireless System
- RF Carrier Frequency Range: 554.000 to 865.000 MHz (Available frequencies depend on the applicable regulations in the country where the system is
used). Refer to the frequency supplement supplied with the system.
Effective Range: 100 m (300 ft.) under optimal conditions (NOTE: Actual working range depends on RF signal absorption, reflection, and interference)
Audio Frequency Response: 25 to 15,000 Hz, (± 2 dB
NOTE: Overall system frequency response depends on the microphone element.
ULX1 Transmitter Input
Input Configuration: Unbalanced, active
Actual Impedance: 18 kohms with lavalier microphone; 1 Mohms with instrument cable
Maximum Input Level: 10 Vp”p (12 dBV) for 1% THD at minimum gain setting
using 1 kHz signal.
TA4F Connector Pin Assignments: Pin 1: Tied to Ground; Pin 2: Tied to +5 V; Pin 3: Tied to Audio; Pin 4: Tied thru 20kohms Resistor to Ground. (On instrument adapter cable, Pin 4 floats)
Voltage for Remote Power: +5 V supplied to microphone cartridge
ULX1 Transmitter Output
Actual Impedance: 50 Ohms
Nominal Output Level: 20 mW
Maximum Output Level: 30 mW
ULXS4 Receiver Input
Connector Type: Antenna - BNC; Power Input ” IEC 320
Actual Impedance: Antenna 50 Ohms
Nominal Input Level: Antenna - ”95 to ”30 dBm; Power Input ” 15 Vdc
Maximum Input Level: Antenna - +6 dBm (”20 dBm recommended); Power Input - 18 Vdc
Pin Assignments: Antenna Shell = Ground Center = Signal; Power Input - IEC Standard
Voltage for Remote Power: Antenna 12 Vdc, 150 mA maximum
ULXS4 Receiver Output
Connector: High Z Audio; Low Z Audio*
Output Configuration: High Z Audio - Unbalanced (1/4 in.); Low Z Audio - Balanced (XLR)
Actual Impedance: High Z Audio - 3 kohms; Low Z Audio - 22 ohms
Pin Assignments: High Z Audio Tip = Hot Ring/ Sleeve = Gnd Low Z Audio 1 = Ground, 2 = Hot, 3 = Cold
Voltage/Current/PhantomPower Protection?: High Z Audio ” Yes; Low Z Audio ” Yes
Output Level: Microphone Level = Line Level ” 20 dB
Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive
voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output
Transmitter Gain Adjustment Range: 25 dB
Receiver Audio Output Level (± 38 kHz deviation, 1 kHz tone): XLR connector (into 600 ohm load): +3.9 dBV (line), ”17 dBV (mic); 1/4 inch connector (into 3000 ohm load): ”2 dBV
Modulation: ±38 kHz deviation compressor-expander system with pre- and de-emphasis.
RF Power Output: 30 mW maximum (ULX1)
Dynamic Range: >100 dB, A-weighted
RF Sensitivity: 1.26 uV for 12 dB SINAD (typical)
Image Rejection: 80 dB typical
Spurious Rejection: 75 dB typically
Ultimate Quieting (reference ±38 kHz deviation): >105 dB, A-weighted
System Distortion (reference ±38 kHz deviation, 1 kHz modulation): 0.3% total harmonic distortion, typical
Power Requirements: ULX1- 9V alkaline battery (8.4 V Nicad optional);
ULXS: 14 - 18 Vdc (negative ground), 550 mA
Battery Life: 8 to 9 hours (with 9V alkaline battery)
Operating Temperature Range: - 20 degrees to 49 degrees C (- 4 degrees to 120 degrees F) NOTE: Battery characteristics may limit this range.
ULX1 Dimensions (H x W x D): 3.86 x 2.68 x 1.10 in. (96.5 x 67 x 26.7 mm)
ULX1 Net Weight: 79 g (2.8 oz.) without battery
ULXS4 Dimensions (H x W x D): 1.72 x 8.56 x 6.52 in. (43 x 214 x 163 mm)
ULXS4 Net Weight: 2 lbs, 5 oz. (1,049 g)
WL183 Lavalier Microphone
Type: Condenser (electret bias)
Polar Pattern: omnidirectional
Frequency Response: 50 to 17,000 Hz
Output Impedance: 1800 ohms
Sensitivity (1 Pa = 94 dB SPL): -40.0 dBV/Pa
Maximum Sound Pressure Level: 125.0 dB SPL
Output Noise (A-weighted): 22.5 dB SPL
Dynamic Range: 102.5 dB
Polarity: Positive pressure on diaphragm produces positive voltage on pins 3 and 4 relative to pin 1.
Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter.
Dimensions (diameter x height): 0.22" x 0.43"(5.8 x 11 mm)
Net Weight: 0.7 oz. (21 g) with cable and connector.
