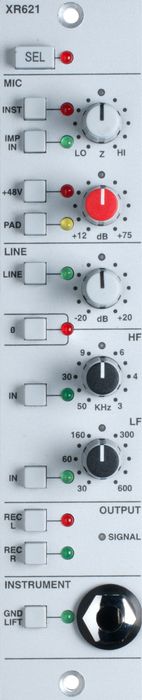

Solid State Logic X-Rack Microphone Amp Module

  • Write a Review

The Solid State Logic X-Rack Microphone Amp Module is an angelically pure and versatile input section with a choice of three separate input amplifier...Read More

We're sorry-this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Customers Also Viewed:
OVERVIEW

Capture that classic SSL sound in your mixes!

The Solid State Logic X-Rack Microphone Amp Module is an angelically pure and versatile input section with a choice of three separate input amplifiers: Mic amp, front panel instrument input, or line input. Designed for transparency and versatility with a set of high and low-pass filters, phase reverse, and everything you need from a very classy workhorse.

Please note: The X-Rack XR621 Mic Amp Module works in conjunction with the XR622 XR Master Module.

FEATURES
  • Electronically balanced ultrahigh-bandwidth input with -5dB to +75dB gain control and pad switch
  • Continuously variable input impedance control (1.2kOhm to 10kOhm) can accommodate signals from instruments or be adjusted to suit a wide range of microphones
  • Phase reverse & phantom power
  • Dedicated additional XLR line input
  • Front panel instrument input with ground lift switch
  • Independently switched 12dB/Octave HF (Low-Pass) Filter
  • Independently switched 18dB/Octave LF (High-Pass) Filter
  • Independent routing to L & R Record bus

Order today and add to your toolbox.

SPECIFICATIONS

X-Rack Microphone Amp Module

  • EQ Filters
    LF (High Pass):
    Frequency range: 50kHz ” 3kHz (”3dB point)
    Slope: 12dB/Octave
    HF (Low Pass):
    Frequency range: 30Hz ” 600Hz (”3dB point)
    Slope: 18dB/Octave

    Performance
    Microphone Amplifier Performance
    Gain: Continously variable from +12dB to +75dB; Independently switchable 20dB Pad available
    Input Impedance: Continously variable from 1k2 OHMS to 10k OHMS
    Output Headroom: > +26dBu at onset of clipping
    THD + Noise (-18dBu applied, +28dB gain): < 0.003% at 1kHz; < 0.006% at 10kHz
    Frequency Response: 20Hz to 20kHz: +0.05dB/-0.1dB; 150kHz: ”3dB
    Equivalent Input Noise (input terminated with 150 OHMS): < ”127dB at maximum gain; < ”90dB at 0dB gain (+20dB with Pad 'IN')
    Common Mode Rejection (-10dBu applied, +30dB gain): > 75dB from 50Hz to 1kHz; > 70dB at 10kHz

    Instrument Input Performance
    Gain: Continously variable from +12dB to +75dB; Independently switchable 18dB Pad available
    Input Impedance: 1M OHMS
    Output Headroom: > +26dBu at onset of clipping
    THD + Noise (-18dBu applied, +28dB gain): < 0.03% at 1kHz; < 0.05% at 10kHz
    Frequency Response:
    20Hz to 20kHz: +0.05dB/-0.1dB
    150kHz: ”3dB
    Equivalent Input Noise (Input terminated with 150 OHMS): < ”82dB at +12dB (minimum) gain; < ”88dB at +28dB gain (mid' position)

    Line Input Performance
    Gain: Continuously variable from ”20dB to +20dB
    Input Impedance: > 10k OHMS
    THD + Noise (+24dBu applied, 0dB gain): < 0.005% from 20Hz to 20kHz
    Frequency Response: 20Hz to 20kHz: ±0.1dB; 150kHz: ”3dB
    Equivalent Input Noise (Input terminated with 150 OHMS): < ”90dB
