Soundcraft Notepad 124 / PR15D PA Package

  • Write a Review

Includes the Soundcraft Notepad 124; 2 Peavey PR 15D 15" powered PA speakers; 2 Audio-Technica M4000S hand-held dynamic mics; 2 TRS-TRS cables; 2 XLR...Read More

We're sorry-this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Customers Also Viewed:
OVERVIEW

All-in-one, full-range PA for small bands that may require extra I/O.

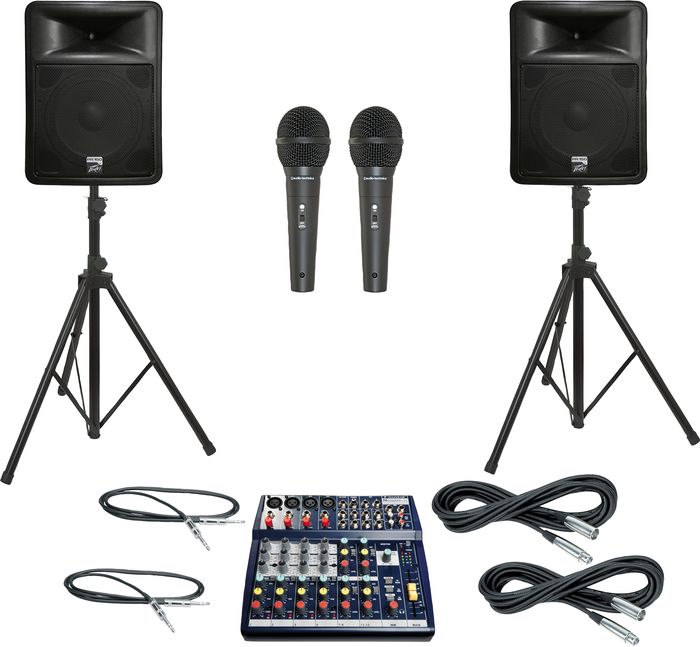

Includes the Soundcraft Notepad 124; 2 Peavey PR 15D 15" powered PA speakers; 2 Audio-Technica M4000S hand-held dynamic mics; 2 TRS-TRS cables; 2 XLR cables; and a pair of standard speaker stands.

Soundcraft Notepad 124FX:
The Soundcraft Notepad 124FX mixer boasts Soundcraft audio performance with the acclaimed GB30 mic preamp and EQ technology in a highly compact and solid chassis.

The 124 FX has 4 mono mic/line inputs. It also boasts 4 stereo line inputs, and suits a very wide range of applications where simple yet high-quality mixing is required, such as in home recording, small band/cabaret PA systems, AV presentation systems, small broadcast edit suites, educational environments and general contracting.

The Notepad 124FX also has an integral digital effects processor which has a feed from every input and over 100 effects, including a pink noise and test setting. The FX control can also be used to set delay tap tempo, a feature not found in many mixers in this class.

Other highly-desirable functions include a high-pass filter on the mono inputs, a 60mm fader for the mix output selectable sensitivity of +4dBu or -10dBV on each stereo input (Notepad 124 models only) and multi-segment led metering on the mix output along with a headphone monitoring output.


Peavey PR 15D Powered PA Speaker:
The PR 15D packs power and full-range sound quality into one compact loudspeaker. This 2-way powered system contains 270W of bi-amped power. A separate amplifier for each speaker provides crystal clear sound even at very high levels. 200W powers the heavy-duty 15" woofer and 70W are dedicated to the RX 14 compression driver. Both amplifiers feature DDT compression, which virtually eliminates audible power amplifier clipping.

The enclosure utilizes tough polypropylene in an injection-molded plastic trapezoidal form, with a coated steel grille to offer an eye-pleasing yet durable powered speaker system. The PR 15D has a built-in three-channel mixer with individual level controls for XLR or 1/4 inch connections. Molded-in handles provide ease of transport while multiple mounting points for pole stand and Peavey Versamount brackets make it perfect for installs.

The Peavey PR 15D has a variety of applications such as sound reinforcement, public address, side fill system, karaoke, or musical playback. It also makes an excellent stage monitor and can be easily added to an existing sound system.

Audio-Technica M4000S:

The handheld Audio-Technica M4000S dynamic microphone combines professional features with a ridiculously affordable price tag. Audio-Technica tailors the M4000S mic's frequency response for crystal-clear vocal reproduction. Great feedback rejection and focused pickup are due to the A-T microphone's unidirectional polar pattern. The M4000S Audio-Technica mic also is equipped with a handy On/Off switch for convenience.

Audio-Technica professional microphone enhancements include a balanced XLR output, and a mic clip. Whether you're on the road, in the studio, or just performing at local gigs. Expect the all-metal Audio-Technica M4000S microphone to provide you with years of trouble-free use.

Livewire TRS-TRS balanced cable:
Balanced (TRS) 1/4" phone to same. Professional interconnect. Nickel finish.

For serious-minded musicians, Live Wire cables have the strength and durability to withstand more than everyday use.

Superior wire
Your cable is your sound. Superior wiring allows your signal to be quiet, eliminating frustrating hums, buzzing, and crackles.

Sturdy construction
Sturdy construction enhances signal and performance. Flexible design eliminates kinks and twists for a tangle-free performance whether you're in the studio or on the stage.

Gear One XLR Microphone Cable:
Gear One's XLR cables have the strength and durability to withstand more than everyday use. Since your cable is your sound, this XLR mic cable's superior wiring allows your signal to be quiet, eliminating frustrating hums, buzzing, and crackles.

Musician's Gear Standard Speaker Stand:
The Musician's Gear Standard Speaker Stand adjusts from 42" to 71" in height, accepts 1-3/8" diameter sockets, and can hold up to 110 lb. Its aluminum construction reduces stand weight for easy transport, and its molded plastic leg housing with ergonomic knob is extremely durable.

FEATURES
  • Soundcraft Notepad 124FX:
  • Analog mixer
  • 4 mic inputs with GB30 mic preamps:
  • 4 stereo line channels for keyboards, MP3 player, etc.
  • Switchable +4dBu/-10dBV on stereo inputs
  • Classic sounding Soundcraft GB30 3-band British EQ
  • 100Hz high-pass filter on each mic input
  • Over 100 powerful built-in digital effects
  • +48V phantom power (global)
  • 1 Aux/FX Sends
  • 1 Return
  • L/R main Bus Outs
  • Peavey PR 15D Speaker:
  • Bi-amplified powered system with 270 watts maximum output
  • Both power amps have DDT compression
  • 15" woofer with 2.375" VC with lightweight neodymium magnet
  • RX14 1.4 inch titanium compression driver
  • Peak SPL up to 120 dB with music
  • Combo jack with 1/4 inch TRS and Female XLR mic or line-level balanced input
  • Two 1/4 inch phone jack inputs with concentric level controls
  • Input mixing built-in
  • Molded-in horn has exceptionally smooth response and pattern control
  • Top and sides handgrips
  • Pole mount molded-in
  • Top and bottom flying point insert
  • Light weight Neodymium woofer
  • Audio-Technica M4000S:
  • Frequency response tailored for crystal-clear vocal reproduction
  • Unidirectional pattern for feedback rejection and focused pick up
  • All-metal design for years of trouble-free use
  • Convenient on/off switch
  • Professional features include balanced XLR output and mic clip
  • Gear One XLR Cable:
  • Sturdy construction for enhanced signal and performance
  • Flexible mic cable design eliminates kinks and twists for a tangle-free performance in-studio and onstage
  • Musician's Gear Standard Speaker Stand:
  • 42" to 71" height
  • 110 lb. capacity
  • Lightweight rugged, aluminum
  • Portable
  • Use with 1-3/8" sockets

SPECIFICATIONS

Notepad 124 / PR15D PA Package

  • Soundcraft Notepad 124FX:
    Frequency Response Mic / Line Input to any Output: +1/-1.5dB, 20Hz “ 20kHz
    T.H.D. Mic Sensitivity -30dBu, +10dBu @ Mix output: < 0.005% @ 1kHz
    Noise

    Mic Input E.I.N. (maximum gain): -128.5dBm (150 ohm source)

    Aux, Mix and Masters (@ 0dB, at unity) < -85dBu

    Crosstalk (@ 1kHz)

    Channel Faders: > 87dB

    Master Faders: > 100dB

    CMRR (@ 1kHz) Master Faders: > 90dB
    EQ

    High Pass Filter: 100Hz @ 12dB/Octave
    HF: 12kHz, ±15dB,

    MF: 1kHz, ±15dB

    LF: 80Hz, ±15dB

    Q: 0.7

    Power Consumption: Less than 40W
    Operating Conditions Temperature Range: 5C to 40C
    Input & Output Levels

    Mic Input: +10dBu max.

    Line Input: +22dBu max.

    Stereo Input: +20dBu max.

    Mix Output: +25dBu max.

    Headphones (@32 ohm): 300mW

    Input & Output Impedances

    Mic Input: 2k ohm

    Line Input: 18k ohm

    Stereo Input: 20k ohm

    Outputs: 150 ohm

    Dimensions (WxHxD): 242mm (9-1/2") 45mm (1-13/16") 220mm (8-11/16")
    Weight: 3.5 lb. (1.6 kg)

    Peavey PR 15D Speaker:
    Frequency Response, 1 meter on-axis, swept-sine in anechoic environment: 47Hz to 20kHz (±3 dB)
    Usable Low Frequency Limit (-3dB point): 47Hz

    Internal Power Amplifiers (@120 VAC line):
    Woofer ” 200 Watts peak dynamic power
    140 watts @ less than 0.1% distortion
    Tweeter ” 70 Watts peak dynamic power
    50 Watts @ less than 0.1% distortion

    Nominal Sensitivity (1W @ 1M, swept sine input in anechoic environment): 97dB

    Maximum Sound Pressure Level: 120dB music peak

    Nominal Radiation Angles: 90 degrees horizontal by 40 degrees vertical

    Transducer Complement
    12" heavy duty woofer, and RX14 1.4" titanium diaphragm compression driver

    Box Tuning Frequency (Fbox): 55Hz

    Electroacoustic Crossover Frequency: 2000 Hz

    Crossover type: Internal Electronic 2-way crossover with CD horn EQ, level matching, bass boost and subsonic filtering.

    Crossover slopes: 18dB/octave (third order) low pass, 18dB/octave (third order) high pass, both with staggered poles and driver EQ. Unit has horn spatially aligned with woofer, so there is no need for phase alignment or time delay of the signals.

    Electronic Input Impedance (Nominal): 10k Ohms unbalanced, 20 K Ohms balanced line level, 2.4 k Ohms balanced mic level.

    Input Connections
    One combo female XLR/1/4" phone jack providing balanced operation, with switch selectable mic or line level sensitivity. Also has two 1/4" phone jack line level unbalanced inputs with concentric pair of level controls.

    Enclosure Materials & Finish: Injection-molded polypropylene of a nominal thickness of 1/4" with internal ribbing and bracing, and with textured finish. Molded material is dark gray.

    Mounting: Subwoofer pole-mounting via molded-in mount, flying via Versamount 70 and four rubber feet for floor use.

    Optional: Impulse 200 Floor Monitor Kit (FG# 00370480)

    Dimensions 28-1/2" (72.5 cm) tall by 21-5/16" (54.1 cm) wide {11-1/2"/29.2 cm in rear} by 17" (43.2 cm) deep

    Net Weight: 52 lb. (21.8 kg)

    Electronics and Amplifier Specifications

    Electronic Input Impedance (Nominal): Primary balanced input: 20k ohm line level sensitivity selected, 2.4k ohm mic level sensitivity selected, 10k ohm unbalanced 1/4".

    Mic Switch Sensitivity Increase: 30dB
    Infrasonic filter protection: 36dB/octave roll-off
    Nominal Amplifier Frequency Response: +0, -1dB from 10Hz to 30kHz
    Hum and Noise: Greater than 90dB below rater power
    DDT Dynamic Range: Greater than 14dB
    THD and IM: Typically less than 0.1%
    Damping Factor: Greater than 100 @ 1000 Hz, 8 ohm
    Power requirements of Peavey PR 12PD System (domestic): Nominal 100 Watts, 120 VAC, 60Hz

    Audio-Technica M4000S Mic:
    Element: Moving coil dynamic
    Polar pattern: Unidirectional
    Frequency response: 70Hz-12kHz
    Open circuit sensitivity: -52dB (2.5 mV)
    Impedance: 500 ohm
    Switch: On/off
    Weight: 329 grams (11.6 oz.)
    Dimensions: 178.3mm (7") length, 56.3mm (2-1/4") body diameter
    Output Connector: Integral 3-pin XLR M-type
    Accessories: Slip-in stand clamp for 5/8" ” 27 threaded adaptor
