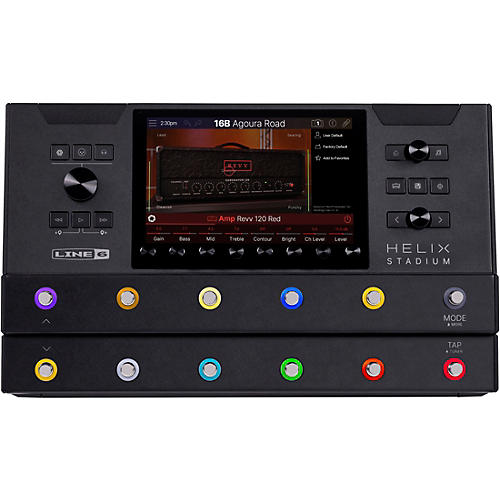

Line 6 Helix Stadium Floor Multi-Effects Guitar Processor Black

Helix Stadium Floor multi-effects guitar processor introduces a bold evolution in Line 6 amp modeling, built on the all-new Agoura modeling methodology. It captures the physical behavior of classic tube amps with stunning accuracy—including transformer coloration, tube saturation and real speaker interaction. You’ll experience amp tones that don’t just sound authentic—they feel right under your hands, responding dynamically to your playing style with remarkable detail and nuance.

Hype Control and Proxy Cloning for Personalized Tone Crafting

Helix Stadium Floor features a groundbreaking Hype control that allows you to morph between strikingly authentic amp sounds and idealized, polished versions—perfect for dialing in tones that feel live-ready or studio-finished with a single twist. The new Proxy engine uses cloud-based cloning to replicate the sound of your own amps, cabinets and effects, making it easier than ever to integrate your favorite analog gear into your digital rig without compromise.

High-Resolution Touchscreen Workflow With Focus View and Preset Audition

Navigation is fast, intuitive and inspiring thanks to the high-resolution 8" touchscreen paired with 11 knobs, 13 buttons and 12 onboard footswitches. Key features like Focus View deliver context-sensitive control with minimal menu diving, while Preset Audition lets you preview tones using built-in audio clips and on-screen explanations—streamlining your creative process onstage or off. Helix Stadium also includes free Helix Stadium Edit software for full-screen remote editing and patch management.

Showcase Engine Automates Complex Stage Setups With Ease

Designed to be the centerpiece of your stage rig, the Helix Stadium Floor’s Showcase engine automates everything from preset and snapshot recall to controlling external MIDI devices, lighting and video systems—even playback of up to eight internal stereo audio tracks. With built-in Wi-Fi and Bluetooth, you can wirelessly control your entire performance setup or make last-minute edits without reaching for a cable. It’s like having a full tech crew at your feet.

Full System Integration With Expand D10 and EX2 Support

Helix Stadium Floor offers deep connectivity and expandability to match any rig. In addition to extensive onboard I/O—including instrument and mic inputs, XLR and 1/4" outputs, four send/returns, S/PDIF, USB MIDI and DIN MIDI—you get a proprietary Nexus port for connecting the optional Expand D10 unit. Expand D10 adds support for Variax guitars via VDI, Powercab speaker systems via L6 LINK and 8-channel optical output for complex routing setups. The optional EX2 expression pedal with toe switch (sold separately) adds real-time control for volume, wah, pitch and more, while the Helix Stadium Backpack offers rugged, road-ready protection with custom internal compartments.

Future-Proof Design With Helix/HX Compatibility and More

Helix Stadium Floor is fully compatible with your existing Helix and HX presets, allowing for a seamless upgrade experience. The unit supports up to 48 dynamic blocks, four stereo signal paths and a flexible Matrix mixer that enables custom routing to multiple outputs. With its future-ready firmware architecture, Helix Stadium is designed from the ground up to support new tools and updates, ensuring it grows with your creative ambitions.
