Allen & Heath PA20 / Harbinger APS15 PA Package
- Write a Review
- Product 631045
- Free Shipping With Backstage Pass (48 Contiguous U.S. States)
This excellent PA equipment package includes an Allen & Heath PA 20 Mixer, 2 Harbinger APS15 15" Powered PA Speakers, and 2 Audio-Technica M4000S Han...Click To Read More About This Product
We're sorry-this item is unavailable.
Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.Customers Also Viewed:

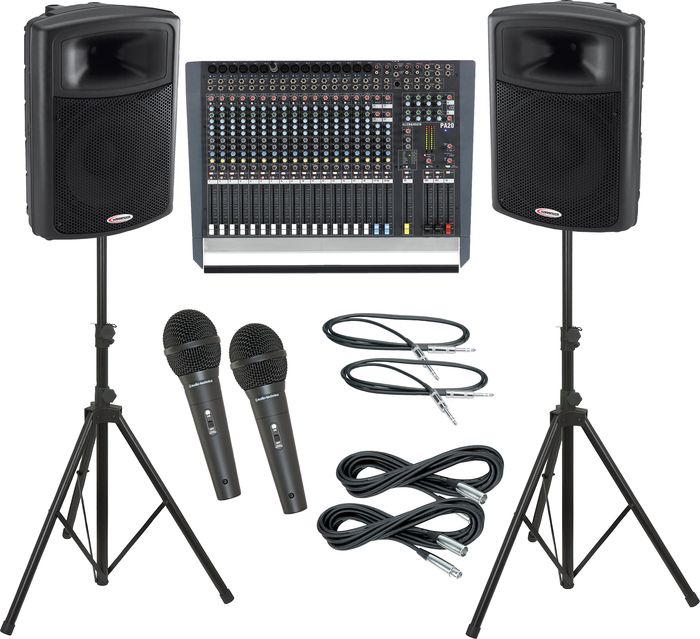

A PA mixer with 15" powered PA speakers, two dynamic mics, speaker stands, and cables.
This excellent PA equipment package includes an Allen & Heath PA 20 Mixer, 2 Harbinger APS15 15" Powered PA Speakers, and 2 Audio-Technica M4000S Handheld Dynamic Mics. Rounding out the bundle are a pair of Musician's Gear Standard Speaker Stands, 2 Gear One 20' XLR Microphone Cables, and 2 - 20' Live Wire TRS-TRS balanced patch cables. Now your live performances can sound exactly the way you want them to with this PA system.
Allen & Heath PA20 Mixer
The PA20 mixer has been designed with all the tools you will need to run a standard stereo PA system. With innovative design and excellent sound quality, these entry level consoles makes an ideal live mixer for club performers, schools' systems, conference rooms and traveling musicians. If you care about quality, you'll also appreciate the PA series build standards, including the same individual vertical circuit boards, nutted pots, and solid copper buss interconnection as the acclaimed ML series consoles. PA20 mixing consoles have the wonderfully full, open, natural quality that you'd expect from a professional Allen & Heath desk.
The Allen & Heath PA20 has 16 mono channels with mic (XLR) and line (TRS) inputs. Each mono channel features a padless 2-stage preamp offering pristine sound quality with switchable +48V phantom power. The channel's line input goes to the preamp's second stage for better impedance matching and performance. Each mono channel also has a switched 100Hz high pass filter, insert point, 4-band EQ, 4 aux sends, mute with LED indicator, PFL button with LED (functions as peak indicator), plus a 100mm fader.
Each mono channel features a 4-band EQ comprising Shelving LF (60Hz) and HF (12kHz) with fixed Low-Mid (250Hz), and swept High-Mid (300Hz - 6kHz). The fixed 250Hz control has been carefully selected to provide reduction of muddy sounds and enhance warmth.
2 stereo channels
The Allen & Heath PA20 also has stereo channels with RCA and 1/4" jacks (unbal). Independent gain controls provide source mixing in the channel strip. The RCA inputs can be switched direct to Left/Right instead of the channel strip, providing extra returns. Each stereo channel also has 1-band shelving EQ. 4 aux sends, stereo balance control, mute with LED indicator, PFL with LED, and 100mm fader.
4 Aux sends
The PA20 audio mixer provides 4 aux sends from all channels. Two sends are pre-fade for monitor mixes”they have 100mm fader masters, mute switch with LED indicator, AFL with LED indicator, and TRS outputs, which can be routed internally to the output section. The third send is a post-fade aux mix for effects, which feeds the internal FX processor and has a TRS jack output for external effects units. The fourth aux send is also post-fade aux mix that sends to a TRS jack for external effects or special feeds.
The main stereo mix output has a 100mm fader and mute switch with an LED indicator. The PA20 also has a mono sum output with level control subwoofer mode switch. There are also switchable pre/post fader RCA and S/PDIF record outs, plus twin 12-segment LED bar meters that show program (or PFL/AFL). Insert points on TRS jack for external processing as well as output EQ and routing to internal amplifiers/external systems are provided.
A 4-band semi-parametric EQ enhances the output section. This affects the TRS slave outputs and the internal constant power amplifiers, offering more control than graphic equalizers for precise management of speakers”especially foldback/monitors. Source selector allows output EQ section to be used on left/ right, L&R sum/Foldback1, or Foldback1/Foldback2.
A 16-program, digital effects processor provides reverbs, delays, chorus, and others, including effects combinations. The FX module takes its feed from the post-fade FX aux on the mono and stereo channels. The output of the FX module is controlled by a 100mm fader with mute switch and PFL, and is routed to the stereo mix and FB1&2 with post fade level controls. 2 TRS inputs with level control provide a way of combining external effects with the internal unit. The internal effects can be switched off to use external effects only if preferred. A footswitch TRS jack is provided to mute the effects channel. Editing of effects can be done via MIDI using the software editor available free from the resource CD or the Allen & Heath website.
Background music (BGM) mode plays 2-track input into the main mix (post fader), allowing you to pull down the fader (while patching, taking a break, or during walk-in) and leave music playing. Also provide in the master section are: 2-track input (RCA) with level control that feeds the headphone monitor selector (checking recording) while twin, 3-color 12-segment LED meters display the active monitor source; large LED indicates active PFL/AFL signal; standby switch uses relays to disconnect the speakers; 2 track output (RCA analog and S/PDIF) allows direct-to-digital recording; switchable pre/post master L&R fader; mono sum out with level mode switch for subwoofer feed with 100Hz low pass filter; and headphones out (TRS) with level control.
2 APS 15 15" Powered PA Speakers
The APS 15 from Harbinger combines a powerful 2-way loudspeaker, a simple mixer, and 200W of power into one convenient PA system. Featuring 3 channels with balanced and unbalanced inputs for microphones, music players or instruments, a 200W A/B amplifier, and a 15" speaker with a high horn driver, you get an active PA with flexibility, powerful reach, and concert quality sound. Equally capable of serving your needs in rehearsal spaces, small clubs, installs, banquet rooms, or outdoor events, the APS 15 PA speakers included in this PA system are easy to setup, never want for volume, and always provide full frequency, crystal-clear fidelity. With individual gain controls for each channel, 5-band graphic EQ, and a Master Output knob, you have the control you need to get the mix you want and the ability to tailor your sound to the distinct characteristics of any environment.
2 Audio-Technica M4000S Handheld Mics
The Audio-Technica M4000S Handheld dynamic microphone has professional features with a ridiculously affordable price tag. Its frequency response is tailored for crystal-clear vocal reproduction. Great feedback rejection and focused pick up are due to the unidirectional polar pattern. It also features a handy on/off switch for ease of use.
Professional features include a balanced XLR output and a rugged stand clamp. Whether you're on the road, in the studio, or just performing at local gigs, its all-metal design helps provide years of trouble-free use.
2 XLR Microphone Cables (20 feet each)
For serious-minded musicians, Gear One's XLR cables have the strength and durability to withstand more than everyday use. Since your cable is your sound, this XLR mic cable's superior wiring allows your signal to be quiet, eliminating frustrating hums, buzzing, and crackles.
2 Musician's Gear Standard Speaker Stands
These standard audio speaker stands adjust from 42" to 71" in height and accept 1-3/8" diameter sockets. Each holds 110 lb. Since they are made of aluminum construction, they reduce stand weight for easy transport. Their molded plastic leg housing with ergonomic knobs are extremely durable.
Live Wire TRS-TRS Balanced Patch Cable
Balanced (TRS) 1/4" phone to same cables with professional interconnect and nickel finish.
For serious-minded musicians, Live Wire cables have the strength and durability to withstand more than everyday use.
Your cable is your sound. Superior wiring allows your signal to be quiet, eliminating frustrating hums, buzzing, and crackles.
Sturdy construction enhances signal and performance. Flexible design eliminates kinks and twists for a tangle-free performance whether you're in the studio or on the stage.
- 16 mono channels with mic XLR and line TRS inputs
- Line input overrides the XLR input
- 2 stereo channel inputs
- Individual +48V phantom power switches are provided
- Line input goes to second stage for better matching and performance
- Switched 100Hz high pass filter
- Insert point
- 4-band EQ
- 4 aux mixes
- Mute with LED
- PFL button with LED that functions as peak indicator
- 100mm faders
- 16-program digital FX processor provides reverbs, delays, chorus and others, including combined
- 3-Channel Mic/Line mixer
- 200W Convection-cooled, Class A/B amplifier
- 15" 2-way, full-range powered speaker with high horn driver
- Individual gain control on each channel
- Balanced/unbalanced mic inputs
- XLR/Stereo RCA line input
- Balanced/Unbalanced outputs
- 5-Band master EQ & Master output controls
- LED clip indicator
- Built-in stand mount
- Frequency response tailored for crystal-clear vocal reproduction
- Unidirectional pattern for feedback rejection and focused pick up
- All-metal design for years of trouble-free use
- Convenient on/off switch
- Professional features include balanced XLR output and rugged stand clamp
- Sturdy construction for enhanced signal and performance
- Flexible mic cable design eliminates kinks and twists for a tangle-free performance in-studio and onstage
- 42" to 71" height
- 110-lb. capacity
- Lightweight rugged, aluminum
- Use with 1-3/8 sockets
- 28.9"W x 7"H x 21.2", 37 lb.
- Frequency Response (-3dB: 45 Hz“18 kHz
- Frequency Range (-6dB): 40 Hz“20 kHz
- Max SPL Long-term @1m: 98 dB
- Max SPL Peak @1m: 121 dB
- Crossover: passive, 18 dB/oct at 3.5 kHz
- Input type: 2 balanced XLR and 2 unbalanced 1/4"
- Input Impedance: 3k ohms
- Input sensitivity: -46 dBu
- Input type: XLR balanced / RCA unbalanced
- Input impedance: 10k ohms
- Input sensitivity: -26 dBu
- Type: 5-band graphic Equalizer
- Frequency: 250 Hz/500 Hz/1 kHz/4 kHz/8 kHz
- Equalize range: -12dB/+12dB
- Rated output power: 180W
- Max output power: 216W
- Power supply: 110V/60 Hz
- Max Power consumption: 276VA
- Rated THD: <0.5% (20 Hz“20 kHz)
Frequency response: +1/-2dB (20 Hz“20k Hz)
- Cooling: Convection Extrusion
- Design: Class A/B
- Element: Moving coil dynamic
- Polar pattern: Unidirectional
- Frequency response: 70Hz ” 12.000Hz
- Open circuit sensitivity: -52dB (2.5 mV)
- Impedance: 500 Ohms
- Switch: On/off
- Weight: 329 grams (11.6 oz.)
- Dimensions: 178.3mm (7.02") length, 56.3mm (2.22") body diameter
- Output Connector: Integral 3-pin XLR M-type
- Accessories: Slip-in stand clamp for 5/8" ” 27 threaded adaptor
