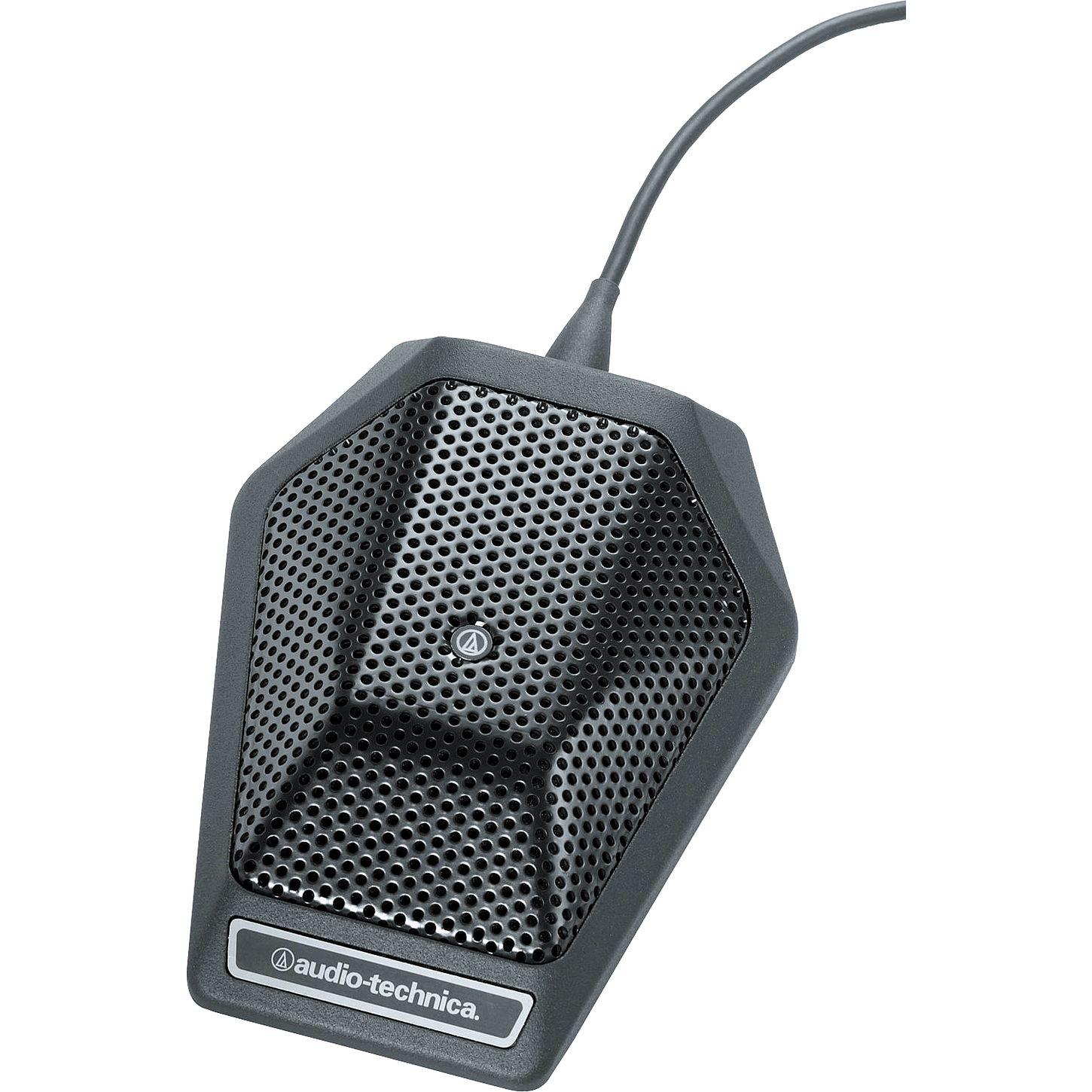

Audio-Technica U851A UniPoint Cardioid Condenser Boundary Microphone

  • Write a Review
SKU
275128 000000000
Product Price $269.0
  • Free Shipping (48 Contiguous U.S. States)

Offering outstanding Audio-Technica sound for surface-mount applications, the U851A UniPoint Boundary Microphone features a PivotPoint rotating outpu...Click To Read More About This Product

Available 06-02-2018

Gold Coverage: (What’s This?)
    Warranty Options
  Reserve Now
Notify Me When This is in Stock
Add to Wish List
Set Alerts
Earn Points

Earn up to 2,152 reward points.

Don't Forget
OVERVIEW

Accepts optional elements.

Offering outstanding Audio-Technica sound for surface-mount applications, the U851A UniPoint Boundary Microphone features a PivotPoint rotating output connector, UniSteep filter and UniGuard RFI-shielding technology. This battery or phantom powered condenser microphone accepts interchangeable condenser elements--available for boundary microphones in cardioid, hypercardioid and omnidirectional polar patterns. Its heavy die-cast case and silicon foam bottom pads minimize coupling of surface vibration to the microphone. With superior off-axis rejection and maximum gain-before-feedback, this professional flat microphone sets audio-quality standards in challenging acoustic environments.

FEATURES
  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • PivotPoint rotating output connector allows cable to exit from either the rearor the bottom of the microphone
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • UniSteep filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • Small-diameter UniPoint capsule near boundary eliminates phase distortion and delivers clear, high-output performance
  • Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance black finish for minimum visibility
  • Operates on battery or phantom power
SPECIFICATIONS
  • Element: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: Omnidirectional in hemisphere above mounting surface
  • Frequency Response: 30-20,000 Hz
  • Low Frequency Roll-off: 80 Hz, 18 dB/octave
  • Open Circuit Sensitivity: Phantom ”39 dB (11.2 mV) re 1V at 1 Pa; Battery ”40 dB (10.0 mV) re 1V at 1 Pa
  • Impedance: Phantom 200 ohms; Battery 270
  • Maximum Input Sound Level: Phantom 133 dB, 1 kHz at 1% T.H.D.; Battery 123 dB SPL, 1 kHz at 1% T.H.D.
  • Dynamic Range (Typical): Phantom 111 dB, 1 kHz at Max SPL; Battery 101 dB, 1 kHz at Max SPL
  • Signal-To-Noise Ratio: 72 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 11-52V DC, 2 mA typical
  • Optional Interchangeable Elements: UE-H hypercardioid (100); UE-O omnidirectional (360)
  • Battery Type: 1.5V AA/UM3
