Nady WHM-16 Headmic Wireless System

  • Write a Review
Product H77420
Product Price $0.00
  • Free Shipping With Backstage Pass (48 Contiguous U.S. States)

The Nady WHM-16 Headmic Wireless System includes the MGT-16 receiver and the WH-16 Head-Worn TransmitterThe Nady MH-16 is a Compact, lightweight head...Click To Read More About This Product

We're sorry-this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Customers Also Viewed:
OVERVIEW

Hands free, cordless operation.

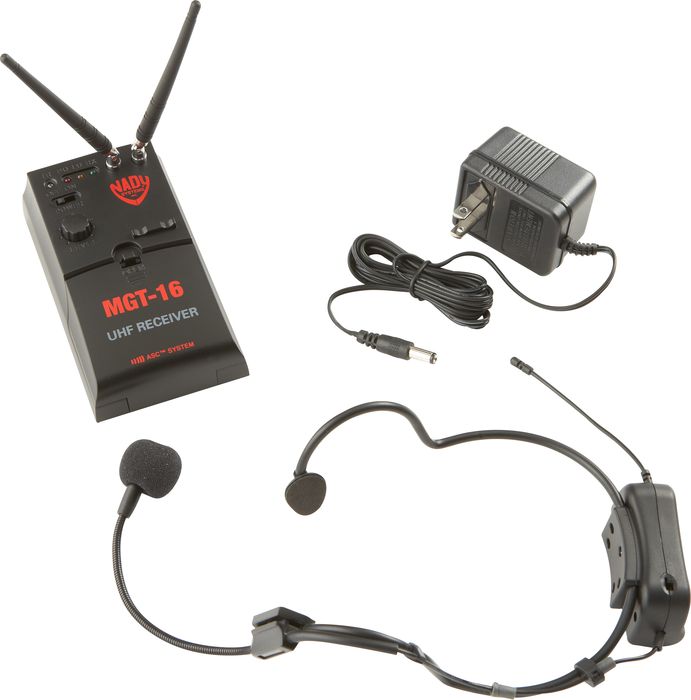

The Nady WHM-16 Headmic Wireless System includes the MGT-16 receiver and the WH-16 Head-Worn Transmitter

The Nady MH-16 is a Compact, lightweight headset transmitter fits snugly on the back of your head. No cord connection needed. The headset frame is completely rubberized for comfortable, trouble-free performance. A flexible gooseneck allows optimum microphone positioning.

The Nady MGT-16 is a compact receiver can be placed anywhere you choose. It is powered by internal AA batteries or AC adapter (supplied). Has 16 user-selectable UHF frequencies for interference-free operation. ASC (Auto-Sync Channel) infrared wireless download pairs transmitter to selected receiver frequency for quick, easy setup. It has a 250 ft. line-of-sight operating range, and is powered by single AAA battery.

Consumer Alert:

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.

FEATURES
MGT-16 Instrument Receiver
  • Compact, portable, œpedal style receiver can be placed anywhere
  • Dual ¼ wave antennas
  • Unbalanced ¼ line output plug
  • Power On/Off/Mute switch; Volume Control; LED indicators for Low Battery, and RF Reception; DIP-switch channel selection with IR sync to transmitter; IR Sync LED
  • Powered by DC adapter (included) or two AA alkaline batteries for
  • portability (Up to 8 hours battery life)
WH-16 Head-Worn Transmitter
  • Head-Worn (over ears style) transmitter for hands free, cordless operation
  • Up to eight hours of battery life from a single AAA alkaline or NiMH rechargeable battery
  • Infrared channel sync with receiver for instant setup
  • Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED
  • External flexible wire antenna

Take your performances to the next level.

SPECIFICATIONS
General
  • Frequency Response: 50Hz“16kHz (-3dB)
  • Dynamic Range: 120dB
  • Oscillating System: Phase Lock Loop (PLL)
  • Total Harmonic Distortion (THD): <0.8%
  • RF Carrier Frequency Range: 902.40MHz“923.70MHz
  • Modulation: FM (F3E), +/-30KHz normal
  • Operating Range: Up to 250 feet (typical, depending on site conditions)
MGT-16 Receiver
  • Controls: Audio Level, Power ON/MUTE/OFF, Frequency Select DIP-switches, IR sync button
  • Connectors: Unbalanced ¼, DC Adapter input jack
  • LED Indicators: Power ON (Red-continuous), Low Power (Amber-continuous),RX
  • reception (Green), IR Sync LED
  • Antennas: Dual ¼ wave, adjustable orientation
  • Signal-to-Noise Ratio: > 105dB (w/AC/DC power supply)
  • Receiver Sensitivity: -110dBm nominal, 12dB SINAD
  • Squelch Sensitivity: -95dBm (minimum/normal setting), adjustable
  • Output Impedance: 1.0KÎ
  • Power Consumption: DC: 3V/ 115mA or AC/DC adapter: 15VDC/200mA
  • Battery: Two AA alkaline or NiMH
  • Battery Life: Up to 8 hours
  • Dimensions: 2.75 W x 5.00 D x 1.88 H (7.0 cm x 12.7 cm x 4.78 cm)
  • Weight: (w/o batteries) 5.7 oz (161.6 g)
  • Housing Construction: ABS Plastic
WH-16 Head-Worn Transmitter
  • RF Power Out: 25mW nominal, 50mW maximum
  • Harmonic & spurious emissions: -50dB
  • Controls: Power ON/OFF
  • LED Indicators: Power ON (Red-single flash), Low Battery (Red flashing)
  • Input Impedance: 5KÎ
  • Power Consumption: DC 1.5V/90mA
  • Battery: One AAA alkaline or NiMH
  • Battery life: Up to 8 hours
  • Antenna: ¼ wave, permanently attached
  • Dimensions: (w/Mic) 6 W x 7 D x 2.5 H (15.3 cm x 17.8 cm x
  • 6.4 cm)
  • Weight (w/o batteries): 2.1 oz (59.6 g)
  • Housing Construction: ABS Plastic
