ULX2/58 Wireless Handheld Transmitter Microphone

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

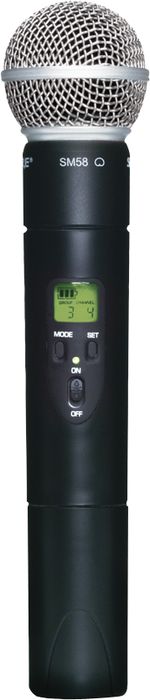

The Shure ULX2/58 Handheld Transmitter Microphone is comprised of the ULX2 Wireless transmitter fitted with the SM58 microphone capsule. The ULX2 features include a 3-segment battery fuel gauge, backlit LCD shows group and channel, frequency and power settings, control lockout, 8 hour battery life, and a 300 ft (92 m) operating range. The ULX2 transmitter is designed to allow for interchangeable microphone cartridges. The Legendary Shure SM58 vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals. Consistently the first choice of performers everywhere.

Features

ULX2 transmitter
  • 8-9 Hour Battery Life
  • Power: On/Off Switch, Battery
  • LED-Green When ON, Red When Battery Low
  • Three-segment Battery Power Icon
  • PEAK Icon-Appears When Audio Signal Overloads
  • Group/Channel Displays
  • SET Button for Saving Settings
  • Adjustable Audio Gain Control
  • Input Attenuation Switch-Select 0dB for Voice/Low Output; 20dB for High Output
  • 4-pin Mini Connector
  • Battery Cover Unscrews to Expose Battery and Gain Control
  • 9V Battery Included
SM58 microphone
  • Cardioid (unidirectional) dynamic
  • Frequency response: 50 to 15,000 Hz
  • Legendary Shure quality, ruggedness and reliability
Specs

ULX2/58 Wireless Handheld Transmitter Microphone Specifications:

  • ULX2 Transmitter Output:
  • Actual Impedance: 50 Ohms
  • Nominal Output Level: 20 mW
  • Maximum Output Level: 30 mW
  • Pin Assignments: Shell = Ground Center = Signal
  • Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive
  • voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output
  • Transmitter Gain Adjustment Range: 25 dB
  • Receiver Audio Output Level (± 38 kHz deviation, 1 kHz tone): XLR connector (into 600 ohm load): +3.9 dBV (line), ”17 dBV (mic); 1/4 inch connector (into 3000 ohm load): ”2 dBV
  • Modulation: ±38 kHz deviation compressor-expander system with pre- and de-emphasis.
  • RF Power Output: 30 mW maximum
  • Dynamic Range: >100 dB, A-weighted
  • RF Sensitivity: 1.26 uV for 12 dB SINAD (typical)
  • Image Rejection: 80 dB typical
  • Spurious Rejection: 75 dB typically
  • Ultimate Quieting (reference ±38 kHz deviation): >105 dB, A-weighted
  • System Distortion (reference ±38 kHz deviation, 1 kHz modulation): 0.3% total harmonic distortion, typical
  • Power Requirements: 9V alkaline battery; 8.4 V Nicad optional
  • Battery Life: 8 to 9 hours (with 9V alkaline battery)
  • Operating Temperature Range: - 20 degrees to 49 degrees C (- 4 degrees to 120 degrees F) NOTE: Battery characteristics may limit this range.
  • Overall Dimensions (Length x Diameter): 9 x 2 in. (228.6 x 51 mm)
  • Net Weight: 10.2 oz. (289 g) without battery
