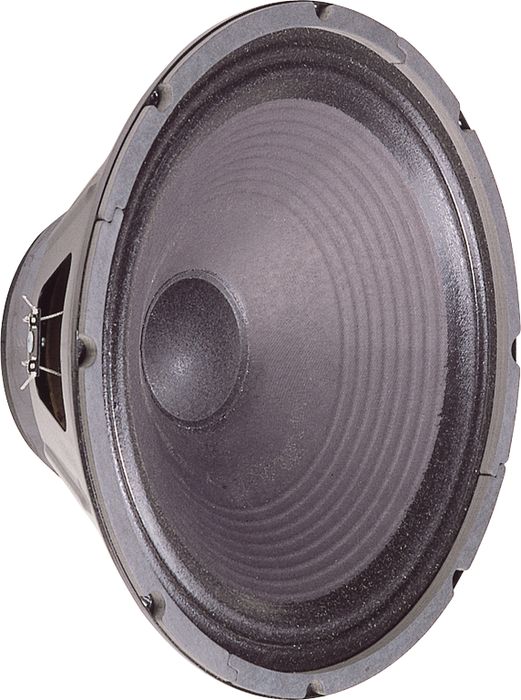

Eminence Legend V128 12" 120 Watt Vintage British Tone Speaker  8 ohm

  • Write a Review
SKU
#667704000000612
Top Rated
  • MSRP:
    $79.99
  • Your Savings:
    - $5.00
  • Your Price:
    $7499
  • Free Shipping
  • Top Rated
  • Top Seller

Order Now! Expected to ship 11-01-2014

Gold Coverage: (What’s This?)
+ Add to Wish List Notify Me When This is in Stock
See All Eminence Speakers for Instrument Amps
Eminence

Tight definition, lots of volume, and rich harmonic balance.

The Eminence Legend V128 12" 120 Watt Vintage British Tone Speaker has a British-manufactured cone that lends tonal characteristics to set rock guitarist's hearts afire. A Kapton bobbin for the voice coil allows this classic to handle up to 120W. Very mellow, but with lots of definition and rich tonal harmonic balance. Medium break-up modes. Very smooth.

Emminence recommends the Legned V128 as a direct replacement speaker for the Epiphone Triggerman and the Epiphone SoCal 412SL cabinets.




Legend V128 12" 120 Watt Vintage British Tone Speaker Specifications:

  • Specifications:
  • Basket diameter: 12" (304.8 mm)
  • Impedance: 8 or 16 Ohms
  • Power Rating**: 120Wrms**
  • Voice Coil Diameter: 1.75", 44.5mm
  • Coil Material: Copper
  • Flat/Round Coil Wire: Round
  • Coil Former Material: Kapton
  • Basket Type: Stamped Steel
  • Cone Surround Material: Paper
  • Dust Cap Material: Felt
  • Magnet Weight: 38oz.
  • Usable Bandwidth (Fs to -3dB): 80Hz - 4.5kHz
  • SPL*: 100dB*
  • Materials
  • Basket: Pressed Steel
  • Voice Coil: Polyamide-Imide Coated Copper
  • Dust Cap: Solid Composition Felt
  • Cone: Paper
  • Surround: Paper Cone Edge
  • Magnet: Ferrite
  • Mounting Information:
  • Nominal Basket Diameter: 12.02", 305.2mm
  • Baffle Hole Diameter: 10.97", 278.6mm
  • Mounting Holes Diameter: 0.25", 6.4mm
  • Mounting Holes B.C.D.: 11.63", 295.3mm
  • Depth: 6.06", 154mm
  • Shipping Weight: 9.4 lbs., 4.3 kg.
  • Thiele-Small Parameters:
  • Resonant Frequency (fs): 89Hz
  • Impedance (Re): 6.37 Ohms
  • Coil Inductance (Le): 0.64mH
  • Electromagnetic Q (Qes): 0.83
  • Mechanical Q (Qms): 11.98
  • Total Q (Qts): 0.77
  • Compliance Equivalent Volume (Vas): 39.4 liters, 1.39 cu. ft.
  • Peak Diaphragm Displacement Volume (Vd): 41cc
  • Mechanical Compliance of Suspension (Cms): 0.10mm/N
  • BL Product (BL): 11.5 T-M
  • Diaphragm Mass inc. Airload (Mms): 31 Grams
  • Equiv. Resistance of Mechanical Suspension Loss (Rms): 1.44N*sec/M
  • Efficiency Bandwidth Product (EBP): 108
  • Voice Coil Overhang (Xmax): 0.8mm
  • Surface Area of Cone (Sd): 519.5cm2
  • Impedance at Resonance (Zmax): 99 Ohms
