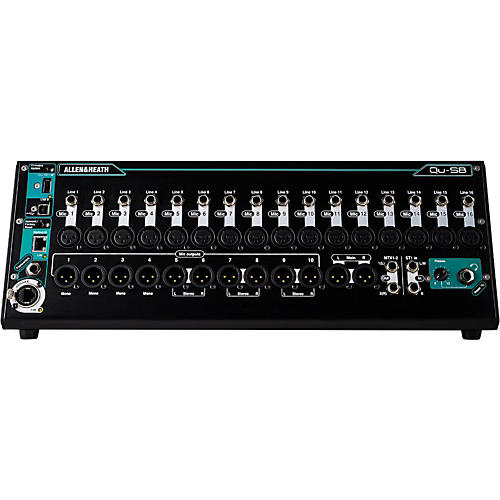

Allen & Heath QU-SB Rack-mountable digital mixing system

  • Write a Review

Qu-SB is an ultra-compact digital mixer that frees you to mix from anywhere in the venue and provides a smart, portable solution for performing bands...Click To Read More About This Product

In Stock & Ready To Ship

Gold Coverage: (What’s This?)
    Warranty Options
  • Shipping (48 Contiguous U.S. States)
    FREE
  • Your Price :
    $9990
  Add to Cart
Add to Wish List

Earn up to 7,992 reward points.

See All Allen & Heath Digital Mixers
Don't Forget
OVERVIEW

Advanced mixing system with many performance advantages.

Qu-SB is an ultra-compact digital mixer that frees you to mix from anywhere in the venue and provides a smart, portable solution for performing bands and artists. The hardware component of the system can be carried under one arm and comes loaded with A&H’s acclaimed suite of FX emulations and dynamics, making it a smart replacement for an old analoge mixer and a rack full of outboard FX.

The companion Qu-Pad app is an intuitive interface for setting up the show and mixing live from your iPad, and there’s also a customizable Qu-Control app that lets you choose just a few essential controls that you really need in front of you for easy access during the show. Couple these with the Qu-You personal monitoring app for Android / iOS and Qu-SB is a fantastic choice if you’re mixing your own monitors and want to get the same great sound wherever you play.

With all of your settings saved and ready, plus multi-track recording and playback of previous shows for virtual soundchecks, you’ll be all set to play in record time. On top of the 18 on board inputs and 14 outputs, Qu-SB has you future-proofed with plug n’ play expansion up to 38 inputs / 24 outputs via a family of remote AudioRacks.

Mixing Apps
Having massive processing power and advanced functionality is great, but it counts for nothing if you can’t access the controls you need in a heartbeat. Qu-SB is designed to integrate seamlessly with the Qu-Pad iPad app, providing fast, easy access to all settings, including channel processing, meters and RTA views, FX racks, scene management, USB audio control, setup menus and much more.

Preamps
Qu-SB’s sixteen AnalogiQTM total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency. The analoge signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs.

FX
Qu-SB’s dynamics and FX algorithms are derived from the FX used in the iLive pro touring series. Some of the world’s most respected audio engineers have chosen to use iLive’s FX on tour in preference to top-end plug-ins and external FX units. Qu-SB boasts 4 stereo iLive FX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more.

Multitrack Audio Streaming
Qu’s built-in interface streams multitrack audio to your Mac or PC via a flexible patching system: all Input channels and the Main LR can be recorded at the same time, or you may choose to record something different such as FX returns or a pair of mixes.

The returns from the computer can be assigned to the Input channels. The interface is class-compliant on Mac OS X – and drivers are available for Windows systems. Either way, it will be recognized straightaway by any DAW supporting ASIO or Core Audio, including Logic, Cubase, Reaper, and Pro Tools.

QU Ecosystem
Qu provides much more than just a mixer. Qu is an entire ecosystem with Remote AudioRacks allowing I/O to be placed where it’s needed, ME Personal Mixers expanding monitor mixes and enabling simple, time-saving local control, Qu Apps for complete remote setup and wireless mixing on stage or anywhere else in the venue, ProFactory Mic presets to speed up preparation time and ensure the best sound, plus USB recording and DAW integration for powerful workflow optimization from one centerpiece device.

FEATURES
Format
Analog/digital: Digital
Number of channels: 16
Busses/groups: 4
Aux sends: 10
Powered: No
Inputs
Total inputs: 32
Mic preamps: 16
XLR/TRS combo jacks: 0
XLR only jacks: 16
1/4" only jacks: 16
Word Clock: No
RCA in: No
Ethernet: Yes
Outputs
Total main outputs: 2
RCA: No
1/4” main outs: 2
USB Yes
ADAT/optical out: 0
SpeakON 0
AES / EBU: 0
Other Connectivity
Connections: Audio
MIDI I/O: Over USB
Headphone output(s): 1
Wi-Fi: Yes
USB: Yes
FireWire: No
Onboard effects
Compression: Yes
Reverb: Yes
Delay: Yes
Chorus/flange: Yes
Equalization
Type: Parametric
EQ bands: 4
Master graphic: Yes
Other
Width: 17.2"
Height: 6.4"
Depth: 6.9"
Weight: 12.7 lb.
Automation: Yes
Fader type: Virtual
Motorized faders: N/A
Bundled software: Yes
Rackmountable: Yes

Apps and hardware working together seamlessly. order today.
