Audio-Technica Logo
SKU
H73905 000000000

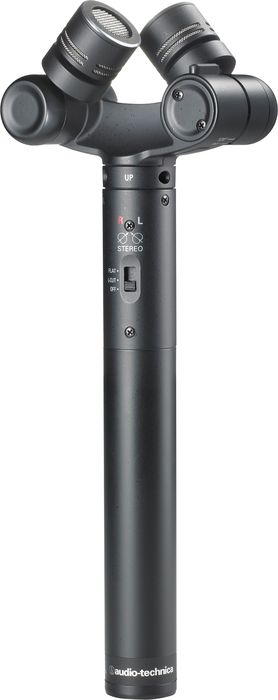

Audio-Technica AT2022 X/Y recording mic with 1/8" connector

  • Write a Review

The AT2022 is a condenser microphone designed for stereo recording. Two unidirectional condenser capsules in an X/Y configuration pivot to allow for ...Read More

Available 01-11-2017

Gold Coverage: (What’s This?)
  • Regular Price:
    $249.00
  • On Sale Today:
    - $62.25
  • Shipping (48 Contiguous U.S. States)
    FREE
  • Sale Price:
    $18700
  Reserve Now Notify Me When This is in Stock
Add to Wish List
Musician's Friend BackStage Pass

Earn up to 1,496 (1x) in bonus points today for this item!

See All Audio-Technica Condenser Microphones
OVERVIEW

Designed for general stereo recording and field sound capture, with excellent channel separation.

The AT2022 is a condenser microphone designed for stereo recording. Two unidirectional condenser capsules in an X/Y configuration pivot to allow for narrow (90º) or wide (120º) stereo operation. The capsules also fold flat for storage and transportation. Designed for general stereo recording and field sound capture, the AT2022 provides the spatial impact and realism of a live sound field. The microphone comes equipped with a stand clamp, AA battery, fuzzy windscreen and .5 m cable that terminates in a 3.5 mm stereo plug.

FEATURES
  • X/Y stereo microphone with unique pivoting electret condenser capsules for ultimate flexibility
  • Provides the spatial impact and realism of a live sound field
  • Battery operation allows use with most recording devices
  • Switchable low-frequency roll-off minimizes pickup of unwanted low-frequency noise
  • User-selectable 90 or 120 stereo operation for narrow or wide pickup patterns
  • Ideal for general stereo recording and field sound capture
  • Excellent channel separation

Improve your stereo recordings at rehearsal, on stage, or in the field. Order today.

SPECIFICATIONS

AT2022 X/Y recording mic with 1/8" connector

  • Elements: Fixed-charge back plate, permanently polarized condenser
    Polar Pattern: X/Y Stereo
    Frequency Response: 20-20,000 Hz
    Low Frequency Roll-Off: 150 Hz, 6 dB/octave
    Open circuit sensitivity: -41 dB (8.9 mV) re 1V at 1 Pa
    Channel Balance: <2.5 dB
    Impedance: 200 ohms
    Maximum Input Sound Level: 122 dB SPL, 1 kHz at 1% T.H.D.
    Dynamic Range: (TYPICAL) 103 dB, 1 kHz at Max SPL
    Signal-to-noise Ratio: 75 dB, 1 kHz at 1 Pa
    Battery Type: 1.5V AA/UM3
    Warning: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the microphone may result.
    Battery Current / Life: 1.2 mA / 500 hours typical (alkaline)
    Switch: Off, on/flat, on/roll-off
    Weitht: 270 g (9.5 oz)
    Dimensions: 192.0 mm (7.56") long,
    65.0 mm (2.56") maximum head diameter,
    21.0 mm (0.83") body diameter
    Ooutput Connector: Integral 3-pin XLRM-type
    Cable: 0.5 m (1.6') long, 3 conductor, shielded, vinyl-jacketed stereo cable with 3-pin XLRF-type connector at microphone end and 3.5 mm (1/8") TRS connector at output end
    Accessories Furnished: AT8405a stand clamp for 5/8"-27 threaded stands; fuzzy windscreen; battery; soft protective pouch
Reviews
Loading....

Review Snapshot

by PowerReviews
Audio-TechnicaAT2022 X/Y recording mic with 1/8" connector

5.0

(based on 2 reviews)

Ratings Distribution

  • 5 Stars



    (2)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 2 customers

Displaying reviews 1-2

Back to top


5.0

Awesome

By Mojostudio

from Georgia

About Me Experienced

Verified Buyer

Pros

  • Clear Sound
  • Compact
  • Easy To Use

Cons

    Best Uses

    • Amateur Recording
    • Home Studio
    • Performances
    • Professional Recording

    Comments about Audio-Technica AT2022 X/Y recording mic with 1/8" connector:

    Great sounding stereo mic, not boomy in the lower range and not harsh in the mids or highs. Reasonable self noise hasn't show any problems in quieter passages, though your preamps will play a great part in that. Designed for use with portable recorders but signal can be split out for short distances with a splitter adapter (unbalanced outputs). Bottom line is it sounds good and that's what counts, very natural sound.

    (2 of 2 customers found this review helpful)


    5.0

    Brilliant product

    By Chris Fitzgerald

    from Louisville, KY

    Comments about Audio-Technica AT2022 X/Y recording mic with 1/8" connector:

    Using this with a video camera and a field recorder, and the design is perfect for both. It allows me to put the mic closer to what's happening (i.e. concert setting, video segment shoot, etc.) but keep the recording device back where it needs to be. A stereo condenser mic setup can be a real pain to move around if done the old way (two mics, mic stand mount for x/y alignment, two cables to the preamp, preamp, cable from the preamp to the recorder, etc.). This self contained unit replaces all of that, and folds up to fit in your pocket as well. Only the RDE NT4 has the same features, and it's over twice as expensive. This is an excellent product.

    Displaying reviews 1-2

    Back to top
