ATW-R1810 1800 Series Single-Channel Receiver

Play Video

ATW-R1810 1800 Series Single-Channel Receiver

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Compact unit is easy to mount on your camera.

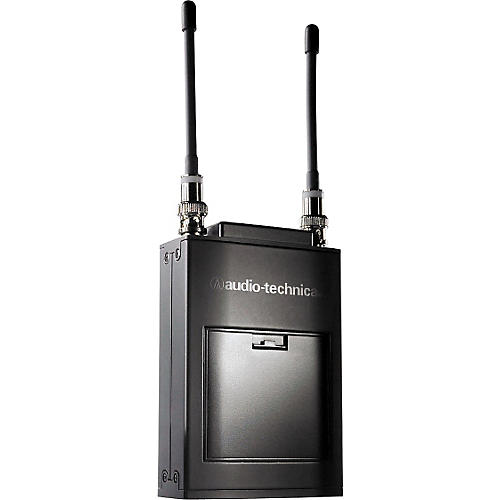

The Audio Technica ATW-R1810 single-channel receiver has true diversity operation: two antennas feed two completely independent RF sections on the same frequency; automatic logic circuitry selects the superior signal. The ATW-R1810 receiver features BNC-type antennae connectors, output and monitor levels, a balanced XLR output and a LCD (Liquid Crystal Display) that shows battery status and frequency settings.

Features

Compact receiver is easy to mount on a camera
UHF reception with 996 frequencies selectable in 25 kHz steps
Automatic frequency scanning for easy selection of open channels
Tone Lock squelch system eliminates interference when transmitter is off
Balanced audio output
Headphone monitor output with independent level control
Soft-touch controls for easy frequency selection
True Diversity operation for resistance to multi-path interference and dropouts
LCD frequency and battery status display with backlight
Antenna and AF Peak LED indicators
Easy, user-friendly operation
Clear, natural sound quality
Powered by AA batteries

ATW-R1810 1800 Series Single-Channel Receiver Specifications:

Receiving System: Dual independent RF sections, automatic-switching diversity
Image Rejection: >50 dB typical
Signal-to-Noise Ratio: 104 dB at 30 kHz deviation (A-weighted), maximum modulation 37 kHz
Total Harmonic Distortion: <1% (±10 kHz deviation at 1 kHz)
Sensitivity: 25 dBuV, (S/N 60 dB at 5 kHz deviation, A-weighted)
Audio Output (balanced): 27 mV (at 1 kHz, ±5 kHz deviation)
Output Connector: 3-pin mini XLR (TA3M-type)
Monitor Headphone Output (typical): 35 mW max., 32 ohm load
Monitor Headphone Jack: 3.5 mm TRS, signals on both Tip and Ring
External Power Requirements: 12V DC nominal, 500 mA
Batteries (not included): Four 1.5V AA alkaline
Current Consumption (battery): 315 mA typical
Battery Life: 10 hours typical, depending on battery type and use pattern
Dimensions: 2.95" (75.0 mm) W x 4.92" (125.0 mm) H x 1.25 (32.0 mm") D
Net Weight: (without batteries) 10.5 oz. (300 grams)
Accessories Included: Two flexible UHF antennas; one 18" TA3F to XLRM
output cable; belt pouch
