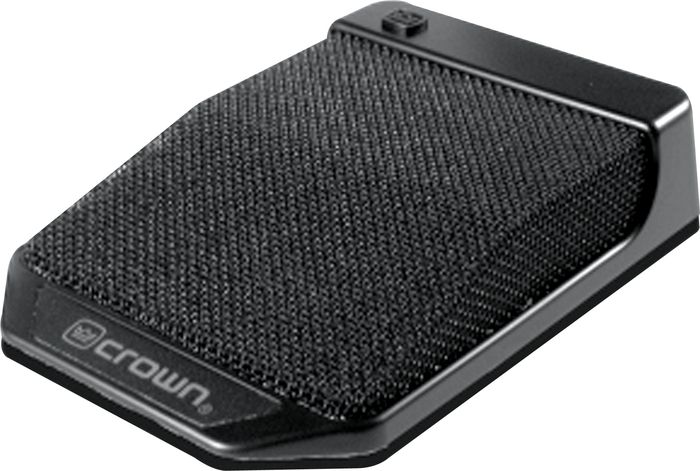

Crown PCC170 Surface Mount Supercardioid Boundary Mic
- Write a Review
The CROWN PCC-170 is a surface-mounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the mo...Click To Read More About This Product
6-Month* financing available.
Reproduces the voice with a clean, clear and natural sound.
The CROWN PCC-170 is a surface-mounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers. Because of its highly directional pickup pattern, the CROWN PCC-170 minimizes background noise and feedback. The microphone reproduces the voice with a clean, clear and natural sound.
Since the microphone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase. This coherent addition of direct and reflected waves increase sensitivity 6 dB and prevents phase cancellations.
The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48V phantom power, the PCC-170 has a low-impedance mic level balanced output which permits long cable runs without hum pickup or high-frequency loss.
Supercardioid polar pattern offers high-gain-before-feedback
Phase coherent cardioid design prevents coloration from surface sound reflections
Wide and smooth frequency response
Three-position bass-tilt switch
Small and inconspicuous
Houses of worship
Order a boundary mic with enhanced clarity and reach.
Frequency range: 50 to 20,000 Hz
Sensitivity: 22 mV/Pa (-30 dBV)
Max. SPL: 120 dB
Equivalent noise level: 22 dB-A
Signal/noise ratio: 72 dB (A-weighted)
Impedance: 150 ohms
Power requirement: 12 to 48 V phantom power to DIN/IEC
Connector: Switchcraft TB3M
Cable: 170 g (6 oz.)
Dimensions: 8.6 x 12.3 x 2.3 cm (3.4 x 4.84 x 0.9 in.)
Net weight: 170 g (6 oz.)
