Product 489743

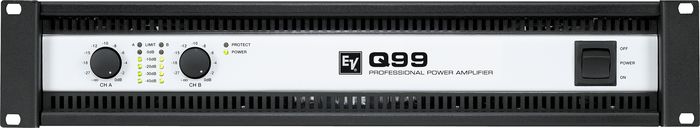

Electro-Voice Q99 Power Amplifier

  • Write a Review

The Electro-Voice Q99 is a rackmountable power amplifier that offers reliable, high-output power, high efficiency, and legendary pro audio performanc...Read More

We're sorry—this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Similar Items:
OVERVIEW

Dependable, high-output power.

The Electro-Voice Q99 is a rackmountable power amplifier that offers reliable, high-output power, high efficiency, and legendary pro audio performance. It's the premium choice as system drive for a variety of mobile and club sound systems like ZX, Tour-X, and Phoenix loudspeaker families.

FEATURES
  • Comprehensive protection system — Protects against overheating, overload, short-circuit, HF, AND DC

Keep your gear powered and protected—order the Q99 now.

SPECIFICATIONS

Q99 Power Amplifier

  • Maximum midband output power: 1250W @ 2 ohms, 900W @ 4 ohms, 550W @ 8 ohms (THD = 1%, 1 kHz, Dual-channel)
  • Rated output power: 800W @ 4 ohms, 400W @ 8 ohms (THD < 0.1%, 20Hz–20kHz)
  • Maximum single-channel output power (Dynamic-headroom IHF-A): 2450W @ 2 ohms, 1400W @ 4 ohms, 700W @ 8 ohms
  • Maximum single-channel output power (
  • Continuous, 1 kHz): 1700W @ 2 ohms, 1100W @ 4 ohms, 630W @ 8 ohms
  • Maximum bridged output power (THD=1%, 1kHz): 2800W @ 4 ohms, 1800W @ 8 ohms
  • Maximum RMS voltage swing: 78.8V
  • Power bandwidth (THD = 1%, ref. 1kHz, half power @ 4 ohms): < 10Hz–30kHz
  • Voltage gain (ref. 1kHz): 32dB
  • Input sensitivity: +5.1dBu
  • THD at rated output power (MBW = 80 kHz, 1 kHz): < 0.03%
  • IMD-SMPTE (60 Hz, 7 kHz): < 0.1%
  • DIM30 (3.15 kHz, 15 kHz): < 0.05%
  • Maximum Input Level: +21 dBu (8.69 Vrms)
  • Crosstalk (ref. 1 kHz, at rated output power) < -80 dB
  • Frequency Response (ref. 1 kHz 10Hz–40 Hz (±1 dB)
  • Input Impedance (active balanced): 20 kOhm
  • Damping Factor: 1 kHz > 300
  • Slew rate: 27 V/ Μs
  • Signal-to-noise-ratio amplifier (A-weighted): >109 dB
  • Output noise (A-weighted): < -71dBu
  • Output stage topology: Class H
  • Power consumption (1/8 maximum power @ 4 ohms): 700W
  • Protection: Audio limiters, high temperature, DC, HF, Back-EMF, peak current limiters, inrush current limiters, turn-on delay
  • Cooling: Front-to-rear, 3-stage fans
  • Ambient temperature limits: 40°—105–F
  • Safety Class: I
  • Dimensions: 483mm W x 88.1mm H x 421.5mm D
  • Weight: 35 lb.
  • Signal processing: LPN, switchable
