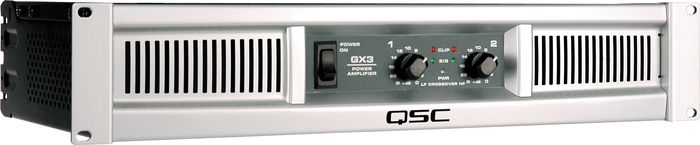

QSC GX3 Stereo Power Amplifier

SKU
#481804000000000
  • MSRP:
    $399.00
  • Your Savings:
    - $99.01
  • Free Shipping on Orders over $49
  • Your Price:
    $29999

In Stock & Ready To Ship

Gold Coverage: (What’s This?)

(Most Popular)
+ Add to Wishlist
QSC

Maximum performance at a modest price plus flexible I/O.

The QSC GX3 Stereo Power Amplifier is ideal for professional entertainers who require maximum performance and portability on a limited budget. QSC designers have optimized output and appearance of the GX3 power amp while reducing raw material cost and weight. The rackmount GX3 power amplifier is ideal for speakers in the 300W (Program) range and supplies maximum possible power to 4 ohm and 8 ohm loads.

The GX3 power amp uses the latest QSC Grounded Collector output system for optimum cooling of the critical power transistors. The GX3 power amp's true Class B biasing system combines maximum thermal efficiency with excellent audio performance.

Features

  • Power levels matched to the most popular speakers used by entertainers
  • Optimized for maximum real-world headroom into 4Ω and 8Ω speaker systems
  • Inputs: XLR, 1/4" TRS and phono input connectors for compatibility with any source
  • Outputs: Speakon® combo accepts, 1/4" (TS) plugs or Speakon 2-pole and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems.
  • Minimum depth chassis (10.1"/257 mm) fits in compact, inexpensive effects racks
  • Lightweight — less than 26 lbs (12.5 kg)
  • Detented gain controls for precise setting and matching of sensitivity
  • GuardRail™ automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
  • Front panel LEDs monitor Power, Signal and Clipping
  • Subwoofer/Satellite crossover built-in

Order today and enjoy legendary QSC quality and reliability.

GX3 Stereo Power Amplifier Specifications:

  • Power Rating:
  • 8Ω / both channels driven / 1 kHz: 300 W
  • 8Ω / single channel driven / 1 kHz: 350 W
  • 4Ω / both channels driven / 1 kHz; 425 W
  • 4Ω / single channel driven / 1 kHz; 500 W
  • 2Ω / both channels driven / 1 kHz; 200 W
  • Distortion (typical): 20 Hz - 20 kHz: 1 dB below rated power 8Ω: less than 0.05% / 4Ω: less than 0.1%
  • Signal to Noise: (20 Hz - 20 kHz) 100 dB
  • Input Sensitivity: 1.2 Vrms
  • Voltage Gain: (8Ω) 32.2 dB
  • Output Circuitry: Class B
  • Power Requirements: (1/8 power, pink noise at 4Ω, 120 V) 6.3A
  • Frequency Response: 20 Hz - 20 kHz, +0, 1 dB
  • Dynamic Headroom (4Ω): 2 dB
  • Damping Factor: 100
  • Input Impedance (Ω): Greater than 20k (balanced)
  • Maximum Input Level: +24 dB (16 Vrms)
  • Input Connectors (each channel): 3-pin XLR and 1/4" TRS, balanced, parallel Phono, unbalanced
  • Output Connectors (each channel) Speakon®, 1/4", Binding Posts
  • Amplifier and Load Protection: Short circuit, open circuit, thermal, RF protection
  • Load protected against DC faults
  • Front Panel Controls and Indicators: Gain controls, 21 detents
  • Red Clip LEDs, proportional, 0.1% THD threshold
  • Green Signal LEDs, threshold -35 dB
  • Blue Power LED, AC on
  • Rear Panel Controls: Full Range / Crossover switch
  • 100 Hz, 3rd order LP (sub), 2nd order HP (top)
  • Dimensions (HWD): 3.5" (2RU) x 19" x 10.1" (89 mm x 483 mm x 257 mm)
  • Weight: Shipping / Net 30 (13.5 kg) / 25 lbs (11.5 kg) Agency Approvals: UL, CE, RoHS/WEEE compliant
Write a Review Overall Rating Customer Reviews 16 See all 16 customer reviews...

Great little amp

| Review By: papahemi69 | 8 months, 1 week ago

2 people out of 3 found this review helpful

Features:
Quality:
Value:
Overall:

Great little amp worth the price. Has great power and sound. Brings my keyboards and organs to life. Would recomend this amp to all. Get one today.

Do you own the product?:
Yes
Have you used the product?:
Yes
Musical Experience:
5 years
Style of music you play:
classic rock
Where you live:
N.Y.

Did you find this review helpful? yes no1095421

Great little amp

| Review By: papahemi69 | 8 months, 1 week ago

2 people out of 3 found this review helpful

Features:
Quality:
Value:
Overall:

Great little amp worth the price. Has great power and sound. Brings my keyboards and organs to life. Would recomend this amp to all. Get one today.

Do you own the product?:
Yes
Have you used the product?:
Yes
Musical Experience:
5 years
Style of music you play:
classic rock
Where you live:
N.Y.

Did you find this review helpful? yes no1095421

QSC GX3 Stereo Power Amp

| Review By: Chris LaPlante | 9 months, 3 weeks ago

2 people out of 2 found this review helpful

Features:

The features are what you expect to find on most modern amps. Haven't had a need for the built in 100 Hz crossover, but when I decide to buy a separate sub I will definitely use it. The one feature I would add is handles on the front for easier mounting.

Quality:

Built tough, and capable of handling tour use. Love the optional rear rack mounts. The sound quality is crisp and clean. I use the GX3 with a couple of Bose 802's and I just love the sound that it puts out.

Value:

Just the right amount of power for my needs without having to sell a kidney to get it. Great value.

Overall:

I think the amp is perfect for a medium to large venue/audience setting. It's not too heavy and doesn't take up a lot of space.

I would definitely recommend this amp to anyone who needs some power for their speakers and who is on a budget.

Do you own the product?:
Yes
Have you used the product?:
Yes
Musical Experience:
Hobbyist/Professional
Style of music you play:
Rock/Alternative/Some Jazz
Where you live:
Connecticut

Did you find this review helpful? yes no1092665

SOLD ON QSC!

| Review By: The guitar guy | 1 year, 2 weeks ago

1 people out of 1 found this review helpful

Features:
Quality:
Value:
Overall:

The sound quality it there with this amp.      I'm sold now on QSC and will buy only their amps for any future needs.

I had some extra rack equipment sitting around so I put together a stereo system for my party room.      This amp was perfect.      I'm runing a mono signal and using the bi-amp function to power two PV118 cabs and two Peavey 15 inch monitor speakers.      For pre-recorded music, it's a great set-up.      The party room shakes when I turn up the lows.      I'm very happy with the quality of this amp.      The price was great for what you get.

Well built.

425 watts per side at 4 ohms with bi-amp 100 hz x-over for this price!

Do you own the product?:
Yes
Have you used the product?:
No
Musical Experience:
retired weekend rocker
Style of music you play:
classic rock
Where you live:
North Dakota

Did you find this review helpful? yes no939152

NICE HEAD

| Review By: Mobilervdj | 1 year, 2 months ago

1 people out of 1 found this review helpful

Features:
Quality:
Value:
Overall:
Got this GX3 to power a pair Gemimi Dueal 15 3-ways. Works Great. plane to upgrade in 6 mos. And then use GX3 to power Subs. Buy this you can't go wrong. Very Nice Power Head.
Do you own the product?:
No
Have you used the product?:
No
Musical Experience:
DJ
Style of music you play:
ALL
Where you live:
Benson, Az.

Did you find this review helpful? yes no807570

See all 16 customer reviews...
