- Product H70018

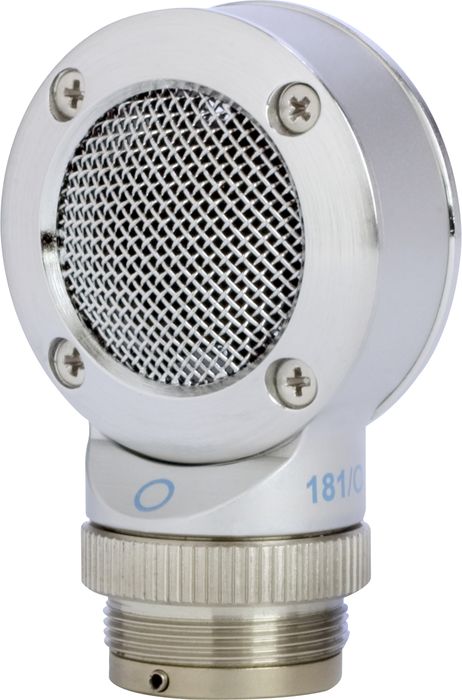

Shure RPM181/O Omnidirectional Capsule for Beta 181
- Write a Review
The Shure RPM181/O is an omnidirectional condenser capsule for the versatile Shure Beta 181 microphone. The RPM181/O l capsule is ideal for use for a...Click To Read More About This Product
We're sorry-this item is unavailable.
Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.Customers Also Viewed:
An omnidirectional capsule for the versatile Shure 181 mic.
The Shure RPM181/O is an omnidirectional condenser capsule for the versatile Shure Beta 181 microphone. The RPM181/O l capsule is ideal for use for ambient recordings or for instrument ensemble applications.
The Shure Beta 181 (sold separately) is a multipurpose instrument microphone and can be used on a wide variety of applications including guitars, bass and drums (overheads and snares). It has a small diaphragm design that provides superior audio with textbook polar responses in a form factor compact enough to get close to the source in the tightest conditions.
There are four different capsules available for the Beta 181 microphone: Cardioid (RPM181/C), Supercardioid (RPM181/S), Bi-directional (RPM181/BI), Omni-directional (RPM181/O). This makes the Beta 181 an extremely versatile and cost-effective mic that allows the user to interchange capsules according to the application. (Additional capsules sold separately).
- An omnidirectional capsule for the Shure Beta 181 mic
Expand the functionality of your Beta 181 mic.
RPM181/O Omnidirectional Capsule for Beta 181
- Cartridge Type: Electret Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 to 20,000 Hz
- Output Impedance: 110 Î©
- Sensitivity (open circuit voltage, @ 1 kHz, typical: -52.0 dBV/Pa (2.6 mV)
- Maximum SPL (1 kHz at 1% THD)
- 2500 Î© load: 157.0 dB SPL
- 1000 Î© load: 154.0 dB SPL
- Signal-to-Noise Ratio: 70.5 dB
- Dynamic Range:
- 2500 Î© load: 133.5 dB
- 1000 Î© load: 130.5 dB
- Clipping Level @ 1 kHz, 1% THD:
- 2500 Î© load: 10.5 dBV
- 1000 Î© load: 7.5 dBV
- Self Noise (equivalent SPL,A-weighted, typical): 23.5 dB SPL-A
- Common Mode Rejection (20 to 20,000 kHz): Â±55 dB
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Power Requirements 11-52 V DC phantom power (IEC-61938): 2.4 mA, maximum
- Capsule width: 1.36" (34.54mm)
