XLogic X-Rack Master Bus Module
false falseWe're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.
Overview
A full-featured, yet compact console master bus.

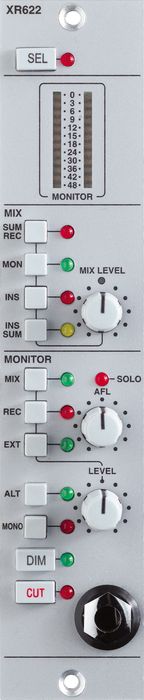

The Solid State Logic XLogic X-Rack Master Bus Module is a vital component that turns the X-Rack from a processing solution into a mixer. The Master Bus Module provides a signal path to the 2 X-Rack stereo buses for all of the other modules and offers you a compact console master section that is surprisingly sophisticated for its size.
Please Note. The XR622 X-Rack Master module operates in conjunction with the XR625 X-Rack Microphone Amp and XR623 X-Rack Line Return modules.
Please Note. The XR622 X-Rack Master module operates in conjunction with the XR625 X-Rack Microphone Amp and XR623 X-Rack Line Return modules.
Features
- Controls the X-Rack's two internal stereo busses
- 2 pair of speaker outputs with dedicated controls for level, dim, and cut
- Master Level control & metering
- Master Insert & additional 'Insert Sum' feature
- Monitor Output Level control
- Master section external MIDI control
- Monitor Output AFL Solo
- Monitor Output Routing
- Dedicated Monitor Dim & Cut switching
- Headphone Output Section
Specs
XLogic X-Rack Master Bus Module Specifications:
- Mix Bus Performance:
- Gain: Continuously variable from ”8 to 0dB
- THD + Noise (+24dBu applied, 0dB gain): < 0.005% from 20Hz to 10kHz; < 0.008% at 20kHz
Frequency Response: ±0.1dB from 20Hz to 20kHz; ”3dB at 150kHz - Equivalent Input Noise (Input terminated with 150 ohms): < ”88dBu
- Record Bus Performance:
- THD + Noise (+24dBu applied, 0dB gain): < 0.005% from 20Hz to 20kHz
Frequency Response: ± 0.1dB from 20Hz to 20kHz; ”3dB at 150kHz - Equivalent Input Noise (Input terminated with 150 ohms): < ”88dBu
