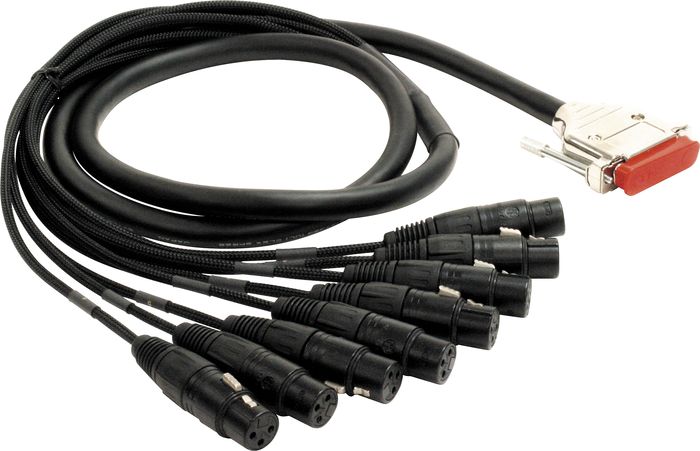

Mogami Gold 8 Channel DB25-XLR Female Snake Cable 5 Feet
- Write a Review
- Product #483346
-
- MSRP:
- $209.95- $439.99
-
- Your Savings:
- up to - $220.04
-
Free Shipping on Orders over $25
-
- New Starting At:
- $20995
- Free Shipping
- Top Seller
- Price Match
- Satisfaction Guarantee
- Ships Worldwide
Also consider
-
res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938Mogami Gold 8 Channel TRS-XLR Female Snake Cable 10 Feet $299.95 - $349.95
res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938Apogee PC32-IFC - Symphony PCI Digital Interconnect Cable 3 ... $59.95 - $99.95
res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938Mogami Gold Neglex Quad Microphone Cable for Studio Neutrik ... $39.95 - $109.95
res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938Mogami Gold AES/EBU Interconnect Cable with Neutrik XLR 6 F... $54.95 - $76.95
res13052317887919329985938
-
res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938American Recorder Technologies 1/4" Female to RCA Male Adapt... $1.67 - $2.19
res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938
-
res13052317887919329985938Mogami Gold Stage Mic Cable with Neutrik XLR Connectors 20 ... $69.95 - $139.95
res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938Mogami Silver Series 1/4" Straight Instrument Cable 12 Foot $10.99 - $39.95
res13052317887919329985938
-
res13052317887919329985938Mogami Gold Patch Cable with Right Angle Connectors 18 inch $24.95 - $25.95
res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938Mogami Gold High-Definition Neutrik 1/4" Straight Instrument... $49.95 - $62.95
res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938Mogami Platinum Instrument Cable with Right Angle to Straigh... $109.95 - $164.95
res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938Mogami Platinum Guitar Patch Cable 6 Foot Right Angle to Str... $64.95 - $69.95
res13052317887919329985938
- res13052317887919329985938
- res13052317887919329985938
-
res13052317887919329985938Mogami Gold Studio Unbalanced 1/4" to 1/4" Patch Cable with ... $39.95 - $43.95
Mogami Gold 8 Channel DB25-XLR Female Snake Cable
Incredible Cable.
Mogami Gold multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, superflexible and easy to use.
Features
- Individually twisted shielded pairs.
- XLPE (Cross Linked Polyethylene) insulation provides superb electrical characteristics and will not melt or shrink back during soldering.
- Rugged and flexible construction that is easy to handle, even at temperatures down to -20 deg C (-4 deg F).
- Easy cable identification system:
- Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped.
- Outer jackets of each pair are color coded by standard resistor color code, allowing quick identification of conductor pairs.
- Inner conductors are also color coded based on the international standard resistor color code. Each pair is color coded by jacket and conductor color combination.
- Each channel has a drain wire and served (spiral) bare copper shield. The drain wires simplify termination and can be crimped by the same size contact as the inner conductor pair.
Call or click now to order.
Gold 8 Channel DB25-XLR Female Snake Cable Specifications:
- Conductor: 30/0.08A (0.15mm sq˜) #26AWG (30Å~#40AWG)
- Insulation: 1.0 XLPE (Cross Linked Polyethylene) (0.039")
- Drain Wire: 7/0.18TA (0.18mm sq˜) #25AWG (7Å~#33AWG)
- Served Shield: Approx. 58/0.10A Served (spiral) Shield
- Jacket (Covering): 2.8 Flexible PVC (0.110")
- Identification: See core number identification table
- DC Resistance at 20 deg C: Inner Pair Conductor: 0.13W/m(0.040W/Ft); Shield: 0.031W/m(0.0095W/Ft)
- Capacitance at 1kHz, 20 deg C (Partial Capacitance Value) See Figure (1): K0: 130pF/m(40pF/Ft); K1: 12pF/m(3.7pF/Ft)
- Inductance: 0.6µH/m(0.18µH/Ft)
- Electrostatic Noise (Hum Pick-up)*: 2.5mV Max.
- Electromagnetic Noise at 10kHz*: (Inductance of the toroidal core: 595µH): 0.1mV Max.
- Microphonics*: Method: Stepping on cable: 50mV Max. at 50kW Load
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance at DC 125V, 20 deg C: 100000 MW Å~ m Minimum
- Tensile Strength of one pair (26 deg C, 65% RH): 274N
- Emigration: Non-emigrant to ABS resin
- Applicable Temperature: -20 deg C~ +70 deg C(-4 deg F~ +158 deg F)
- Standard: UL13 CL2X 60 deg C / UL 20002 AWM 30V 60 deg C VW-1
- Conductor: 7/0.18A (0.178mm©˜) #25AWG (7Å~#33AWG)
- Insulation: 1.05 XLPE (Cross Linked Polyethylene) (0.0413")
- Drain Wire: 7/0.18A (Exactly same as conductor)
- Shield: Approx. 58/0.10A Served (spiral) Shield
- Jacket (Covering): 2.8 Flexible PVC (0.110")
- Identification: See core number identification table
- DC Resistance at 20 deg C: Inner Pair Conductor: 0.11W/m(0.0336W/Ft)
- Shield: 0.031W/m(0.0095W/Ft)
- Capacitance at 1kHz, 20 deg C (Partial Capacitance Value) See Figure (2): K0: 140pF/m(42.7pF/Ft)
- K1: 12pF/m(3.7pF/Ft)
- Inductance: 0.6µH/m(0.18µH/Ft)
- Electrostatic Noise (Hum Pick-up)*: 2.5mV Max.
- Electromagnetic Noise at 10kHz*
- (Inductance of the toroidal core: 595µH): 0.1mV Max.
- Microphonics* Method: Stepping on cable: 50mV Max. at 50kW Load
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance at DC 125V, 20 deg C: 100000 MW Å~ m Minimum
- Tensile Strength of one pair (26 deg C, 65% RH): 274N
- Emigration: Non-emigrant to ABS resin
- Applicable Temperature: -20 deg C~ +70 deg C(-4 deg F~ +158 deg F)
- Standard: UL13 CL2 60 deg C
