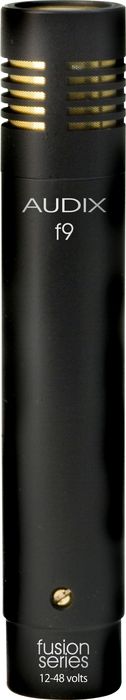

Audix F9 Small Diaphragm Condenser Microphone
- Write a Review
- SKU
- #584191000000000
-
- MSRP:
- $220.00
-
- Your Savings:
- - $61.00
-
Free Shipping on Orders over $25
-
- Your Price:
- $15900
- Free Shipping
- Top Rated
- Top Seller
- Price Match
- Satisfaction Guarantee
-
res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
-
res13052218732544515157372Audix UEM-81S Battery Powered Shotgun Condenser Microphone L... $254.15 - $299.00
res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
-
res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
-
res13052218732544515157372Live Wire Advantage Deluxe M Series Microphone Cable 15 Foo... $21.99 - $59.99
res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
-
res13052218732544515157372Live Wire Advantage Standard EXM Series Microphone Cable 15... $14.99 - $59.99
res13052218732544515157372
- res13052218732544515157372
-
res13052218732544515157372Rapco Horizon HZ Series Cable Female XLR to Male 1/4" Black ... $12.99 - $26.99
res13052218732544515157372
-
res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
- res13052218732544515157372
An excellent multipurpose instrument mic with an interchangeable capsule.
The Audix f9 small-diaphragm condenser mic is known for its clear, accurate response—particularly in the upper-frequency range. Ideally suited for a wide variety of acoustic instruments, the Audix f9 mic is an excellent choice for cymbals, overhead, percussion table, and ambient room miking.
With a uniformly controlled cardioid polar pattern, the Audix f9 microphone captures instrument acoustics and at the same time isolates their sounds from the rest of the instruments on stage. The Audix f9 is equipped with a 16mm pre-polarized capsule with a gold vapor diaphragm and a frequency response of 40Hz-20kHz.
The Audix f9 is ultra easy to position, durable, and manufactured with high standards and tight tolerances. Its roadworthy construction includes a precision-cast zinc-alloy body, black finish, laser-etched model number, steel mesh grill, gold XLR connector, and a tension-fit heavy-duty nylon mic clip.
User tips:
The f9, an excellent choice to mic any kind of acoustic instrument. It has a cardioid pick-up pattern, which helps to eliminate sound from other instruments on stage from bleeding into the microphone. However, the f9 is much more sensitive than a dynamic and will pick-up sound from a greater distance. The acoustic nature of the instrument being miked, along with how loud it is, will determine how far the microphone should be from the sound source. For example, the f9 can be placed 1 - 2 feet above the cymbals of a drum kit and still pick up plenty of sound, whereas for a acoustic guitar, the mic will need to be placed within 8 - 12 inches to be effective. Allow a distance of 2-3 feet between microphones to avoid phase issues.
Phantom power operation:
The f9 will NOT operate without phantom power. The f9 requires 12-48V phantom power, which is available on most professional mic preamps and mixing devices. If phantom power is not available on your equipment, you will have to purchase a phantom power supply (such as the Nady SMPS #180162, or ART Phantom I #180266) ). Avoid plugging or unplugging the microphone from a PA system unless the channel is muted or the volume of the system is turned down. Failure to do so may result in a loud popping noise, which could seriously damage the speakers in the PA system.
Features
- Excellent multipurpose instrument mic Interchangeable threaded capsule
- Ideal for medium field (8" - 12") or far field (12" - 24")
- Cast zinc alloy housing
- Mic stand adapter
- Carrying pouch
- 3-year warranty
- Applications:
- Cymbals
- Overheads
- Hi-hat
- Percussion
- Audience mic
F9 Small Diaphragm Condenser Microphone Specifications:
- Transducer Type: Pre-polarized condenser
- Frequency response: 40Hz-20kHz
- Polar pattern: Cardioid
- Output impedance: 200 ohms
- Sensitivity: 8 mV/Pa@1k
- Capsule technology: Gold vapor diaphragm
- Off-axis rejection: ≥ 24dB
- Noise floor: 22dB (A-weighted)
- Signal-to-noise ratio: 72dB
- Dynamic range: 115dB
- Maximum SPL: ≥ 137dB
- Power requirements: 12-48V phantom power
- Connector: 3-pin gold-plated male XLR connector
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Housing: Cast zinc alloy
- Finish: Black coat
- Weight: 3.2 oz. (91 g)
- Length: 4-3/8" (111 mm)
-
