SKU
H72800 000000000

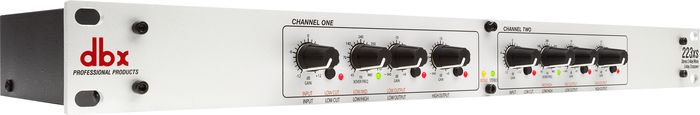

dbx 223xs Stereo 2-Way/Mono 3-Way Crossover

  • Write a Review

With the dbx 223xs Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in bui...Read More

In Stock & Ready To Ship

Gold Coverage: (What’s This?)
  • List:
    $259.95
  • Shipping (48 Contiguous U.S. States)
    FREE
  • Your Price:
    $17995
  Add to Cart
Add to Wish List
See All dbx Crossovers
Musician's Friend Backstage Pass

Earn up to 1,440 in points.

OVERVIEW

With the dbx 223xs Crossover you'll get great performance, ultra low-noise, rugged reliability and four decades of dbx knowledge and expertise in building the world's finest processors. The dbx 223xs Crossover uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. By directing only the specific frequency bands to each speaker driver the 223xs leaves your amplifiers free to use their full power on the usable signal eliminating distortion and giving your PA system a cleaner and better sound.

The dbx 223xs is a dual channel crossover with all the features you would expect from a professional product. It features Linkwitz-Riley 24dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid "click" controls to the high quality XLR inputs and outputs.

Great performance, ultra low-noise, and rugged reliability.

FEATURES
  • XLR balanced ins and outs
  • Mode switch for stereo 2-way or mono 3-way operation
  • Low frequency summed (subwoofer) output
  • x10 range switch on both channels
  • 40Hz high pass (low cut) filter both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • 24dB per octave Linkwitz-Riley filters (the professional standard)
  • Stereo/Mono status LEDs indicate the selected mode
  • dbx 2 year parts and labor as standard
  • CSA NRTL/C approved
  • CE compliant

Get more sound to your amps and speakers. Order today!

SPECIFICATIONS

223xs Stereo 2-Way/Mono 3-Way Crossover

  • INPUTS
  • Connectors: XLR (pin 2 hot)
  • Type: Electronically balanced/unbalanced, RF filtered
  • Impedance: Balanced >50k ohm, unbalanced >25k ohm
  • Max Input Level: >+22dBu balanced or unbalanced
  • OUTPUTS
  • Connectors: XLR
  • Type: Electronically-balanced/unbalanced, RF filtered
  • Impedance: Balanced 60 ohm, unbalanced 30 ohm
  • Max Output Level: >+20dBu balanced/unbalanced into 600 ohms or greater
  • CROSSOVER FREQUENCIES
  • Stereo Mode: Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  • Mono Mode: Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  • Mid/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
  • Filter type: Linkwitz-Riley, 24 dB/octave, state-variable
  • FUNCTION SWITCHES
  • Front Panel (Low Cut): Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
  • Phase Invert: Inverts the phase at the output, one switch per output
  • Rear Panel: x10: Multiplies the crossover frequency range by 10, one switch per channel
  • Mode: Selects stereo/mono and 2/3-way operation.
  • LF sum: Selects normal (stereo) or mono-summed low frequency operation.
  • INDICATORS
  • Stereo Operation: Green LED
  • Mono Operation: Yellow LED
  • Low Cut: Red LED per channel
  • x10 Green LED per channel
  • Phase Invert: Red LED per output (3 per channel)
  • SYSTEM PERFORMANCE
  • Bandwidth: 20Hz to 20kHz, +0/-0.5dB
  • Frequency Response: < 3Hz to > 90kHz, +0/-3 dB
  • Dynamic Range: >106dB, unweighted, any output
  • THD + Noise: <0.004% at +4dBu, 1kHz
  • <0.04% at +20dBu, 1 kHz
  • Interchannel Crosstalk: <-80dB, 20Hz to 20kHz
  • CMRR: >40dB, typically >55dB at 1kHz
  • Signal-to-Noise (Ref: +4dBu, 22kHz measurement bandwidth)
    Stereo Mode >94dB (Low Output); >91dB (High Output)
    Mono Mode: >94dB (Low Output); >93dB (Mid Output); >91dB (High Output)
  • POWER SUPPLY
  • Operating Voltage: 100 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50/60HZ
  • Power consumption: 15W
  • Operating Temperature: 32°F to 113°F (0°C to 45°C)
  • PHYSICAL
  • Dimensions: 1.75" H X 6.9" D X 19" W (4.5cm x 17.5cm x 48.26cm )
  • Weight: 3.7 lbs. (1.7 kg)
Reviews
Loading....

Review Snapshot

by PowerReviews
dbx223xs Stereo 2-Way/Mono 3-Way Crossover

3.8

(based on 5 reviews)

Ratings Distribution

  • 5 Stars



    (2)

  • 4 Stars



    (2)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (1)

80%

of respondents would recommend this to a friend.

Pros

  • Easy to use (4)
  • Good audio (3)
  • Versatile (3)

Cons

No Cons

Best Uses

  • Performances (3)
    • Reviewer Profile:
    • Experienced (3)

Reviewed by 5 customers

Sort by

Displaying reviews 1-5

Back to top


1.0

Not recommended

By

from Russell, KY

About Me Experienced

Pros

    Cons

    • Unreliable

    Best Uses

      Comments about dbx 223xs Stereo 2-Way/Mono 3-Way Crossover:

      I bought this unit brand new and have owned for two and a half years. in that two and a half years I have used it approximately 15 times and always kept in a rack. One evening at a gig it started getting a noise from the low output. I exchanged it with a friends crossover and that fixed the problem for the next couple of gigs. I contacted DBX and had to send it back to be repaired at a cost of one hundred twenty Plus shipping For a one hundred eighty unit. They sent it back and I have not tried it out since sending the unit back so not really sure if they fixed the problem. If you need a crossover don't waste your time with this unit. I expected much more quality from DBX/Harman.

      Comment on this reviewHelp Icon


      4.0

      It does what it's supposed to do!!

      By

      from Vermont

      About Me Experienced

      Pros

      • Clear Sound
      • Easy To Use
      • Powerful
      • Versatile

      Cons

        Best Uses

        • Amateur Recording
        • Home Studio
        • Performances

        Comments about dbx 223xs Stereo 2-Way/Mono 3-Way Crossover:

        Does what it says......easy set up and dial in room booming bottom or an easy comprimise of highs and lows....you can shake the room with this unit!!

        Comment on this reviewHelp Icon


        5.0

        Great Crossover

        By

        from Somewhere in S.C.

        About Me Professional Musician

        Pros

        • Clear Sound
        • Easy To Use
        • Professional Functions
        • Versatile

        Cons

          Best Uses

          • Events
          • Home Studio
          • Mobile DJ
          • Performances

          Comments about dbx 223xs Stereo 2-Way/Mono 3-Way Crossover:

          This is a great crossover for the money. The owner's manual lacks in description and instruction. But, If you do live sound and DJ work, you should know how to set it up. I admit, the low frequency sum button is somewhat confusing. I think this would be a wise choice for the beginning or experienced sound engineer. Yes. For the money. Buy this one.

          Comment on this reviewHelp Icon


          5.0

          GREAT PRODUCT!!!

          By

          from Gulf Shores, AL

          About Me Experienced

          Pros

          • Clear Sound
          • Easy To Use

          Cons

            Best Uses

            • Mobile DJ

            Comments about dbx 223xs Stereo 2-Way/Mono 3-Way Crossover:

            Bought this when my Super-X wasnt so super anymore... Wish I had bought the dbx223 from the beginning!! WOW!! Didnt realize what I was missing. This is a great product that wont break the bank. Would recommmend to ANYONE!!

            Comment on this reviewHelp Icon


            4.0

            nice unit good price

            By

            from statesville nc

            About Me Professional Musician

            Ask me a question

            Verified Buyer

            Pros

            • Easy To Use
            • Powerful
            • Professional Functions
            • Versatile

            Cons

              Best Uses

              • Performances
              • Professional Recording

              Comments about dbx 223xs Stereo 2-Way/Mono 3-Way Crossover:

              nice unit .. great price ... fast shipping ... would recommend this unit to anyone
