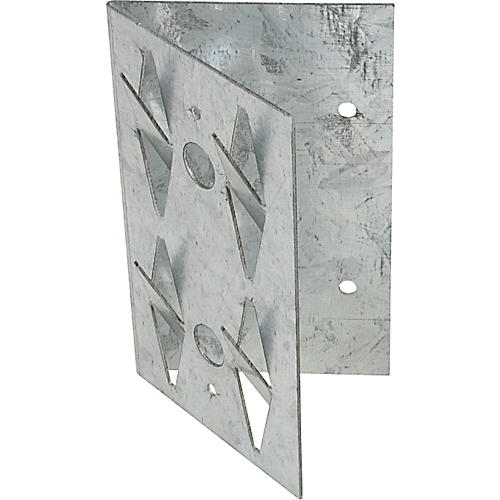

Primacoustic Corner Impaler for Mounting Broadway Acoustic Panels - 8 count

SKU #580305000000000
Add To Wish List
60.0 $60.00
More ways to pay:
Lease-to-own with Progressive Leasing. Learn more
Loyalty Points Icon
Loyalty Points Icon
Earn 480 reward points
($4.80 in credit)
Inventory Msg Check Mark Inventory Msg Exclamation In Checkout Promo Inventory Msg Download Icon
Order Now!
This item is backordered but is available to reserve now. You will not be charged until the item ships.
  • Free Shipping
  • Lowest Price
  • Ships Internationally
Chevron Right Icon
Overview

The most effective mounting system for Broadway acoustic panels.

Primacoustic Corner Impalers are designed to provide the installer with a simple, quick and effective method of mounting Broadway fiberglass acoustic panels into corners to create a bass trap. The steel corner impalers feature a 45 angle design that positions a panel across a typical 90 corner without causing serious defacement of the wall surface. The panel is held in place using a series of sharp protruding darts that penetrate the panel to secure it during installation. To ensure panels do not get dislodged after installation in the recording studio, a dab of construction adhesive may be applied to the impaler darts during the mounting process adding a higher level of security and reducing opportunity for tampering. Impalers are installed using typical sheet rock anchors and screws.

For greater bass absorption, Primacoustic corners are the ideal target in which to place bass traps. A typical 24" x 48" Broadway panel will create a 17" deep corner cavity and provide excellent bass absorption down to the trouble some 100Hz region. Stacked panels in corners produce a seamless look that is esthetically appealing

Features

  • Material: 20 gauge galvanized steel
  • Dimensions: 3" (76mm) x 5" (127mm); 45 angle for 90 corners.
  • Attachment Points: 4 x (Use appropriate fastener for wall surface)
  • Max Load Limit: 12 lbs. (5.4 kg.) Dependant on wall fastener
  • Number per box: 8 pieces
  • Order Number: F101-1001-00

Order this essential system component today.
