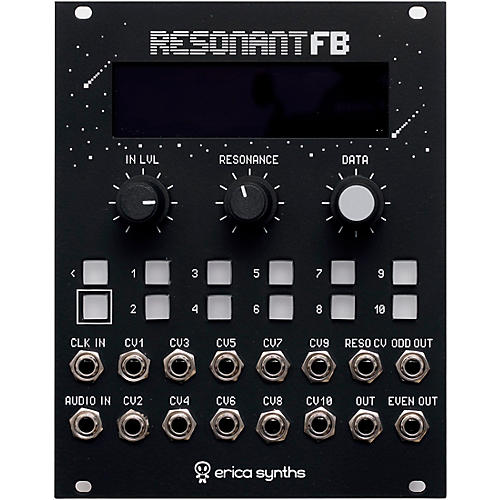

Erica Synths Graphic Resonant FB 10-Band Filterbank
true true
Musician's Friend Rewards
This oversized item has special shipping requirements
Erica Synths Graphic Resonant FB 10-Band Filterbank
Oops!
- Free Shipping
- New
- Flexible Financing
- Lowest Price
Gold Coverage Protection
Protect your gear
Gold Coverage Protection
Gold Coverage goes above and beyond the manufacturer's warranty to protect your gear from unexpected breakdowns, accidental damage from handling and failures. This plan covers your product for one, two, three or up to five years from your date of purchase, costs just pennies per day and gives you a complete "no-worry" solution for protecting your investment.
Gold Coverage Includes:
- Unexpected and unintentional spills, drops and cracks
- Normal wear and tear
- Power surges
- Dust, internal heat and humidity
Other plan features include:
- For products over $200, No Lemon Policy applies. If it fails for the same defect 3 times, it is replaced on the 4th breakdown. (Does not apply to failures due to drops, spills, and cracks)
- For products under $200 experiencing the above failures, a Musician's Friend gift card will be issued for the full price of the product + tax.
- Shipping fees covered if required for repair or replacement
- Plans are transferable in the event merchandise is sold
- Plans are renewable on new gear
*Limitations and exclusions apply. See terms and conditions (Opens in new window) for program details
Term for New Gear begins on date of purchase but does not replace the store return policy or manufacturer coverage.
A Eurorack filterbank for dynamic 10-band tone sculpting.
Blending analog filtering with digital recall and control, the Erica Synths Graphic Resonant FB offers a powerful approach to spectral shaping in Eurorack. Equipped with ten discrete bandpass filters, the FB gives users hands-on control over each band’s boost and cut settings, either manually or via voltage control. With built-in memory for 128 presets and clock synchronization, it’s designed for modular artists who need detailed sound shaping and advanced modulation. Sound designers can use the FB to sculpt harmonic content with precision, or even play the unit as an instrument using unique resonance feedback configurations. The FB’s skiff-friendly design, 20HP format, manual controls and voltage-controlled resonance make it a standout tool for studio or live modular setups.
Features
- Ten analog bands sculpt detailed textures for modular sound shaping
- Manual and CV boost or cut enables real-time spectral control
- Save and recall up to 128 filter and resonance presets
- Configurable resonance feedback loops create custom filter responses
- Clock input synchronizes filter changes to external gear
- Multimode operation transforms the module into a dynamic filter or analyzer
- Dynamic spectral compressor mode tames or enhances frequency bands
- Discrete and morphing patterns enable fluid or abrupt sound transitions
- Main even and odd outputs offer expanded routing possibilities
- 1.3” module depth fits comfortably in skiff-friendly cases
Explore limitless spectral shaping with the Erica Synths Graphic Resonant FB 10-band filterbank and transform your rack into a responsive, performance-ready sound-design instrument.
Graphic Resonant FB 10-Band Filterbank Specifications:
General- Product type: Eurorack graphic resonant filterbank module
- Model: Graphic Resonant FB
- Filter type: Analog ten-band filterbank
- Band count: 10 bandpass filters
- Band frequencies: 29Hz, 61Hz, 115Hz, 218Hz, 411Hz, 777Hz, 1.5kHz, 2.8kHz, 5.2kHz and 11kHz ±10%
- Band control: Manual and voltage-controlled boost and cut per band
- Resonance control: Manual and voltage-controlled resonance
- Feedback: Configurable resonance feedback loops
- Filter modes: Multimode filter mode
- Analyzer mode: Spectral analyzer mode
- Dynamic EQ mode: Dynamic spectral compressor mode
- Preset memory: 128 presets
- Pattern control: Discrete and morphing pattern change
- CV inputs: Configurable CV inputs
- Clock input: Clock input for synchronization
- Audio signal amplitude: 10V peak to peak
- Main outputs: Main, even and odd outputs
- Expander support: Compatible with Graphic Resonant Filterbank Expander for band level control
- Power consumption with expander: +12V 138mA to 145mA and -12V 50mA
- Power supply: Eurorack case and power supply required
- Width: 20HP
- Depth: 1.3"
