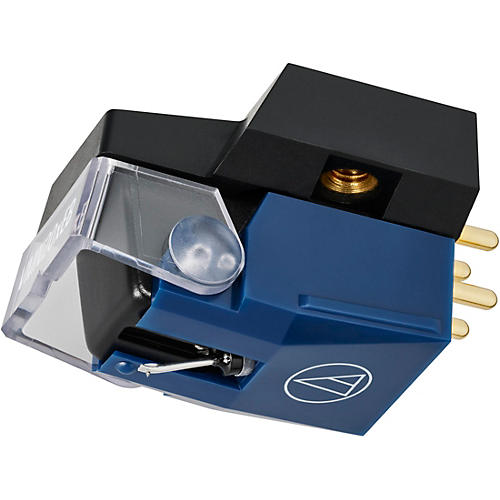

Audio-Technica AT-VM520xEB VMx Elliptical Bonded Phono Cartridge Black/Navy
true trueMusician's Friend Rewards
This oversized item has special shipping requirements
Audio-Technica AT-VM520xEB VMx Elliptical Bonded Phono Cartridge Black/Navy
Oops!
- Free Shipping
- Lowest Price
A phono cartridge with precise tracking for vivid, detailed sound.
The Audio-Technica AT-VM520xEB VMx elliptical bonded phono cartridge gives your records a new voice—warm, wide and wonderfully clear. Built with Audio-Technica's dual moving magnet design, it mirrors the geometry of the cutter head for precise tracking and lifelike stereo separation. The 0.3 x 0.7 mil elliptical bonded stylus captures rich detail across the spectrum, revealing the subtle nuances and expressive character pressed into every groove.
AT-VM520xEB Cartridge With PCUHD Coils for Low Crosstalk
Designed for deep, dimensional playback, the AT-VM520xEB features Pure Copper Ultra High Drawability (PCUHD) coils in a paratoroidal configuration to optimize signal efficiency. Fewer coil turns sharpen transient response, while a center shield plate reduces crosstalk between channels. The result is clean, responsive sound with striking stereo accuracy—ideal for music lovers who want to hear every movement and moment with clarity.
Audio-Technica Cartridge With Threaded Mount and Stylus
This cartridge makes installation refreshingly simple. Threaded inserts let you secure the body to your headshell with just two screws—no nuts needed. A redesigned stylus guard with a V-cut helps you align the stylus with precision, and the low-resonance polymer housing ensures clean, stable playback every time. With its elliptical stylus and thoughtful design, the AT-VM520xEB gives you both high-fidelity sound and everyday ease of use.
Features
- AT-VMx dual moving magnet design ensures accurate tracking and stereo clarity
- 0.3 x 0.7 mil elliptical bonded stylus delivers precise audio reproduction
- Paratoroidal coils improve efficiency for detailed transient response and balance
- PCUHD pure copper coils provide rich, nuanced three-dimensional sound
- Center shield plate reduces crosstalk for a clear stereo image
- Threaded inserts simplify installation with just two screws needed
- V-cut stylus protector allows precise stylus positioning on records
- Durable low-resonance polymer housing minimizes distortion during playback
Hear every groove come alive with the Audio-Technica AT-VM520xEB VMx elliptical bonded phono cartridge. Add it to your setup for stunning detail, clean stereo imaging and effortless clarity.
AT-VM520xEB VMx Elliptical Bonded Phono Cartridge Specifications:
Cartridge- Type: Dual Moving Magnet
- Stylus: 0.3 x 0.7 mil Elliptical Bonded
- Cantilever: Aluminum
- Body Material: Low-Resonance Polymer
- Frequency Response: 20Hz–20kHz
- Channel Separation: 25dB (1kHz)
- Tracking Force: 1.8–2.2g (2.0g Standard)
- Output Voltage: 4.0mV (1kHz, 5cm/sec)
- Mounting: Threaded Inserts (Requires Two Screws)
- Stylus Protector: V-Cut
- Turntable Fit: 1/2" Mount Turntables
- Compatible Styli: AT-VMx Series Styli
- Coil Material: PCUHD (Pure Copper Ultra High Drawability)
- Coil Configuration: Paratoroidal, Two Coils Per Channel
