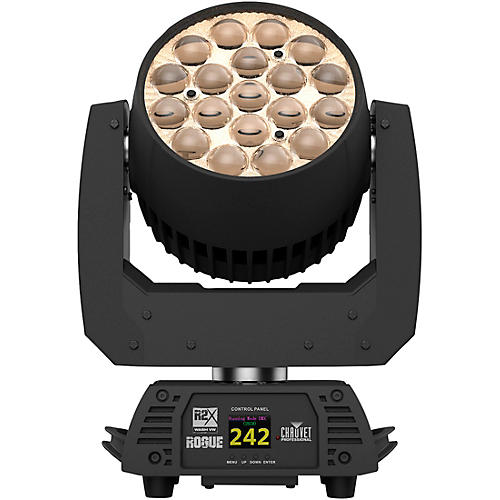

Chauvet Professional Rogue R2X Wash Variable White High-Output LED Wash

Q&A SKU #M02318000000000
$2,418.00 2260.0 $2,260.00 Price Drop: $158.00 (7%)
Or
47.09 $47.09/mo. with 48 months financing*
Limited time Learn more
More ways to pay:
Lease-to-own with Progressive Leasing. Learn more
Loyalty Points Icon
Loyalty Points Icon
Earn 18,080 reward points
($180.80 in credit)
Earn 18,080 reward pts.
($180.80 in credit)
Inventory Msg Check Mark Inventory Msg Exclamation In Checkout Promo Inventory Msg Download Icon
Order Now!
This item is backordered but is available to reserve now. You will not be charged until the item ships.
  • Free Shipping
  • Price Drop
  • Flexible Financing
  • Lowest Price
Product Warranties Icon Product Warranties Icon

Gold Coverage Protection

Protect your gear

Chevron Right Icon
Overview

Fully featured variable white LED yoke wash fixture with LED zone control and zoom.

This is the CHAUVET Professional Rogue R2X Wash variable white version of the industry-leading Rogue R2X Wash effects light. Ideal for broadcast and exhibition markets, this versatile unit is capable of rendering nearly any temperature of white ranging from 2,600 to 6,075K. The Rogue R2X Wash utilizes 19 (25W) warm white and cool white LEDs, offering five zones of LED control for pixel-mapping effects, as well as built-in automated programs. The versatile zoom range of 12° to 49° and unique lens design allows for full coverage in even the widest of areas. Control your way via DMX or RDM.

The Rogue R2X Wash includes a Neutrik powerCON power cord and Omega bracket with mounting hardware

Features

  • 16-bit dimming of master dimmer, individual colors for smooth control of fades
  • 19 variable white LEDs, 25W each
  • 3- and 5-pin DMX input/output connections
  • 5 zones of LED control for pixel mapping control
  • Unique lens design for excellent blending
  • Fast, smooth pan and tilt movement
  • Built-in color temp presets from 2,800K to 6,000K
  • RDM enabled for remote addressing and trouble shooting
  • Six distinct dimming modes for advanced control
  • Omega mounting bracket, fits all Rogue and Maverick fixtures
  • Easy-to-read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility

Order today.

Specs

Rogue R2X Wash Variable White High-Output LED Wash Specifications:

Optical
  • Light Source: 19 LEDs (CW and WW) 25W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2,600 to 6,075K
  • Beam Angle: 8° to 34.4°
  • Field Angle: 11.3° to 50.4°
  • Zoom Angle: 11.3° to 50.4°
  • Lumens – Source: 10,700 lm
  • Lumens – Output: 10,918 lm
  • Illuminance (11.3°): 14,499 lux @ 5 m
  • Illuminance (50.4°): 1,266 lux @ 5 m
  • Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 15,000Hz
Dynamic Effects
  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20Hz
  • Standalone Color Temperature Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No
Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5' (1.5 m)
Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 15, 18, 23, 34 or 36
  • Modes/Personalities: 7 personalities (15CH, 18CH, 23CH, 23CH MS, 34CH, 36CH or 36CH MS)
Electrical
  • Input Voltage: 100 to 240 VAC, 50/60Hz (auto-ranging)
  • Power Linking: 4 units @ 120V; 8 units @ 208V; 9 units @ 230V
  • Power and Current: 336W, 2.825A @ 120 V, 60Hz
  • Power and Current: 335W, 1.620A @ 208 V, 60Hz
  • Power and Current: 339W, 1.467A @ 230 V, 50Hz
Certifications/Qualifications
  • CE, MET, FCC
  • IP Rating: IP20, dry location
