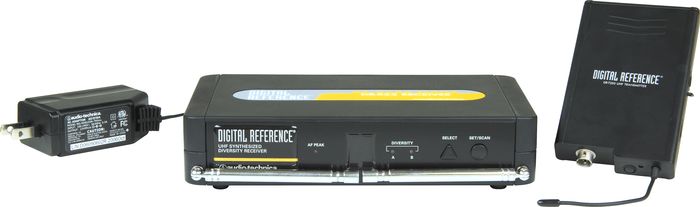

Digital Reference DR-2505 Guitar Wireless System

  • Write a Review
Product 270039
Product Price $0.00
  • Free Shipping With Backstage Pass (48 Contiguous U.S. States)

The DR-2505 wireless system is for professional musicians who need excellent interference rejection, or in stage setups where multiple wireless syste...Click To Read More About This Product

We're sorry-this item is unavailable.

Find a similar product below or contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Customers Also Viewed:

The DR-2505 wireless system is for professional musicians who need excellent interference rejection, or in stage setups where multiple wireless systems need to be used simultaneously, you can step up to the DR-2505. It offers an 8-channel UHF-based receiver so that each member of a band can operate on his or her own selectable channel without fear of interference.

Consumer Alert:

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at:

  • Synthesized 8-channel diversity dual antenna system with scan mode handheld microphone/transmitter
  • Frequency agile with advanced dipole antenna system
  • Power, RF and AF peak indicators
Overall system specifications
  • Operating Frequency: UHF band 470.000 MHz to 491.750 MHz
  • Number of Channels: 8
  • Frequency Stability: ±0.005%, Phase Lock Loop frequency control
  • Modulation Mode: FM
  • Maximum Deviation: ±15 kHz
  • Operating Range; 150' minimum
  • Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C)
  • Frequency Response: 50 Hz to 16 kHz
Receiver specifications
  • Receiving System: Synthesized 8-channel diversity dual antenna system with scan mode
  • Image Rejection: 50 dB minimum
  • Signal-to-noise Ratio: 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
  • Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
    Sensitivity: 25 dBV for 60 dB S/N (IEC-weighted)
  • Audio Output: 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load)
  • Output Connector: Balanced XLR & unbalanced 1/4" TS ("mono") phone jack
  • Power Supply: 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external slimline DC supply
  • Dimensions: 8.27" (210.0 mm) W x1.72" (43.5 mm) H x 4.73" (120.0 mm) D
  • Net Weight: 18.9 oz (536 g); without AC adapter, 11.9 oz (336 g)
  • Accessories Included: AD1202A 120V docking AC adapter; 120V AC IEC cordset
Body-pack transmitter specifications
  • RF Power Output: 10 mW nominal, 5 mW typical
  • Spurious Emissions: Under federal regulations
  • Dynamic Range: >=90 dB, A-weighted
  • Input Connections: High impedance, low impedance, bias
  • LED Readout: Mute Status / Battery Status
  • Battery: AA alkaline, not included
  • Current Consumption: 60 mA typical
  • Battery Life: 8 hours (depending on battery type and use pattern)
  • Dimensions: 2.56" (65.0 mm) W x 4.41" (112.0 mm) H x 0.87" (22.0 mm) D
  • Net Weight: 3.2 oz (89 g)
