Overview

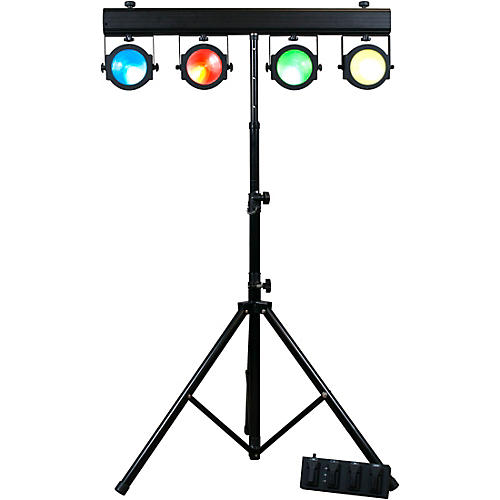

A complete portable wash lighting system for captivating performances.

The Eliminator Lighting Dotz TPar Sys Plus LED wash system is an all-in-one LED wash lighting solution designed to elevate any event with vibrant colors and dazzling visuals. Whether you need a portable system for bands, mobile DJs and solo performers or a compact lighting rig for intimate venues, the Dotz TPar Sys Plus offers versatile operation and effortless control. With built-in programs, sound activation, DMX control and more, unleash your creativity and immerse audiences in an unforgettable show.

Smooth Color Mixing and Endless Creative Control

At the heart of the Dotz TPar Sys Plus are advanced Chip on Board (COB) LEDs, engineered to produce dramatically smooth color blending without color shadows or banding that can ruin the illusion. The tri-color LEDs mix seamless palettes to paint stages, walls or ceilings with your choice of vibrant colors. Transition from one saturated color to the next with precision. With a wide 90-degree beam angle, each compact LED PAR light covers more area with beautiful, consistent illumination.

Versatile Modes for Any Event

Ready for any gig, the Dotz TPar Sys Plus offers exceptional flexibility. Run in stand-alone mode with built-in programs like Auto Run and Color Macro to add energy to any environment. Sound Activation mode analyzes audio signals and makes the lights pulse and react to the beat, perfect for clubs and parties. Or tap into the system's DMX capabilities with five channel modes for more advanced control.

Lightweight, Portable Design

With its slim par fixtures, compact controller, carrying bags and lightweight aluminum stand, the Dotz TPar Sys Plus is made for mobility. Each par fixture weighs only four pounds, while the combined system is under 40 pounds. The soft case with padded handles and shoulder strap makes it easy to transport the entire rig. Set up is quick and simple with the height-adjustable stand and sturdy cross-bar. Power linking between fixtures and a long power cord allow flexibility.

Intuitive Controls

Controlling your dynamic light show is simple with the included RF remote and foot controller. Select colors, adjust dimming, trigger built-in programs or sound activation and more with easy navigation. The foot switch provides convenient hands-free control of blackouts or mode changes. For advanced users, the Dotz TPar Sys Plus offers five DMX channel modes for controlling individual fixtures. Customize scenes exactly as you envision. With the Eliminator Lighting Dotz TPar Sys Plus, unleashing your creativity and delivering unforgettable performances is effortless.

Bring dynamic lighting to your next event with the Eliminator Lighting Dotz TPar Sys Plus.

Specs

Dotz Tpar Sys Plus LED Wash System Specifications:

Source
  • Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs
  • LUX @ 3M: 1345
  • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • Beam angle: 90-degree
Control
  • Digital DMX Display with 4-button menu for easy navigation
  • 4 Operational modes: Sound Active, Auto Run, Built-In Programs, & DMX-512
  • Stand Alone or Primary/Secondary Configuration
  • Pixel Flip option changes pixel orientation
  • 14 Built-in Programs
  • 5 DMX Channel modes: 3, 5, 9, 12 and 18 channels
  • Strobe & Pulse LED Effect
  • Electronic Dimming: 0-100%
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • Foot Controller Features: Mode, Black Out and Program Change
Connections
  • 3-Pin DMX In/Out
  • IEC In and IEC out to daisy chain power
  • 2x power plugs on rear to plug in other lighting fixtures (120V = Edison, 230V = Shuko)
  • 5-pin DMX In to connect the foot controller
Electrical
  • Multi-voltage operation: AC 100V-240V 50/60Hz (IEC Input)
  • Power Draw: 144W Max (entire system)
Size and weight
  • Dimensions (LxWxH): 39.5” x 12.75”x 3.25”/ 1000 x 320 x 82mm
  • Weight: 35 lbs./ 16 kg. (Fixture Bar, Stand & Controller)
  • Maximum stand height: 9 feet
