Focusrite Desktop Remote Controller for Red Interfaces with PoE

SKU #L80070000000000
48-Month Financing*
Add To Wish List
999.99 $999.99
Or
21 $21/mo. with 48 months financing*
Limited time
More ways to pay:
Lease-to-own with Progressive Leasing. Learn more
Loyalty Points Icon
Loyalty Points Icon
Earn 8,000 reward points
($80.00 in credit)
Inventory Msg Check Mark Inventory Msg Exclamation In Checkout Promo Inventory Msg Download Icon
In Stock & Ready to Ship
Most orders placed before 3 p.m. ET ship same day (except weekends and holidays).
  • Free Shipping
  • Flexible Financing
  • Lowest Price
  • Ships Internationally
Product Warranties Icon Product Warranties Icon

Gold Coverage Protection

Protect your gear

Chevron Right Icon
Overview

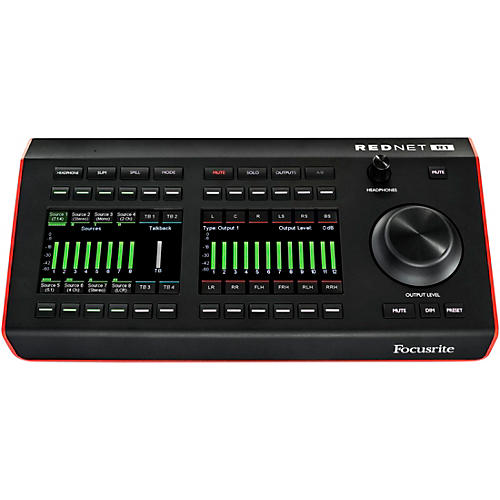

Remote controller for Focusrite Red interfaces.

RedNet R1 enables users to interact with their audio system like never before. It provides the flexibility to control a range of different monitor output setups, ranging from mono through to 7.1.4 surround, including Dolby Atmos and other immersive audio workflows. Alternatively, completely custom setups of up to 12 outputs can be configured for bespoke speaker configurations. RedNet R1 can be used to control groups of outputs from a Red interface’s multitude of sources and destinations, including from Pro Tools | HD and other DAWs, analog inputs and outputs, ADAT and S/PDIF connections, and from entire Dante audio ecosystems, simultaneously and interchangeably.

RedNet R1 supports a maximum of eight input sources from 32 available audio channels, across analogue, digital, DAW and Dante connections, and mixes and routes signals to up to 12 monitor output channels.Top-panel control includes level, reference level preset selection, cut, dim, mute and a variety of solo modes. There’s an A/B switch for switchingbetween numerous monitoring presets, and up to four fold-down presets allow fast switching for checking downmixes. Custom cue mixes can be sent to talent from any of the 32 available inputs.

RedNet R1 also features a Dante-enabled talkback section, internal mic-pre and a high-powered headphones output, so you can interact with your Dante system like never before. Up to four talkback destination groups are available when used with a Red interface. (When used with other Dante devices, a single talkback group is available.) RedNet R1 has an internal microphone, or users can connect their own microphone via the rear-panel XLR. The high-fidelity headphone output is powerful enough to deliver high-SPL audio to high-impedance headphones.

RedNet R1 features two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus. The unit is configured using RedNet Control2, the software manager designed primarily for ease of use in quickly setting up both simple and complex monitoring and routing configurations. Other features of the RedNet R1 include a quarter-inch jack socket, which accepts a footswitch for talkback management, LFE muting and more. It can be powered via Ethernet to reduce cabling complexity (using the PoE standard), or by a DC power supply.

Included Software

RedNet Control Software mixer with a hardware-focussed workflow, which is designed to allow quick setup of both simple and complex monitoring and routing configurations.

Brainworx bx_console Focusrite plug-in
This awesome plug-in recreates the analog signal paths of Focusrite’s revered ISA 110 and ISA 130 modules, which were a part of the Focusrite Studio Console. Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the new bx_console Focusrite VST/AU/AAX plug-in for Mac and PC faithfully captures the sound, feel and styling of the original iconic hardware.

If you purchased any Red, RedNet or ISA solution from January 2020 on, you will have the plug-in available in your Focusrite account as long as you’ve registered your product.

3-Year Warranty
Wherever you happen to be in the world, you can rely on a three-year warranty if any Focusrite hardware needs repairing or replacing due to a manufacturing fault. Focusrite will send you replacement gear in the US, and they’ll cover the shipping costs both ways.

Features

Desktop remote controller for Red audio interfaces
  • The first Dante Pro Tools |HD and Thunderbolt interface system with a monitor controller
Switch and sum
  • Supports a maximum of eight channels, each of up to 12 sources per channel, from 32 available audio sources
Flexible monitor control
  • Controls include level, reference level, preset selection, cut, dim, mute, A/B switch, and a variety of solo modes
Monitor fold-downs
  • Up to four fold-down presets allow fast switching for checking downmixes
Talkback & headphones functionality
  • Four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices. High-fidelity output can take its source from a multitude of sources
Built-in Microphone
  • RedNet R1 has an internal talkback microphone, or users can connect their own, via the rear-panel XLR
Precision metering and display
  • Two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus
Software setup with hardware-focussed workflow
  • RedNet Control is designed for quickly setting up simple or complex configurations
Footswitch input
  • Quarter-inch jack socket accepts a footswitch, for talkback management, LFEmuting and more
Power-over-Ethernet (PoE) support
  • Powered via Ethernet (using the PoE standard), or using a DC power supply
    -
    Ethernet (PoE) support

Interact with your audio system like never before. Order today.

Specs

Desktop Remote Controller for Red Interfaces with PoE Specifications:

System Requirements:
  • Mac Osx:
  • 10.13 macOS High Sierra
  • 10.14 macOS Mojave
  • 10.15 macOS Catalina
  • 10.16 macOS Big Sur
  • Windows:
  • Windows 10
Internal Talkback
  • All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω:
  • Gain Range: 0dB to 55dB
  • Type: Electronically Balanced, Zin = 3kΩ
  • Max. Input Level: +10dBu ± 0.5db
External Talkback
  • All measurements taken at maximum gain unless otherwise stated, Rs = 150 Ohm:
  • Gain Range: 0dB to 55dB
  • Type; Electronically Balanced, Zin = 3kOhm
  • Max. Input Level: +10dBu ± 0.5dB
  • Frequency Response: 20Hz -20kHz ± 2dB
  • THD + N: < -98dB (0.0012%) @ -1dBFS
  • EIN: < -128dBu 'A'-Weighted (typical)
  • Signal-to-Noise Ratio: -111dB 'A'-Weighted (typical), min gain
  • Common-Mode Rejection Ratio: 50/60Hz CMRR: <-77db
Headphone Output
All
measurements taken at +19dBm reference level, maximum gain, RL = 600Ω
0 dBFS Reference Levels: +11dBm
Frequency Response: 20Hz to 20kHz ±0.5dB
THD + N:
-
100dB (0.001%) @
-
1dBFS, Rs = 150R
Dynamic Range: 108dB 'A'
-
weighted (typical), 20Hz
-
20kHz
Noise in Presence of Signal (NiPoS): >
-
97 dBu 'A
-
Weighted'
Output Impedance: 5Ω
Headphone Impedance: 32Ω
-
600Ω
Headphone Output
  • All measurements taken at +19dBm reference level, maximum gain, RL = 600Ohm:
  • 0 dBFS Reference Levels: +11dBm
  • Frequency Response: 20Hz to 20kHz ±0.5dB
  • THD + N: -100dB (0.001%) @ -1dBFS,  Rs = 150R
  • Dynamic Range: 108dB 'A'-weighted (typical), 20Hz -20kHz
  • Noise in Presence of Signal (NiPoS): > -97 dBu 'A-Weighted'
  • Output Impedance: 5 Ohm
  • Headphone Impedance: 32 Ohm -600 Ohm
Crosstalk
  • Microphone/Line Crosstalk:
  • Mic Input to Headphone Output: < -122dB; 20Hz–20kHz (all other channels at 0dBFS)
  • Headphone Output to Mic Input: < -84dB; 20Hz–20kHz (all other channels at 0dBFS)
Headphone Crosstalk
  • Left to Right: < -85dB; 20Hz–20kHz (all other channels at 0dBFS)
  • Right to Left: < -85dB; 20Hz–20kHz (all other channels at 0dBFS)
Digital Performance
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
  • Clock Sources: Internal or from Dante Network Master
Rear Panel Connectivity, Pots & Switches
  • Inputs:
  • External Talkback Mic Input: 1 x XLR (F)
  • Foot Switch: 1 x 1/4" stereo jack
Outputs
  • Headphone Outputs: 1 x 1/4" stereo jack
Pots & Switches
  • Power Switch: 1 x Switch•Talkback Gain Pot: 1 x Pot
  • Talkback Switch: 1 x Tri-State Switch (External Talkback + 48V, External Talkback and Internal Talkback)
PSU & Network Connections
  • PSU (PoE and DC): 1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector
Network: 1 x Standard RJ45 connectorTop Panel Indicators
  • LCD Screens: 2 x Screens (Control, Status, Metering & Menus)
  • Control Functions: 2 x Continuous Pot (Level & Dim)
  • 1 x Pot (Headphone Output).
  • 24 x Multi-Function Switches (Sources, Talkback, Monitor Outputs & Menu Items)
  • 12 x Single-Function Switches (Headphones, Sum, Spill, Mode, Mute, Solo, Outputs, A/B, Cut x 2, Dim & Output Lock)
Power
  • Power over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
  • DC Power Supply: 1 x 12V 1.2A DC Power Supply
  • Power Consumption: PoE: 10.3W -DC: 9W (When using supplied DC PSU)
Heat Performance
  • Operating Temperature: Operates at up to an ambient temperature of 40-degrees Celsius
