Overview

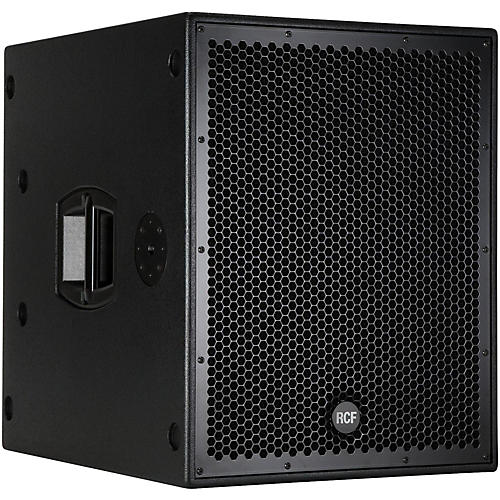

Powerful, top-quality active subwoofer with 18" driver.

The SUB 8004-AS is an active hypervented 18” woofer with 4” inside/outside voice coils and a beastly 1250-watt Class-D power amp. It delivers a loud, warm, finely tuned low-frequency output and will take an ordinary PA system form good to great with its incorporation.

It is a direct radiating large-format subwoofer system that has an efficient footprint for transportation of installation. It has a great track record of proving complementary to any full-range loudspeaker system. The SUB 8004-AS extracts the greatest efficiency from every part of the system, resulting in the effortless reproduction of low-frequency transient response.

The cabinet is equipped with two RCF Precision back-vented, long-excursion 18” cone drivers that provide fast and controlled reproduction of the bass-frequency range. The drivers have been engineered for extreme efficiency, using high-gauss ferrite magnets for the most powerful magnetic field strength. High magnetic field strength increases the driver’s sensitivity, which yields greater output, while keeping heat dissipation requirements within operational tolerances.

Powered by a 1,250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high-pass switch, phase switch, cardioid, time delay. An easy-to-reach delay knob on the back allows to set the overall delay of the speaker in meters according to its application. Three status LEDs–Power/Signal/Status are provided for monitoring the system

The amplifier features a solid mechanical aluminum structure that stabilizes the amplifier during transportation and assists in the heat dissipation and, with DSP control electronics and power supply, is integrated into a single, field-replaceable module mounted in the rear of the cabinet. The cabinet is constructed of multi-ply hardwood and coated with a textured black finish. Integral metal grilles lined with acoustical black mesh protect the cone drivers.

Features

Speaker configuration
  • Active/passive: Active
  • Type: Subwoofer
  • LF driver: 18"
  • MF driver: N/A
  • HF driver: N/A
Power
  • Amplifier class: D
  • Wattage: 2,500W peak
  • Mixer/preamp: N/A
Audio
  • Frequency response: 30Hz–120Hz
  • Coverage pattern: N/A
  • Max SPL: 136dB
Inputs
  • XLR/TRS: 2
  • TRS: N/A
  • TS: N/A
  • RCA: N/A
Output/thru
  • XLR: 2
  • TRS: N/A
  • TS: N/A
  • SpeakON: N/A
Enclosure
  • Cabinet material: Multi-ply hardwood
  • Width: 22"
  • Height: 27.6"
  • Depth: 27.6"
  • Weight: 112 lb.

Big low end with a small footprint. Order soon.
