Yamaha DXS12mkII 12" Powered Subwoofer

  • Write a Review
SKU
#L10328 000000000
Product Price $799.99
  • Free Shipping With Backstage Pass (48 Contiguous U.S. States)

Delivering powerful low-end reinforcement in a compact enclosure designed for smaller performance spaces, the Yamaha DXS12mkII band-pass style active...Click To Read More About This Product

Available 09-08-2018

Gold Coverage: (What’s This?)
    Warranty Options
  Reserve Now
Notify Me When This is in Stock
Add to Wish List
Set Alerts
Earn Points

Earn up to 6,400 reward points.

OVERVIEW

Onboard DSP with cardioid setting.

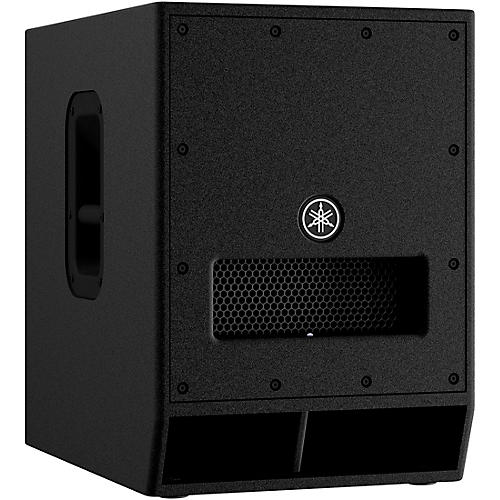

Delivering powerful low-end reinforcement in a compact enclosure designed for smaller performance spaces, the Yamaha DXS12mkII band-pass style active subwoofer gives your existing system the deep, rich bass your music deserves. A potent Class-D amplifier drives the 2.5" voice coil magnet and 12" woofer for tight, accurate bass with exceptional clarity and up to 134dB SPL. The rugged wooden enclosure features LINE-X coating for protection against scratches and wear, ensuring it will withstand years of use while maintaining its professional appearance.

Crossover switching allows you to seamlessly match the DXS12mkII with any of Yamaha’s full-range powered speakers by selecting the cutoff frequency best suited to the models in their speaker array. Yamaha’s state-of-the-art DSP processing and protection functions mean the DXS12mkII performs at its peak under the most demanding conditions.

A unique feature of the DXS12mkII is its cardioid mode setting for PA setups with two or more matching subwoofers. Selecting cardioid mode function effectively decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience. The result is a clearer onstage monitoring environment and a more pronounced bass experience out front.

FEATURES
  • 12" woofer in a band-pass-style enclosure
  • Rugged construction with wood cabinet
  • Compact, lightweight design for smaller performance spaces
  • Class-D amplifier with 800W continuous output
  • Onboard DSP with cardioid setting

For more bass that takes up less space, order today.

SPECIFICATIONS
Speaker Configuration
  • Active/passive: Active
  • Type: Subwoofer
  • LF driver: 12"
  • MF driver: Not applicable
  • HF driver: Not applicable
Power
  • Amplifier class: D
  • Wattage: 800W continuous
  • Mixer/preamp: No
Audio
  • Frequency response: 42Hz–150Hz
  • Coverage pattern: Omnidirectional
  • Max SPL: 134dB
Inputs
  • XLR: 2
  • TRS: Not applicable
  • TS: Not applicable
  • RCA: Not applicable
  • SPEAKON: Not applicable
Outputs
  • XLR: 2
  • TRS: Not applicable
  • TS: Not applicable
  • RCA: Not applicable
  • SPEAKON: Not applicable
Enclosure
  • Cabinet material: Wood
  • Width: 15.75"
  • Height: 22.32"
  • Depth: 22.44"
  • Weight: 30 lb.
