3500/4000 Watt Portable Generator

We're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.

Overview

Medium-duty remote power.

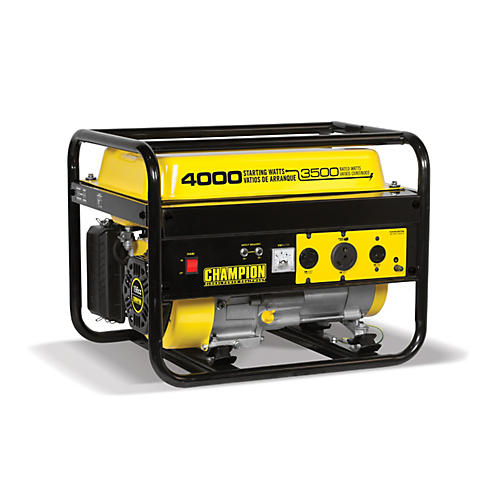

The Champion Power Equipment 46596 gasoline-powered, electric start portable generator is powered by a 196cc Champion single cylinder, 4-stroke OHV engine that produces 3500 running watts and 4000 starting watts. The OHV engine is equipped with a low oil shut-off sensor and designed for long life and easy maintenance. This unit is ideal for outdoor shows or rehearsals during power outages. Man does not live by rock and roll alone, so it is also useful for RV's, trailers, power tools, jobs around the house, or home back-up power during emergencies.

Features

  • Lightweight
  • Reliable
  • Fuel-efficient
  • Ruggedly built

Order now and rock out on a 10-wheel flatbed trailer in a gravel pit

Specs

3500/4000 Watt Portable Generator Specifications:

Engine specifications
  • Model: 66534
  • Displacement: 196cc
  • Type: 4-Stroke OHV
  • Start type: Recoil
Generator Specifications
  • Model: 46596
  • Running wattage: 3500 watts
  • Starting wattage: 4000 watts
  • AC Load: 120V
  • Phase: Single
  • Frequency: 60Hz
  • Fuel capacity: 3.8 gal
  • Gross weight: 104.7lb
  • Net weight: 97lb
  • Height: 17.8
  • Width: 17.5
  • Length: 23.2
Spark plugs
  • OEM spark plug: NHSP F6RTC
  • Replacement spark plug: NGKBPR6ES or equivalent
  • Make certain the spark plug gap is 0.7 - 0.8 mm or (0.028 - 0 .031 in)
Maintenance Valve Clearance
  • Intake: 0.13 “ 0.17 mm (0.005 “ 0.007 in)
  • Exhaust: 0.18 “ 0.22 mm (0 .007 “ 0 .009 in)
  • Note: Tech bulletin regarding the valve adjustment procedure is on www .championpowerequipment .com
