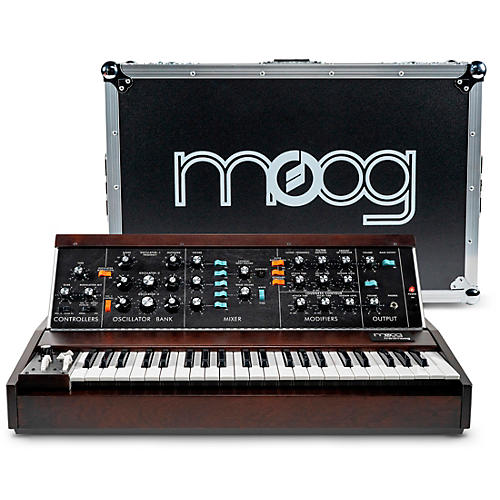

Minimoog Model D Monophonic Analog Synthesizer With ATA Road Case
false falseWe're sorry-this item is unavailable.
Contact our experts for a recommendation of great alternatives. Call us at 800-449-9128.
A reissue of a Moog synthesizer classic—with modern upgrades and ATA road case.
This bundle includes the Minimoog Model D monophonic analog synthesizer 2022 reissue and a custom-designed-and-fit ATA road case for your Minimoog Model D.
Minimoog Model D
More than a half century since its release in 1970, Minimoog Model D synthesizer is back in production at the Moog factory in Asheville, North Carolina. An exceptional sonic tool and one of the most beloved and iconic synthesizers ever designed, it returns to the hands of synthesists of all kinds, and serves as inspiration for the next generation of electronic musicians.
The three-oscillator, monophonic, analog synthesizer is securely housed in a locally sourced Appalachian cherry cabinet and hand-finished aluminum chassis. Sounding as vibrant and deep as ever, its legendary low-pass ladder filter, powerful oscillators, and rich saturating mixer retain the exact component placement and through-hole design of a 1970s-era Minimoog Model D.
While no changes have been made to the original sound engine or audio signal path, the 2022 Minimoog Model D includes a series of popular functional modifications that expand this legendary instrument’s sonic capabilities. These modifications include a dedicated analog LFO with triangle and square wave shapes, a premium Fatar keybed with velocity and after pressure available via top panel CV jacks with onboard trimpots, MIDI integration, and a mixer feedback modification—which allows the Minimoog Model D to overdrive and scream with the turn of a knob. And, for the first time in its history, the Minimoog Model D now features a spring-loaded pitch wheel with center deadband, allowing for improved playability and wild performance flourishes.
ATA Road Case
The Moog Minimoog Model D ATA Road Case is a high-quality, custom-crafted touring enclosure designed specifically for your new Minimoog Model D. Travel with confidence knowing that your analog investment is safe, secure and protected from the rigors and abuse of touring. It features a retractable handle and wheels for easy transit.
Other accessories available (sold separately) specially designed for the Minimoog include a dust cover and SR case for versatile protection an alternate transportation option.
Features
- Road case
Order this Minimoog Model D monophonic analog synthesizer reissue with ATA road case bundle today.
Minimoog Model D Monophonic Analog Synthesizer With ATA Road Case Specifications:
Keyboard- Number of keys: 44
- Keyboard range: F0 to C4
- Keyboard action: Synthesizer (spring)
- Note priority: Low, high, last; user selectable
- Sound sources: 3 oscillators, noise generator and external audio input
- Oscillator frequency range: 0.1 to 20 kHz (in six overlapping ranges)
- Oscillator stability (short term): > 0.25 %
- Oscillator waveforms: Triangle, Triangle-Sawtooth (Oscillator–1, Oscillator–2), Reverse Sawtooth (Oscillator–3), Sawtooth, Rectangle, Wide Pulse and Narrow Pulse
- Noise generator: White and pink
- LFO rate: 0.05Hz to 200Hz
- LFO waveform: Triangle (knob down); Square (knob up)
- Range: +10 millivolts to +2 volts
- Impedance: 1 megaohm
- Type: Voltage-controlled low pass (Ladder Filter)
- Frequency range: 10Hz to 20kHz
- Slope: 24dB per octave
- Keyboard tracking: 1/3, 2/3, 1:1
- Attack time: 1 millisecond to 10 seconds
- Decay time: 4 milliseconds to > 35 seconds
- Sustain level: 0 to 100% of contour peak
- Filter contour width: 0 to 4 octaves
- Voltage: +10 millivolts (min); +10 volt (max.)
- Nominal impedance: 1,000 kohms
- Loudness contour dynamic range: 80dB
- Typical voltage: 0.5 volts/maximum voltage: 4.2 volts (peak to peak)
- Nominal impedance: 3 kohms
- Typical voltage: 15 millivolts
- Nominal impedance: 1 kohms
- Voltage: Maximum 0.3 volts
- Impedance: 8 ohms
- Glide rate: 1 millisecond to 10 seconds
- Pitch bend rate: (+/–) 7 semitones (minimum)
- After pressure CV output (1/4" TS): 0 to +5 volts with user adjustable trimpot
- Pitch CV output (1/4 " TS): –3 volts to +7 volts (C=0 volts)
- Gate output (1/4" TS): 0 to +5 volts
- Velocity Output (1/4" TS): Selectable 0 to +5 volts or 0 to +10 volts with user adjustable trimpot.
- LOUDNESS INPUT (1/4" TS): 0 to +5 volts; +5 volts = Unity Gain (Works with Moog EP-3 Expression Pedal)
- Filter cutoff input (1/4" TS): 1 volt per octave of change (works with Moog EP-3 Expression Pedal)
- Oscillator pitch input (1/4" TRS): 1 volt per octave of change (works with Moog EP-3 Expression Pedal)
- Modulation source input (1/4" TRS): Ring = noise send; tip = modulation receive (this jack makes a normaled connection with no cable present)
- Trigger input (1/4" TS): +5-volt V-Trigger activates both contour generators
- MIDI input (5-pin DIN): Note On & Note #
- MIDI output (5-pin DIN): Note on, note #; velocity; aftertouch, mod wheel, pitch bend
- MIDI thru (5-pin DIN): Mirror of the MIDI In signal
- External power supply: Self-switching; 100–240 volts; 50/60Hz; < 12-watt nominal consumption (locking XLR-4 connector)
- Dimensions, with panel lowered (WxDxH): 28.625" x 17.125" x 5.75"
- Weight: 32 lb.
- Weight: 9.30 lb. (4.22 kg)
- Dimensions (HxWxD): 30.51" x 18.9" x 8.66" (77.5 cm x 48 cm x 22 cm)
