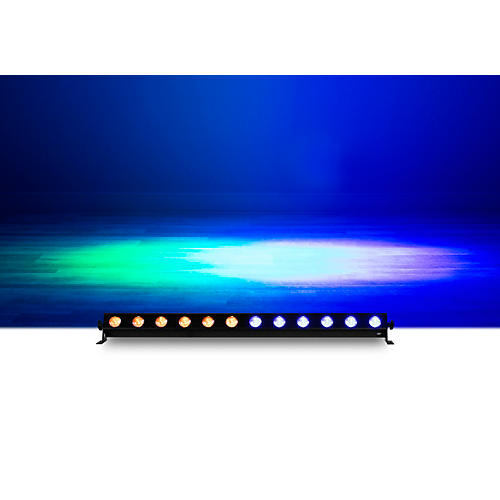

American DJ UBL12H Professional-Grade 1-Meter HEX LED Linear Fixture

Q&A SKU #M10383000000000
399.99 $399.99
Or
6-Month Special Financing
Limited time Learn more
More ways to pay:
Lease-to-own with Progressive Leasing. Learn more
Loyalty Points Icon
Loyalty Points Icon
Earn 3,200 reward points
($32.00 in credit)
Earn 3,200 reward pts.
($32.00 in credit)
Inventory Msg Check Mark Inventory Msg Exclamation In Checkout Promo Inventory Msg Download Icon
New Item!
Pre-order yours today – No charge until it ships
  • Free Shipping
  • Flexible Financing
  • Lowest Price
Product Warranties Icon Product Warranties Icon

Gold Coverage Protection

Protect your gear

Chevron Right Icon
Overview

Professional-grade linear LED fixture with limitless lighting effects.

The ADJ Lighting UBL12H linear fixture takes event and stage lighting to the next level. Powered by 12 bright 20W HEX LEDs, this versatile 1-meter light produces smooth RGBAL+UV color mixing and effects. With the UBL12H, you can create captivating lighting displays on floors, walls and ceilings.

Dial in Precise Color Temperatures

A key benefit of the UBL12H is its linear color temperature control, ranging from a warm 2,300K to a cool 9,900K. Whether you want to simulate candlelight or match the environment's ambient lighting, you can precisely dial in the desired color temperature. The added lime LED chip ensures accurate color rendition and indexing for superior visuals.

Achieve Perfect Wall Washes

With the UBL12H's unique Horizontal Magnetic Alignment system, you can create stunning seamless wall washes. The 17° beam angle offers smooth blending across multiple fixtures. Take your wall lighting to the next level with perfect color uniformity.

Unleash Dynamic Light Shows

This innovative LED linear light empowers you to craft captivating lighting displays. With its RGBAL+UV LEDs, you can fluidly mix any color you desire. Bring your stage or event to life through sound-activated programs, automated programs or take full control with DMX-512. The UBL12H puts dynamic lighting effects at your fingertips.

Intuitive Controls

Operation is straightforward with the UBL12H's OLED display and buttons or the compatible UC-IR24 remote. Unleash exciting lighting shows in Auto Run mode, trigger dynamic effects with its built-in mic or manually control colors. With RDM support, firmware updates are a breeze.

Features

  • 12 x 20W ultrabright HEX LEDs (Red, Green, Blue, Amber, Lime, UV)
  • Linear color temperature control (2,300K to 9,900K)
  • 7 DMX channel modes: 6, 11, 13, 16, 36, 43, 46 channels
  • RDM compatible, cETLus, CE, FCC certified

Bring creative lighting to your event with the ADJ UBL12H today.

Specs

UBL12H Professional-Grade 1-Meter HEX LED Linear Fixture Specifications:

Controls
  • Linear Color Temperature Control (2,300K to 9,900K)
  • OLED Display with 4 buttons
  • 7 DMX Channel Modes: 6, 11, 13, 16, 36, 43, & 46 Channels
  • 6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36-, 43- & 46-channel modes
  • 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
  • LED Refresh Rate: 1.9kHz
  • 64 built-in Color Macros
  • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
  • Built-In Microphone for sound trigger
  • LED pulse and strobe effect
  • Electronic Dimming: 0-100
Connections
  • Linkable: DMX via 5-pin XLR cable
  • Indoor Locking power In/Out to daisy chain power
Electrical
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power Draw: 61W
  • Daisy-chain power link (Up to 17 UBL12H's can be linked @120V and up to 32 UBL12H's can be linked @230V)
Dimensions
  • 2.96" x 42.60" x 4.2" (75x1082x106.7 mm)
  • Weight: 7.50 lb./ 3.4kg.
Certifications / IP Rating
  • cETLus (Control # 4002034)
  • CE
  • FCC
  • IP20 Environment: Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
  • Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)
What's Included:
  • (1) Indoor Locking Power Cord
  • (1) UC-IR24
  • (1) 20° Diffusion Filter
  • Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting
Optional Accessories
  • (1) 1x40° Linear Diffusion Lens (SKU: UBL912)
