CHAUVET Professional CHAUVET Professional

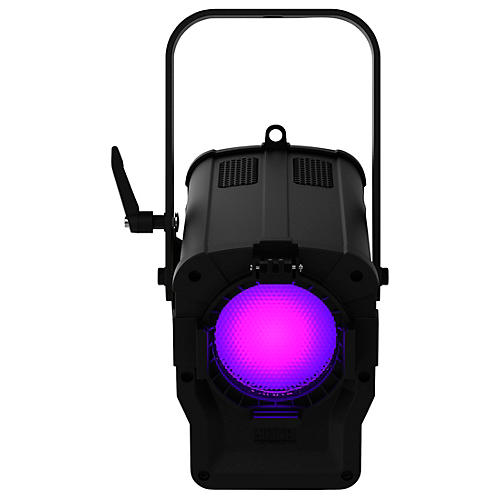

CHAUVET Professional Ovation F-55FC LED Fresnel Light Effect

Q&A SKU #M14781000000000
550.0 $550.00
Or
6-Month Special Financing
Limited time Learn more
More ways to pay:
Lease-to-own with Progressive Leasing. Learn more
Loyalty Points Icon
Loyalty Points Icon
Earn 4,400 reward points
($44.00 in credit)
Earn 4,400 reward pts.
($44.00 in credit)
Inventory Msg Check Mark Inventory Msg Exclamation In Checkout Promo Inventory Msg Download Icon
In Stock & Ready to Ship
This item ships directly from our vendor and may take additional processing time
  • Free Shipping
  • Flexible Financing
  • Lowest Price
Product Warranties Icon Product Warranties Icon

Gold Coverage Protection

Protect your gear

Chevron Right Icon
Overview

A silent, adjustable LED fresnel for creating soft, even light.

The CHAUVET Professional Ovation F-55FC RGBAL LED inkie fresnel fixture provides full-color washes in tight spaces. It gives you access to a complete palette of vibrant hues for illuminating performances and enhancing the mood of any venue. A manual zoom ranging from 32º–87º delivers a soft, even field of light that you can adjust as needed. Compact yet powerful, the F-55FC features silent operation so it won't distract from the show. Whether you need to spotlight a soloist or splash color across the stage, this innovative fixture puts creative control of your lighting design at your fingertips.

Order the Ovation F-55FC today for your next performance.

Specs

Ovation F-55FC LED Fresnel Light Effect Specifications:

  • Optical
  • Light Source: 15 LEDs (3 red, 3 green, 3 blue, 3 amber, 3 lime) 3 to 4W, (700 mA), 3,779K, 50,000 hours life expectancy
  • Color Temperature (at full): 3,779K
  • CRI (3,200K): 91
  • Beam Angle: 18° to 67°
  • Field Angle: 32° to 87°
  • Zoom Angle: 32° to 87°
  • Lumens (30°): 114
  • Lumens (69°): 462
  • Illuminance (32°): 36 lux @ 16.4’ (5 m)
  • Illuminance (73°): 18 lux @ 16.4’ (5 m)
  • Selectable PWM: 600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 15,000Hz
  • Dynamic Effects
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Manual
    • Strobe Rate: 0 to 30Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 4
    • Built-in Automated Programs: Yes
    Construction/Physical
    • Dimensions: 9.64" x 4.64" x 6.53” (245 x 118 x 166 mm)
    • Weight: 5.4 lb. (2.4 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum alloy, aluminum die-cast, high-impact flame-retardant polymer, steel
    • accessory holder/gel frame size: 3.25” (83 mm)
    Connections
    • Power Connection: Edison plug to hardwired
    • Power Input: Hardwired
    • Data Connectors: 5-pin XLR
    • Cable Length (signal): 1.79’ (0.54 m)
    • Cable Length (power): 3.5’ (1.07 m)
    Control
    • Control Protocol: DMX, RDM
    • DMX Channels: 3, 5, 7, 10, 12, 13 or 15
    • Modes/Personalities: 8 personalities (HSV, 3CH, 5CH, 7CH, 10CH, 12CH, 13CH, 15CH)
    Electrical
    • Input Voltage: 100 to 240VAC, 50/60Hz (auto-ranging)
    • Power and Current: 44W, 0.357 A @ 120V, 60Hz
    • Power and Current: 28W, 0.130 A @ 208V, 60Hz
    • Power and Current: 29W, 0.121 A @ 230V, 50Hz
    Certifications/Qualifications
    • Certifications: CE, MET
    • IP Rating: IP20, dry location
    What's Included
    • Ovation F-55FC
    • Gel Frame
    Optional Accessories (all sold separately)
    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Neutrik powerCON cables
    • 5-pin DMX Cables
