Fostex

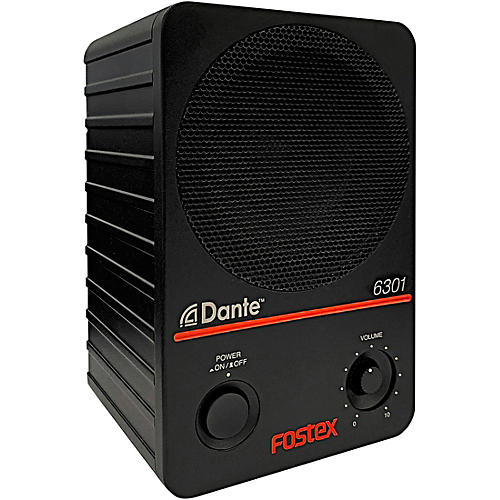

Fostex 6301DT 4" Powered Studio Monitor with DANTE

SKU #L77456000000000
399.99 $399.99
OR
Special Financing Offer
Special 12-month financing on select brands with your Musician's Friend Platinum card. Valid through 01/03/2021
Get DetailsAbout Special Financing Offers
Loyalty Points Icon
Loyalty Points Icon
Earn 3,200 reward points
($32.00 in credit)
Inventory Msg Check Mark Inventory Msg Exclamation In Checkout Promo Inventory Msg Download Icon
In Stock & Ready to Ship
Most orders placed before noon ET ship same day (except weekends and holidays).
  • Free Shipping
  • Flexible Financing
  • Lowest Price
  • Ships Internationally
Product Warranties Icon Product Warranties Icon

Gold Coverage Protection

Protect your gear

Chevron Right Icon
Overview

A classic model, now with DANTE.

Model 6301-Series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities. Now, Fostex have redesigned the speakers with the latest D-class power amplifier and driver unit featuring energy saving “auto stand-by” function.

The industry standard 6301N Active Monitor series now includes the model Dante version 6301DT. This model has the exact physical dimensions as the current 6301N. The 6301DT offers playing back any two channels of Dante network audio signals.

Features

  • 20W D-class power amplifier for higher output level and less power consumption with no heat sink
  • Dedicated 4-inch full range driver for clear audio reproduction
  • Flat panel design to avoid inadvertent power-off or level change
  • Auto Stand-by mode (compliant to ErP directive) for energy saving
  • RJ45 Dante & 1/4” TS analog inputs
  • Supports sample rates up to 96kHz via Audinate’s Ultimo chip
  • Two channels of monitoring in one monitor: acts as a two-channel device on the Dante network, with a switch on the back panel to select channel 1, 2 or 1+2 (mixed) for output
  • Ultra-rugged die-cast aluminum enclosure
  • Recessed front-panel knob, switch & speaker grille to prevent inadvertent damage in case of a fall
  • Switching power supply accepts 100 V to 240 V AC
  • Physical dimensions identical to the rest of the 6301N series for easy upgrade
  • Optional EB-6301 mounting bracket allows easy surface-mounting at any angle

A studio monitor with DANTE that you'll love having in your production studio. Order your 6301DT studio monitor today.

Specs

6301DT 4" Powered Studio Monitor with DANTE Specifications:

Speaker Section
  • Enclosure type: closed
  • Unit: 4” full range
  • Frequency response: 70 Hz – 15k Hz
  • Sound Pressure Level: 85dB / W (1m)
  • Maximum SPL: 98dB
Amplifier SectionInputs
  • All Models: Connector: 1/4” TS Phone (unbalanced)
  • Input Impedance: 10k ohm or more
  • 6301NX Connector: XLR-3-31 (transformer balanced)
  • Input Impedance: 10k ohm or more
  • 6301NE Connector: XLR-3-31 (electrically balanced)
  • Input Impedance: 10k ohm or more
  • 6301ND Connector: XLR-3-31 (IEC 60958 AES/EBU)
  • Input Impedance: 110 ohm or more
  • 6301DT Connector: RJ45 (Dante)
Output (Thru)
  • 6301ND Connector: XLR-3-32 (IEC 60958 AES/EBU)
  • Rated output: 20W
  • Distortion (T.H.D.): 0.05% (1kHz / 1W output)
  • Residual Noise: -70dBV or less (NB/NE/NX). -65dBV (DT)
  • -65dBV or less (ND)
  • Input Sensitivity: 1/4” TS phone: -14dBV (0.2Vr.m.s.)
  • XLR: +4dBu (1.2Vr.m.s.)
  • XLR(Digital): -12dBFS
  • Auto Stand-by: active after approx. 25 min. of continuous input lower than the threshold level
General
  • Dimensions: 4.72" (W) x 7.44" (H) x 4.72 (D)
  • Weight NB/NE/ND: 4.85 lbs
  • Weight NX/DT: 5 lbs
  • Power Requirement: AC 100 – 240V (50/60Hz)
  • Power Consumption: 10W (less than 0.5W in stand-by mode)
