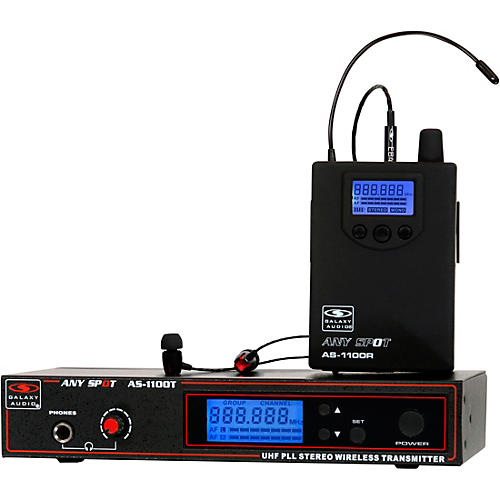

Galaxy Audio AS-1100 UHF Wireless Personal Monitor
- Write a Review
- H68371 000001000 H68371000001000
- Free Shipping (48 Contiguous U.S. States)
As part of the 2nd generation of Galaxy Audio's Any Spot UHF Wireless Peronal Monitors, the AS-1100 features a new technology and design. Wireless Pe...Click To Read More About This Product
6-Month* financing available.
Allows you to move freely around the stage or audience and continue to hear the monitor mix.
As part of the 2nd generation of Galaxy Audio's Any Spot UHF Wireless Peronal Monitors, the AS-1100 features a new technology and design. Wireless Personal Monitors are effective at eliminating stage noise, protecting users' ears from damage, allowing the user to move around the stage or audience and continue to hear while eliminating feedback.
The AS-1100 is easy to use and replaces floor wedges and the amplifiers that power them. Simply plug the AS-1100 into a 'monitor out' jack on the mixing console, create the desired mix, and it's ready to deliver quality sound. It has 120 selectable UHF frequencies to help locate the best and clearest signal to transmit.
The included AS-1100T transmitter is selectable to either mono or stereo. The AS-1100T has two XLR/1/4" combo jack for its inputs, stereo/mono switch, headphone output, volume control, and LCD display. The transmitter includes a single rackmount kit, for mounting 1 unit in one rack space. A rack tray is available for mounting two transmitters side by side in one rack space. This system operates within the D range of 584-607 MhZ.
The included AS-1100R receiver features a 100mw headphone amplifier with a standard 3.5mm (1/8") headphone output. The AS-1100R is sure to be plenty loud for any environment. The receiver has a built in limiter and LCD display.
The Any Spot Series of Wireless Personal Monitors is a great alternative for performers who are tired of lugging around heavy and bulky floor monitors and tired of leaving a gig with ringing ear.
Consumer Alert:Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.
Transmitter and Bodypack Receiver
120 selectable channels (within the D range: 584-607 MhZ)
Transmits in stereo or mono
Light Up LCD display
Channel number and frequency
120 selectable channels
XLR/¼" combo input
AF L/R indicator
LCD display with backlight
Headphone output Volume control
4-bar battery life indicator
RF and AF indicator
100 mW headphone oOutput
2 AA batteries
Ideal for anyone looking for their first system or wanting to upgrade to the next level. Order now!
Frequency Range and Transmitter Output Level Band: UHF
Frequency Range: 584-607 MHZ (Code D)
Transmitter Output Level: 10dBm
Operating Range Under Typical Conditions 300' (92m)
Note: actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response: +/-3dB 60Hz16KHz
Total Harmonic Distortion: +/-30KHz deviation 1KHz tone <1%
Dynamic Range: >90dB A-weighted
Operating Temperature: Range 14oF to 122oF (-10 Co to +50 Co)
Note: battery characteristics may limit this range
Max. Audio input level: +6dBV
Gain Adjustment Range: 40dB
Input Impedance: 100KHz
Dimensions (HxWxD): 1.5" x 8.3" x 3.78" (38mm x 212mm x 96mm)
Weight: 21oz. (605g)
Power Requirements: 12-18V DC at 300mA supplied by external power supply
XLR input: Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Audio Output Level: 100mW
Sensitivity: -94dBm for 30dB
Image Rejection: >55dB
Dimensions (HxWxD): 3.74" x 2.6" x 1" (95mm x 65mm W x 25mm)
Weight: 3.5oz (100g) without batteries
Power Requirements: 2 (AA) size alkaline or rechargeable batteries
Battery Life: About 5 hours
