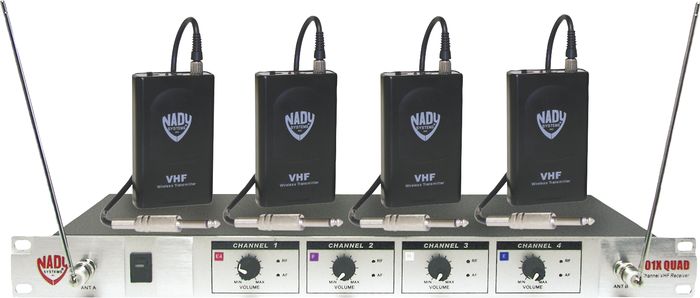

Nady 401X Quad WGT VHF Wireless Guitar System Set A

SKU
277409 000078000
Want to customize your own bundle?
Call A Gear Advisor:  800-449-9128
Product Price $239.99
OR
Special Financing Offer
Musician's Friend Platinum Card

Special 6-month financing. Valid through 12/31/2019
*Get DetailsAbout Special Financing Offers Opens in new window

  • Free Shipping (48 Contiguous U.S. States)

Designed for all professional applications, the amazingly affordable Nady 401X Quad offers unsurpassed high end RF and audio, enhanced,full-featured ...Click To Read More About This Product

Order Now! Expected to Ship 12-11-2019
Order to reserve yours today - No charge until it ships
Gold Coverage: (What’s This?)
    Warranty Options
  Reserve Now
Notify Me When This is in Stock
Add to Wish List
Set Alerts
Earn Points

Earn up to 1,920 reward points.

OVERVIEW

Go wireless and let your music get tripped out not tripped up.

Designed for all professional applications, the amazingly affordable Nady 401X Quad offers unsurpassed high end RF and audio, enhanced,full-featured operation, and rackmount convenience.

Consumer Alert:

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.

FEATURES
General:
  • Four independent VHF receivers in one convenient, rugged, all-metal single rack space housing makes operating 4 wireless systems at the same time easier than ever
  • Front dual antenna jacks for either onboard or remote antennas
  • Front panel Power ON/OFF switch, plus Power ON LED, TX ON and AF signal level LED displays
  • Noise-free transmitter ON/OFF operation
  • Rear panel individual XLR Output jacks, volume and RF mute controls for each of the 4 channels, and 4-Channels-Mixed AF Out 1/4" phone jack
  • High performance”unmatched transparent audio with 120 dB dynamic range and up to 250+ feet optimum line-of-sight operation
WGT-15 Bodypack Transmitter:
  • OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"
  • Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert
  • Locking 3.5mm mini-jack provides secure connection for removable microphone or
  • instrument cable
  • Easily accessible input level adjust control for optimum sound
SPECIFICATIONS
401X Quad overall system performance
  • Frequency Response: 30-18KHz (-3dB)
  • Dynamic Range 120dB: (20-20KHz)
  • Total Harmonic Distortion: <0.5% (typical)
    RF Carrier Frequency Range: 170-230MHz (Factory installed Channels)
  • Frequency Stability: +/- 0.005%, crystal controlled
  • Modulation FM (F3E): +/-15KHz nor,+/-30KHz max
  • Operating Range: 250 feet typical”up to 500+ feet optimum line-of-sight
Frequency Group 1
  • Channel A = 171.905 MHz
  • Channel B = 185.15 MHz
  • Channel D = 209.150 MHz
  • Channel N = 197.150 MHz
Frequency Group 2
  • Channel E4 = 173.8 MHz
  • Channel H = 191.3 MHz
  • Channel F = 203.4 MHz
  • Channel E = 215.2 MHz
WGT-15 Bodypack Transmitter:
  • Audio Inputs: 3.5mm mono locking jack for connecting to instrument
  • cable
  • Controls: OFF/STANDBY/ON switch, input level adjust
  • LED Indicators: Unit "ON" (single flash), Low Battery Alert (steady)
  • RF Power Out: 50mW (Max. allowed by FCC)
  • Harmonic & Spurious Emissions: <-40dB
    Battery: 9V Alkaline
  • Battery Life: Up to 20 hours
  • Dimensions: 4.1" X 2.4"X 0.8" (10.4 X 6.1 X 2.0 cm)
  • Weight (w/o battery):3.6 oz (101 g)
401X Quad receiver
  • Controls; Power ON/OFF, volume control, mute control
  • Connectors:
  • 1 unbalanced adjustable mixed (all four channel)
  • 1/4" T-S audio output jack. Line level, 600 ohms
  • 4 balanced fixed level XLR. #1=GND, #2-3=signals
  • Line/Mic level, 11k/600 ohms
  • Receiver: 2.1 mm barrel-type DC input jack (tip=positive)
  • LED Indicators: 1Power ON LED, 4 AF LED, 4 TX ON LED
  • Dimensions: 1.75"x 7.5"x 16.5"(4.4 x 19 x 42 cm)
  • Weight: 4.5 lbs (2 Kg)
  • Power Requirements: 16V @ 800mA, nominal, AC/DC adapter supplied
  • Antenna Connectors: Dual female BNC connectors
