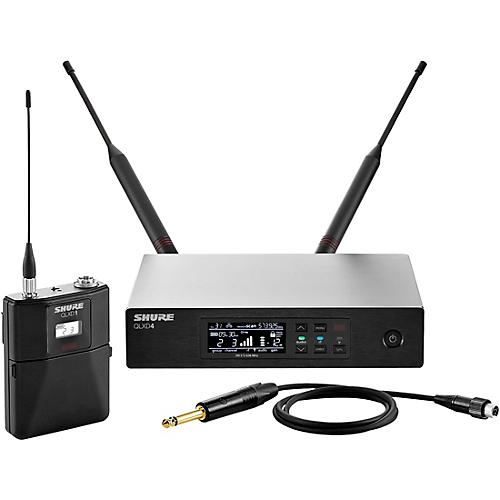

Shure QLX-D14 Wireless System with QLXD1 Bodypack and QLXD4 Receiver Band H50

SKU #L77339000003000
973.0 $973.00
21 $21.00/month^ for 48 months
0% interest for 48 months* through 12/6/2020 with Musician's Friend Platinum card. 48 equal monthly payments required. ^*
Get DetailsAbout Special Financing Offers
Loyalty Points Icon
Loyalty Points Icon
Earn 7,784 reward points
($77.84 in credit)
Inventory Msg Check Mark Inventory Msg Exclamation In Checkout Promo Inventory Msg Download Icon
Order Now!
Order to reserve yours today - No charge until it ships
  • Free Shipping
  • Flexible Financing
  • Lowest Price
Product Warranties Icon Product Warranties Icon

Gold Coverage Protection

Protect your gear

Chevron Right Icon

Detailed wireless audio, flexible for most venues.

The Shure QLX-D14 Digital Wireless System is the clear choice for exceptionally detailed wireless audio in widely diverse and demanding environments. A highly flexible system featuring streamlined setup and operation, QLX-D boasts impressive RF efficiency to get more channels on air using less spectrum. The rugged all-metal construction withstands the rigors of constant use. From corporate seminars to music clubs, classroom lectures to houses of worship, Shure QLX-D14 Digital Wireless has it covered — delivering confident performance, no matter what the venue.


QLXD1 Bodypack Transmitter
  • Rugged metal construction
  • Backlit LCD with easy to navigate menu and controls
  • 2 x AA batteries provide up to 9 hours of runtime
  • Optional Shure SB900 lithium-ion rechargeable battery provides up to 10 hours of runtime
  • External charging contacts for docked charging
  • Multiple microphone cartridges available, including the legendary SM58 (QLXD2)
QLXD4 Receiver
  • Transparent, 24-bit digital audio
  • 20 Hz – 20 kHz frequency range
  • 120 dB dynamic range
  • 64/72 MHz overall tuning bandwidth
  • 17 compatible channels per 6 MHz TV channel
  • More than 60 pre-set compatible channels per frequency band
  • AES 256-bit encryption
  • Ethernet networkable receivers
  • Network Scan finds clean frequencies for networked receivers
  • AMX/Crestron control system ready
  • ShurePlus Channels mobile app compatible
  • Wireless Workbench control software compatible

Order your QLX-D14 wireless system today.


QLX-D14 Wireless System with QLXD1 Bodypack and QLXD4 Receiver Specifications:

  • RF Carrier Frequency Range: 470–937.5 MHz, varies by region
  • Image Rejection: >70 dB, typical
  • Latency: <2.9 ms
  • RF Sensitivity: -97 dBm at 10-5 BER
  • Working Range: 100 m (328 ft.) line-of-sight (Note: Actual range depends on RF signal absorption, reflection and interference)
  • Audio Frequency Range: 20 Hz to 20 kHz (Note: Dependent on microphone type)
  • Audio Dynamic Range (System Gain @ +10): >120 dB, A-weighted, typical
  • Total Harmonic Distortion: <0.1% (−12 dBFS input, System Gain @ +10)
  • Operating Temperature Range: -18°C (0°F) to 50°C (122°F) (Note: Battery characteristics may limit this range)
QLXD4 Receiver
  • Dimensions: 1.63 in. x 7.75 in. x 5.94 in.
  • Weight: 1.71 lbs., without antennas
  • Housing: Steel
  • Power Requirements: 12 V DC @ 0.4 A, supplied by external power supply (tip positive)
  • Spurious Rejection: > 80 dB, typical
  • Antenna Connector Type: BNC
  • Antenna Impedance: 50 Ω
  • Gain Adjustment Range: -18 to +42 dB (in 1 dB steps)
  • Configuration: 1⁄4" (6.35 mm): Impedance balanced (Tip = audio, Ring = no audio, Sleeve = ground ) XLR: balanced (1= ground, 2 = audio +, 3 = audio −)
  • Antenna Impedance: 1⁄4" (6.35 mm): 100 Ω (50 Ω Unbalanced); XLR: 100 Ω
  • Full Scale Output: 1⁄4" (6.35 mm): +12 dBV; XLR: LINE setting = +18 dBV, MIC setting = -12 dBV
  • Mic/Line Switch: 30 dB pad
  • Network Interface: Single Port Ethernet 10/100 Mbps
  • Network Addressing Capability: DHCP or Manual IP address
QLXD1 Bodypack Transmitter
  • Dimensions: 3.38 in. x 2.57 in. x 0.92 in., without antenna
  • Weight: 4.9 oz., without batteries
  • Housing: Cast aluminum
  • Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
  • Battery Runtime: (@ 10 mW) Shure SB900 rechargeable: up to 10 hours; alkaline: up to 9 hours
  • RF Output Power: 1 mW or 10 mW
  • Occupied Bandwidth: < 200 kHz
  • Modulation Type: Shure proprietary digital
  • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
