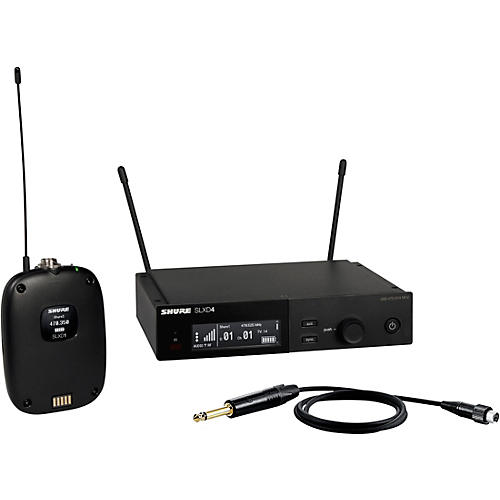

SLXD14 Combo System with SLXD1 Bodypack and SLXD4 Receiver Specifications:

• Line of Sight: 100 m (300')  (Note: Actual range depends on RF signal absorption, reflection and interference.)

• 45Hz–15kHz (Note: Dependent on microphone type)

• Ref. ±38 kHz deviation with 1 kHz tone, <0.5%, typical

• >100 dB, A-weighted

• -18°C (0°F) to +50°C (122°F) (Note: Battery characteristics may limit this range.)

• Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4" output

• Gain position
• mic: −10 dBV maximum
• 0dB: +10 dBV maximum
• –10dB: +20 dBV maximum

• 30dB

• 1 mohm

• 10–30 mW (varies by region)

• TA4M:
• 1: ground (cable shield)
• 2: + 5 V Bias
• 3: audio
• 4: Tied through active load to ground (On instrument adapter cable, pin 4 floats)

• 108 mm x 64 mm x 19 mm

• 81 g (3 oz.), without batteries

• Galvanized steel

• 2 "AA" size alkaline or rechargeable batteries

• Up to 8 hours (alkaline)

• 42 mm x 197 mm x 134 mm

• 1 lb. 13 oz.

• Galvanized steel

• –105dBm for 12dB SINAD, typical

• 12–18V DC @ 150 mA, supplied by external power supply (tip positive)

• Impedance balanced

• Ref. ±38kHz deviation with 1kHz tone

• –13 dBV (into 600 ohm load), 6.35 mm (1/4")

• –2 dBV (into 3 kohm load)

• XLR connector: 200 ohm, 6.35 mm (1/4")

• XLR connector: 1=ground, 2=audio, 3=no audio

• Tip=audio, Ring=no audio, Sleeve=ground

• >70dB, typical

• 0dB to –25dB
